TDK 47 nF Multilayer Ceramic Capacitor 250V dc ±10 % Surface Mount X7T Dielectric CGA4J3X7T2E473K125AE

Free Delivery in India | Lowest Global Shipping Charges

TDK 47 nF Multilayer Ceramic Capacitor 250V dc ±10 % Surface Mount X7T Dielectric CGA4J3X7T2E473K125AE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	250V dc
Brand	TDK
Height	1.25mm
Length	2mm
Model	CGA4J3X7T2E473K125AE
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	47nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	X7T
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Featuring a X7T dielectric material with ±10 % tolerance.

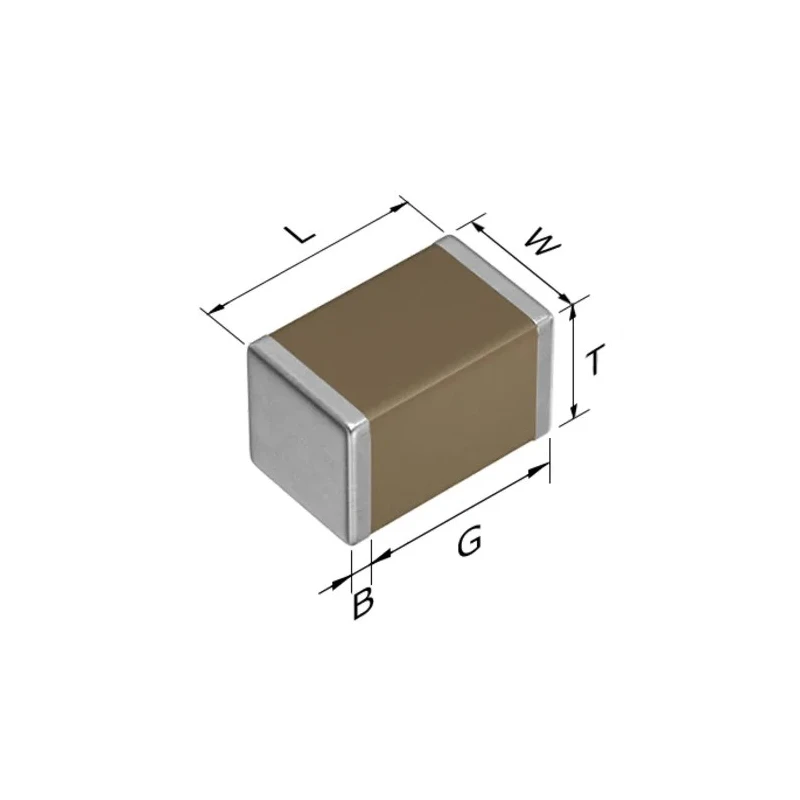

Compact 0805 package size with dimensions 2 mm x 1.25 mm x 1.25 mm.
High mechanical endurance due to flexible soft termination design.
Operating temperature range from -55°C to 125°C.
Complies with automotive standard AEC-Q200 for reliability.
Suitable for fail-safe design in battery lines and prevention of solder and ceramic body cracks.
Packaged in tape & reel format for automated assembly processes.
Manufactured in Japan ensuring premium quality standards.

Product Description

TDK CGA4J3X7T2E473K125AE is a multilayer ceramic capacitor featuring a capacitance of 47 nF and rated for 250V DC operation. This surface mount device utilizes the X7T dielectric type offering stable performance with ±10 % tolerance over a broad temperature range from -55°C to 125°C. The compact 0805 package format with dimensions 2 mm length, 1.25 mm width, and 1.25 mm height makes it suitable for high-density PCB assembly.

This capacitor is part of TDK's CGA series, designed with soft termination technology that includes conductive resin layers in the terminations. This construction delivers higher mechanical endurance by absorbing thermal and mechanical stresses, enhancing reliability under harsh conditions. The product complies with the automotive standard AEC-Q200, making it ideal for automotive and industrial electronics applications.

Typical applications include fail-safe designs in battery lines, effective prevention of ceramic body cracks caused by board flexing, and failure prevention in solder joints from thermal shock. Its class II suppression classification suits a wide range of filtering and decoupling uses in electronic circuits. The device is supplied in tape and reel packaging facilitating automated surface-mount technology (SMT) assembly.

Featuring a X7T dielectric material with ±10 % tolerance. Compact 0805 package size with dimensions 2 mm x 1.25 mm x 1.25 mm. Soft termination design enhances mechanical endurance. Automotive AEC-Q200 compliant for high reliability.

Operating temperature range from -55°C to 125°C for versatile uses. Ideal for fail-safe battery line circuits and thermal shock prevention. Supplied in tape & reel format compatible with SMT assembly. Manufactured in Japan with high quality standards.

Ideal for industrial, automotive, electronics manufacturing and repair, and other applications requiring robust Multilayer Ceramic Capacitors. Explore more TDK MLCCs and related electronic components in the Electronics Components category at EnvMart.
