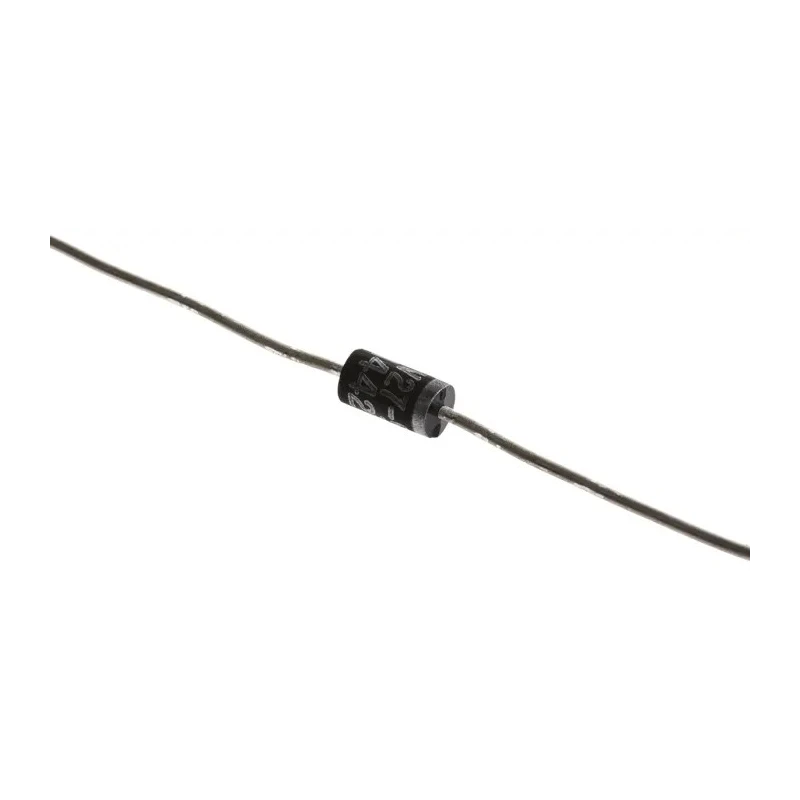

Vishay 50 V 2 A Soft Recovery Diode, 2-Pin DO-15 SBYV27-50-E3/54

The Vishay SBYV27-50-E3/54 is a high-performance soft recovery diode with a maximum continuous forward current of 2 amperes and a peak reverse repetitive voltage of 50 volts. Packaged in a 2-pin DO-15 through-hole configuration, this device is optimized for ultrafast switching with a reverse recovery time of 15 nanoseconds, making it ideal for high frequency rectification and freewheeling in switching converters and inverters.

The diode features a glass-passivated chip junction that delivers reliable, consistent electrical characteristics. The low forward voltage drop of approximately 1.07 volts reduces power loss during operation, enhancing overall system efficiency. The device also supports high forward surge currents up to 50 amperes, providing robustness for transient conditions.

Constructed with a DO-201AD moulding compound meeting UL 94 V-0 flammability standards and matte tin-plated leads, the diode ensures excellent solderability and longevity in harsh industrial environments. The color band marking facilitates correct polarity installation. Operating temperature ranges from -55 °C to 150 °C, making it suitable for various industrial and commercial electronics applications.

This diode is RoHS-compliant as a commercial-grade part and meets JESD standards for whisker testing and solderability. Typical applications include consumer electronics, computer power supplies, telecommunications equipment, and other high frequency power conversion systems.

Glass passivated chip junction for reliable performance. Ultrafast reverse recovery time of 15 nanoseconds. Low forward voltage drop of 1.07 volts enhances efficiency. High forward surge capability up to 50 A peak. Solder dip rated at 275 °C max for 10 seconds.

Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 standards. DO-15 package with 7.6 mm length, 3.6 mm diameter, and 2 pins. Wide ambient operating range from -55 °C to 150 °C. Color band denotes cathode end for polarity identification.

RoHS compliant, commercial grade with UL 94 V-0 moulding compound.

The Vishay SBYV27-50-E3/54 diode is an excellent solution for industries demanding fast switching, low loss diodes in power supply and signal conditioning roles. It supports applications in industrial equipment, telecommunication systems, computer power supplies, and renewable energy converters. Browse more semiconductor and diode products from Vishay and other trusted brands at EnvMart.
