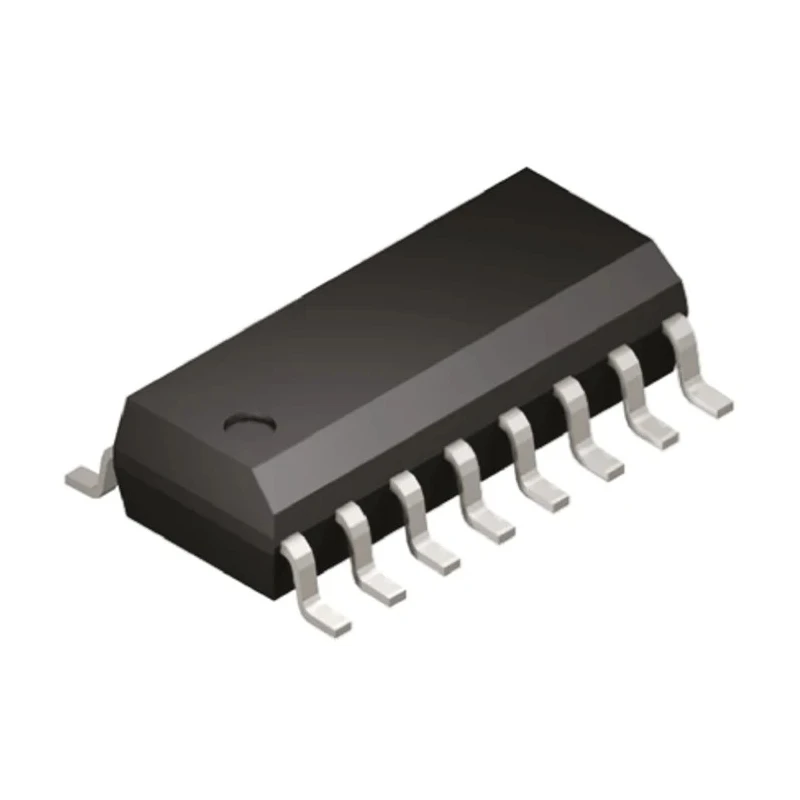

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG412DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG412DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG412 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
Key Features
- The device is fabricated using CMOS technology providing low power consumption.
- Contains four single-pole single-throw (SPST) switches on one chip for multiplexing and switching.
- Operates with a minimum supply voltage of 5 V and maximum supply voltage of 44 V.
- Features a maximum on-state resistance of 100 ohms ensuring signal integrity.
- Suitable for surface mounting due to the SOIC package type.
- Can operate under temperatures from -40°C up to 85°C, ideal for industrial use.
- Compact dimensions with 16-pin configuration sized at 10 mm length and 4 mm width.
- Output compatible with CMOS/TTL logic families enabling broad compatibility.
Product Description
Vishay DG412DY-E3 is a high-precision analogue switch featuring 4 CMOS Quad SPST configuration in a compact 16-pin SOIC package. Designed for low power consumption and high accuracy, it suits numerous electronic applications including test equipment, computer peripherals, and portable instruments.
This CMOS logic IC operates with a supply voltage range of 5 V minimum up to 44 V maximum and delivers a maximum on-state resistance of 100 ohms for efficient switching performance. The device supports surface mount technology with a small form factor (1.55 mm height, 10 mm length, and 4 mm width), making it suitable for compact circuit designs.
The temperature range of -40°C to 85°C ensures reliable operation in industrial and commercial environments. The output compatibility with CMOS and TTL families allows easy integration with diverse digital logic circuits.
Applications include multiplexers/demultiplexers in instrumentation, signal routing, and switching for automated testing systems. The DG412 series by Vishay Semiconductor makes this product ideal for industrial, laboratory, and electronic manufacturing sectors.
Key features include low power CMOS technology, four independent switches per chip, and compact SOIC packaging for surface mounting. The device encompasses four SPST switches on a single chip for complex signal multiplexing.
Low on-state resistance enhances signal quality during switching operations. Robust thermal tolerance supports harsh industrial conditions. Compatible with both CMOS and TTL logic levels for versatile circuit implementation.
Compact SOIC form factor simplifies PCB layout and assembly.
Choose Vishay DG412DY-E3 for reliable analogue switching with efficient power consumption suitable for broad electronics applications. Explore more Vishay semiconductor products and accessories on EnvMart to enhance your electronic designs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Vishay DG412DY-E3 is 44 V.
It features a maximum on-state resistance of 100 ohms, ensuring good signal integrity during switching operations.
This unit can operate under temperatures ranging from -40°C to 85°C, making it suitable for industrial applications.
The device comes in a 16-pin SOIC package type, which is suitable for surface mounting.
This model integrates four single-pole single-throw (SPST) switches on one chip.
The output of this analogue switch is compatible with both CMOS and TTL logic families, allowing for broad integration possibilities.
The dimensions of this model are 10 mm in length, 4 mm in width, and 1.55 mm in height.
The minimum supply voltage required for the Vishay DG412DY-E3 to operate is 5 V.
This device is suitable for applications such as multiplexers, demultiplexers, instrumentation, signal routing, and automated testing systems.
The configuration of the switches in this device is Quad SPST, allowing for complex signal multiplexing.
The country of origin for this product is India.
This model belongs to the DG412 series by Vishay.
