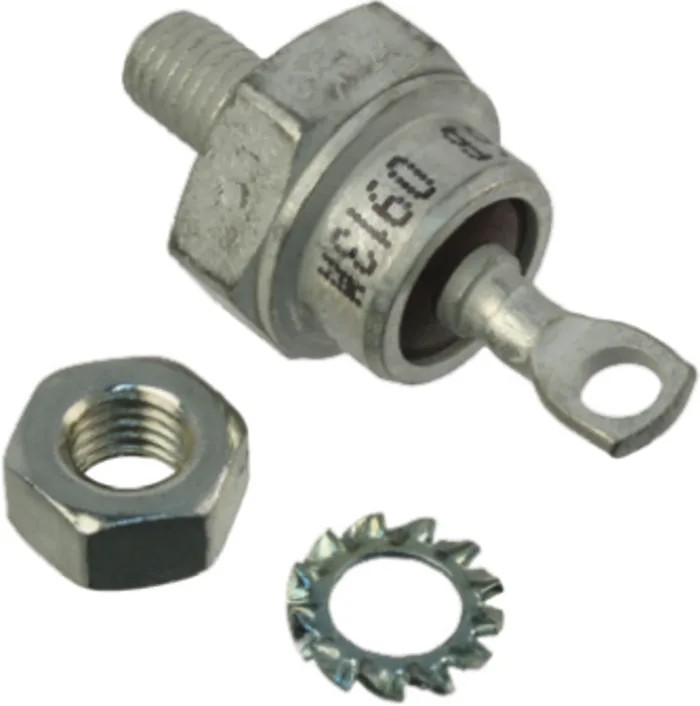

Vishay 1000 V 35 A General Purpose Screw Mount Stud Cathode Diode 2-Pin DO-5 VS-1N3768
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-1N3768 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | 1N |
| Maximum Operating Temperature | 190°C |
| Package Type | DO-5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS Directive 2002/95/EC |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 860A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Designed for high efficiency and reliability in power applications.
- Screw mount type ensures secure installation and excellent heat dissipation.
- Stud cathode configuration improves connectivity and mechanical strength.
- Operates within temperature range from -65°C to 190°C for versatile usage.
- Standard recovery rectifier suitable for various industry-standard applications.
- Peak non-repetitive forward surge current of 860 A supports transient overload conditions.
- Maximum forward voltage of 1.8 V minimizes power losses.
- Compliance with RoHS Directive 2002/95/EC ensures environmental safety.
Product Description
Vishay VS-1N3768 is a high-performance general purpose diode featuring a maximum peak reverse repetitive voltage of 1000 V and a maximum continuous forward current of 35 A. Packaged in an industry-standard 2-pin DO-5 screw mount case, this diode offers a stud cathode configuration that enhances mechanical robustness and thermal management. It operates reliably in harsh environments with a wide operating temperature range from -65°C up to 190°C.
This diode is optimized for use as a standard recovery rectifier, delivering high efficiency and reliable performance in power electronics, industrial motor drives, power converters, and other demanding electrical and electronic applications. With a peak non-repetitive forward surge current rating of 860 A, it withstands transient overloads effectively.
The maximum forward voltage drop is 1.8 V, contributing to reduced conduction losses and improved system efficiency. The compact dimensions (approximate height 22.9 mm, length 20.02 mm, diameter 17.4 mm, and width 17.35 mm) allow easy integration into circuit designs requiring robust diodes.
Compliant with RoHS Directive 2002/95/EC, the VS-1N3768 Diode meets environmental standards for hazardous substance restrictions. It is particularly suited for applications in electronic components, power and connectors, semiconductor discrete parts, and within fields such as industrial automation, power supply design, and electrical engineering manufacturing.
Designed for high efficiency and reliability in power applications. Screw mount type ensures secure installation and excellent heat dissipation. Stud cathode configuration improves connectivity and mechanical strength. Operates within temperature range from -65°C to 190°C for versatile usage.
Standard recovery rectifier suitable for various industry-standard applications. Peak non-repetitive forward surge current of 860 A supports transient overload conditions. Maximum forward voltage of 1.8 V minimizes power losses.
Compliance with RoHS Directive 2002/95/EC ensures environmental safety. Compact physical dimensions facilitate integration in constrained spaces. Explore Vishay products and similar semiconductor components for your industrial, laboratory, and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage of the Vishay VS-1N3768 diode is 1000 V.
This model has a maximum continuous forward current rating of 35 A.
It operates within a temperature range from -65°C to 190°C.
The maximum forward voltage drop for the VS-1N3768 is 1.8 V.
This diode uses a screw mount type for secure installation.
The diode features a stud cathode configuration, which enhances mechanical strength and connectivity.
The peak non-repetitive forward surge current rating is 860 A.
The approximate dimensions are height 22.9 mm, length 20.02 mm, diameter 17.4 mm, and width 17.35 mm.
It is a general purpose standard recovery rectifier suitable for various applications.
Yes, it is compliant with the RoHS Directive 2002/95/EC, ensuring it meets environmental safety standards.
The peak reverse current rating is 10 mA.
The diode is manufactured in India.
