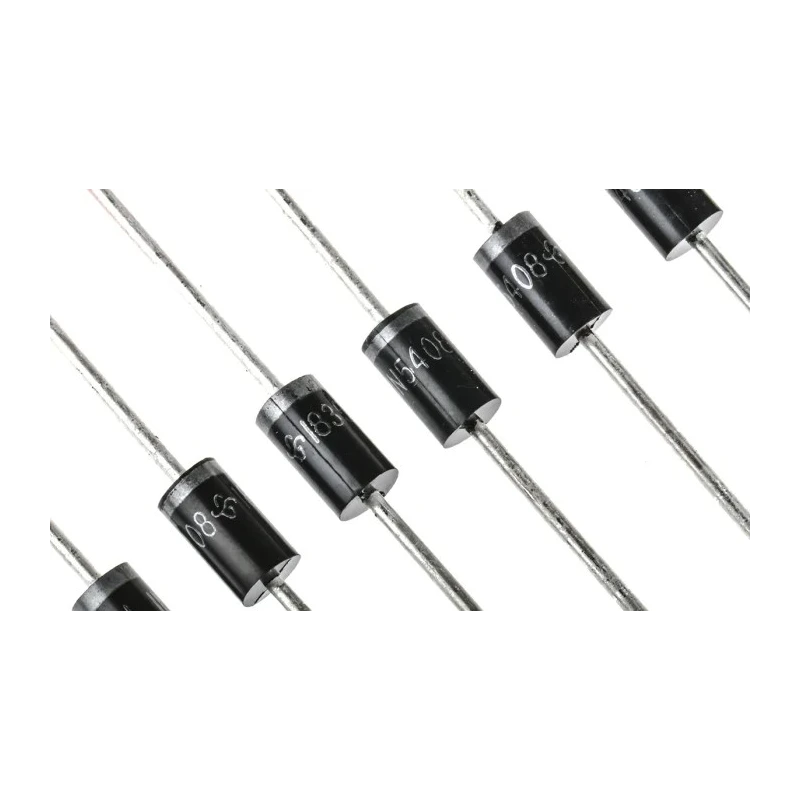

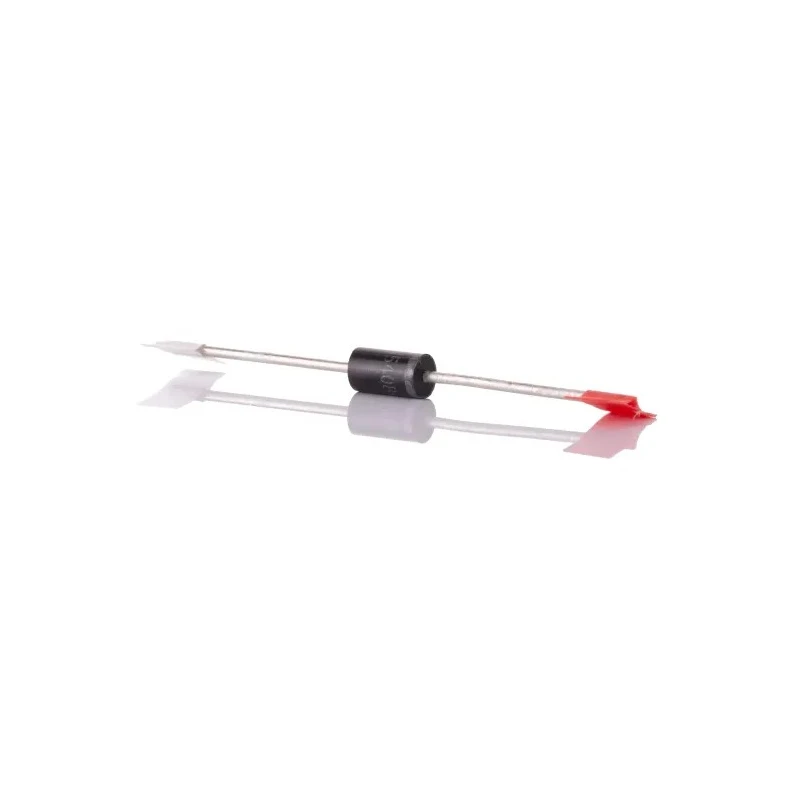

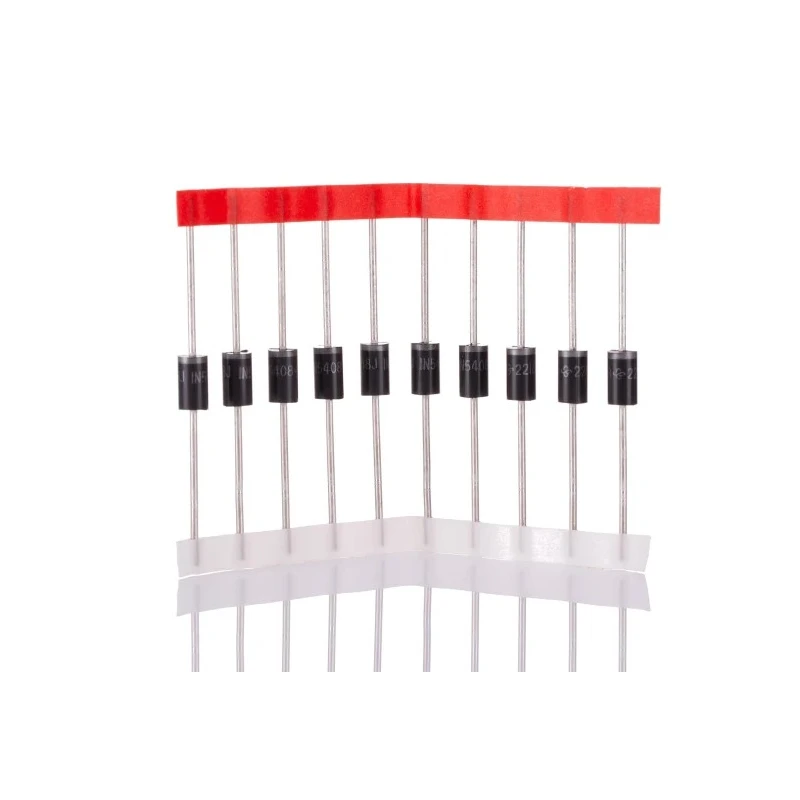

Vishay 1 kV 3 A General Purpose Diode 2-Pin DO-201AD 1N5408-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 9.5mm |
| Length | 9.5mm |
| Model | 1N5408-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5408 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 1000V 3A, Silicon Junction Diode, 2-Pin DO-201AD 1N5408Brand | Vishay |
| onsemi 1000V 3A, Diode, 2-Pin DO-201AD 1N5408Brand | ON Semiconductor |
Key Features
- Suitable for through-hole mounting with DO-201AD package design.
- Maximum continuous forward current is 3 amperes.
- Peak reverse repetitive voltage rating is 1000 volts.
- Low forward voltage drop of 1.2 volts enhances efficiency.
- Operates reliably in temperature range from -50°C to 150°C.
- Handles peak non-repetitive forward surge currents up to 200 amperes.
- Features moulded epoxy body with matte tin plated solderable leads.
- Standard recovery time exceeds 500 nanoseconds.
Product Description
Vishay 1N5408-E3/54 is a high-reliability general purpose diode designed for use in electronic applications requiring robust rectification capability. This diode is housed in a 2-pin DO-201AD package suitable for through-hole mounting, supporting a maximum continuous forward current of 3 amperes and a peak reverse repetitive voltage of 1000 volts.
The component is constructed with a moulded epoxy body providing flame retardant properties compliant with UL94 V-0 standards. The diode offers low forward voltage drop of 1.2 volts and low leakage current for efficient operation. It withstands peak non-repetitive surge currents up to 200 amperes, ensuring durability under transient conditions.
Operating temperature range is wide, from -50°C to 150°C, guaranteeing reliable performance in industrial, commercial, and laboratory environments. The leads are matte tin plated and comply with soldering standards J-STD-002 and JESD 22-B102, allowing for straightforward solder dip processing up to +245 °C.
Suitable for general purpose rectification circuits including converters, inverters, freewheeling diodes, and power supplies. Standard recovery time of over 500 nanoseconds aligns with typical power semiconductor requirements.
Colored band marking clearly indicates cathode terminal for correct orientation. This diode is ideal for industrial and electronic equipment manufacturing, ensuring dependable rectification and protection within various power electronic systems.
Explore more components and semiconductor solutions on EnvMart for reliable sourcing and integration.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 amperes.
It has a peak reverse repetitive voltage rating of 1000 volts.
The operating temperature range is from -50°C to 150°C.
The forward voltage drop is 1.2 volts.
This diode is housed in a DO-201AD package suitable for through-hole mounting.
It can handle peak non-repetitive forward surge currents up to 200 amperes.
The dimensions are 9.5mm in height and length, with a diameter of 5.3mm.
It is classified as a general purpose rectifier.
The standard recovery time exceeds 500 nanoseconds.
It is suitable for general purpose rectification circuits including converters, inverters, and power supplies.
The diode features a moulded epoxy body with flame retardant properties compliant with UL94 V-0 standards.
The leads are matte tin plated and comply with soldering standards J-STD-002 and JESD 22-B102.
