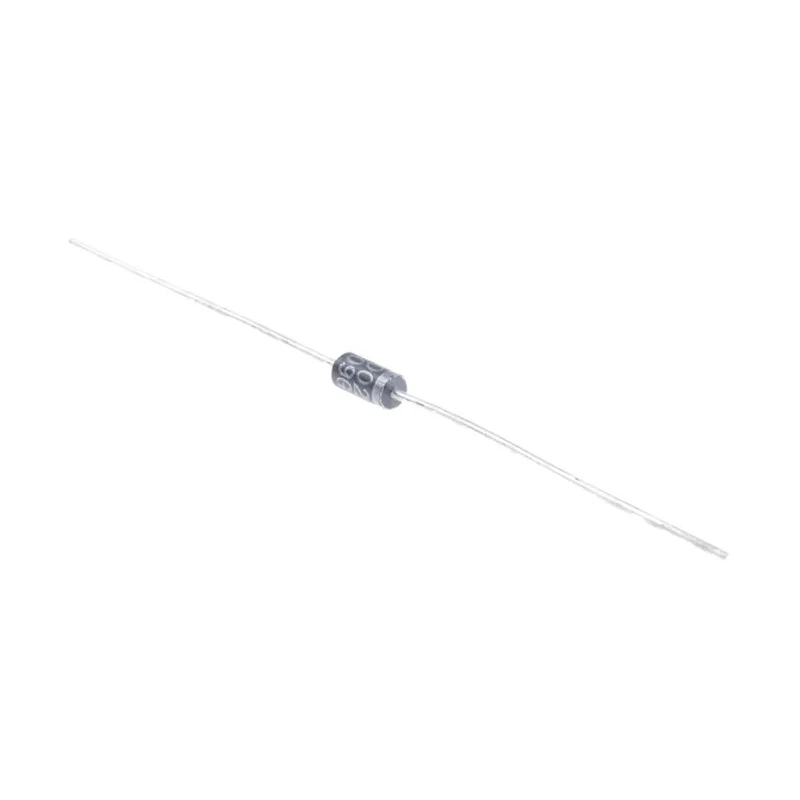

Vishay 100 V 1 A General Purpose Silicon Junction Diode 2-Pin DO-204AL UF4002-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | UF4002-E3/54 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | UFX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
| Vishay 100V 1A, Silicon Junction Diode, 2-Pin DO-204AL UF4002Brand | Vishay |
Key Features
- Through hole mount type for easy PCB insertion.
- DO-204AL package with 2 pins ensures durable electronic connection.
- Maximum continuous forward current of 1 ampere for reliable operation.
- Peak reverse voltage withstand of 100 volts for robust performance.
- Ultrafast recovery with peak reverse recovery time of 50 nanoseconds.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Forward voltage drop maximum of 1 volt to reduce power loss.
- Designed for use in power supplies, inverters, and switching applications.
Product Description
Vishay UF4002-E3/54 is a high-quality general purpose silicon junction diode featuring a 2-pin DO-204AL through hole package. It is rated for a maximum continuous forward current of 1 ampere and can withstand peak reverse repetitive voltages of up to 100 volts. This diode has a low forward voltage of 1 volt and offers ultrafast recovery with a typical reverse recovery time of 50 nanoseconds, making it highly suitable for high frequency switching applications.
The device operates reliably within a wide ambient temperature range from -55°C to 150°C, supporting robust performance in demanding industrial, electronic, and power supply environments. Compact in size with a length of 5.2 mm and diameter of 2.7 mm, it fits standard through hole PCB footprints facilitating easy installation.
This diode is commonly used in switched mode power supplies (SMPS), inverter circuits, freewheeling diode applications, and other power rectification roles. Its single diode configuration and standard DO-204AL package ensure compatibility across a broad range of electronic and electrical semiconductor applications.
Through hole mount type for ease of assembly and replacement. Durable DO-204AL casing suited for general purpose rectification. Rated for 1 amp continuous and 30 amp peak surge currents. Peak reverse voltage tolerance of 100 volts protects circuits.
Fast switching capability improves efficiency of power circuits. Operating temperature range ensures wide environmental adaptability. Low forward voltage drop minimizes energy losses. Compact form factor suits space-constrained designs.
Industrial applications include power supplies, inverters, and SMPS. Explore our extensive semiconductor category for additional complementary components and accessories.
Explore more products in our Schottky Diodes & Rectifiers category.
