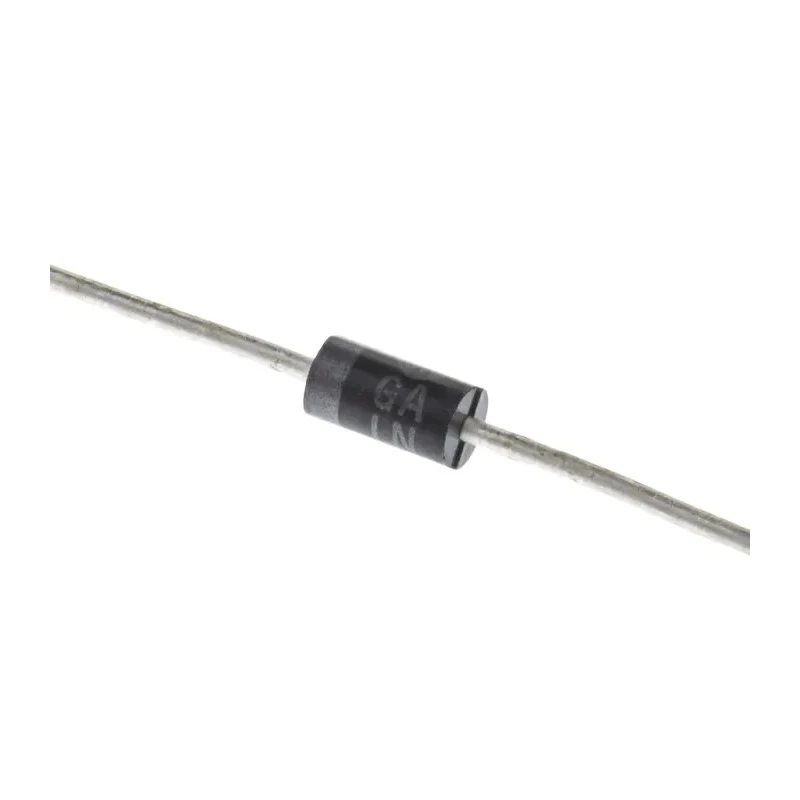

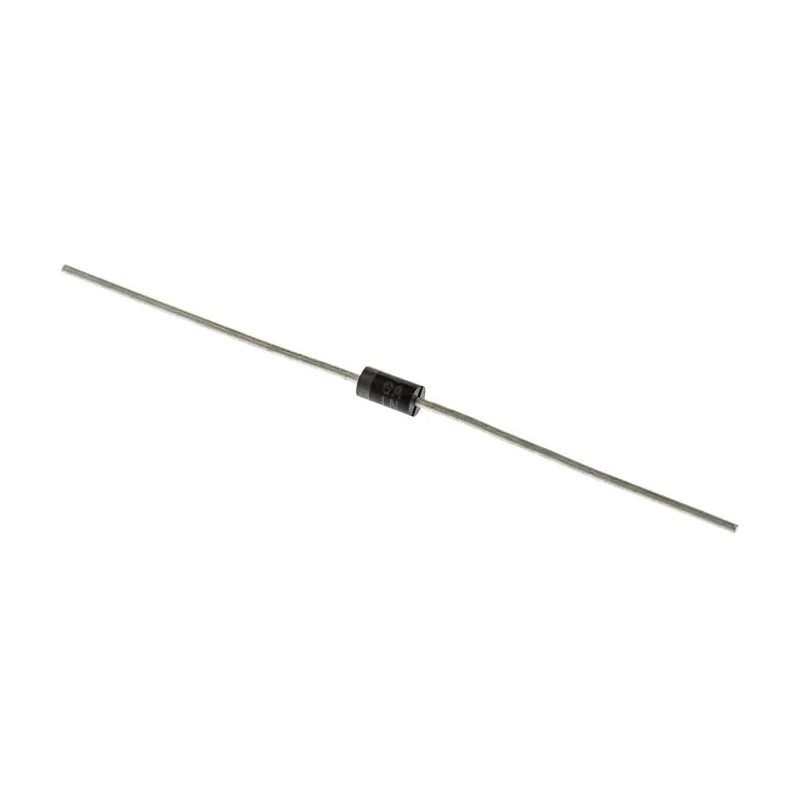

onsemi 20 V 1 A Schottky Diode 2-Pin DO-41 1N5817RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5817RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 gram (approximately) |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5817 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Marking | 1N5817, 1N5818, 1N5819 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 750mV |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 seconds |
| onsemi 20V 1A, Schottky Diode, 2-Pin DO-41 1N5817Brand | ON Semiconductor |
| Taiwan Semiconductor 20 V 1 A Diode Rectifier Diode 2-Pin DO-41 1N5817Brand | Taiwan Semiconductor |
Key Features
- The diode employs the Schottky Barrier principle in a large area metal-to-silicon construction.
- It features epoxy molded case with corrosion resistant external surfaces and solderable terminal leads.
- It supports a maximum continuous forward current of 1 Ampere.
- Its package type is DO-41 with 2 pins and diode configuration is single.
- The maximum forward voltage is 750 mV and peak reverse voltage is 20 V.
- Operating temperature ranges from -65°C to 125°C for reliable performance.
- Peak non-repetitive forward surge current capability is 25 Amperes.
- Its polarity is indicated by a cathode polarity band marking on the diode body.
Product Description
onsemi 1N5817RLG Schottky Diode 2-Pin DO-41 is a semiconductor diode designed for efficient rectification in low-voltage and high-frequency electronic circuits. It operates at a maximum continuous forward current of 1 Ampere and a peak reverse repetitive voltage of 20 Volts.
The diode utilizes the Schottky Barrier principle with chrome barrier metal and epitaxial construction to achieve extremely low forward voltage and fast switching capabilities, making it suitable for use in power inverters, free-wheeling diodes, and polarity protection applications.
The diode comes in a DO-41 package, featuring an epoxy molded case that ensures corrosion resistance and ease of soldering with terminal leads. Its compact dimensions are 5.2mm in length and 2.7mm in diameter and width, with a height of 2.7mm. The device weight is approximately 0.4 grams, making it lightweight and ideal for various compact electronic equipment.
Electrical characteristics include a maximum forward voltage of 750 mV, peak non-repetitive forward surge current of 25 A, and peak reverse current of 1 mA. It is rated to operate reliably within a temperature range from -65°C to 125°C. The diode is Pb-free, ensuring environmental compliance for modern industrial standards.
The cathode side is marked by a polarity band for correct installation and mounting. The device is supplied in plastic bags, typically 1000 per bag, suitable for mass production environments.
The diode uses Schottky barrier technology for majority carrier conduction and low stored charge. The epoxy molded package protects against environmental damage and ensures mechanical robustness. Soldering lead temperature rating is 260°C maximum for 10 seconds.
Effective for use in industrial, electronic component manufacturing, and power conversion equipment. Offers high efficiency with low power loss and fast switching for high-frequency circuits.
This onsemi diode is a reliable choice for electronic engineers seeking a high-quality Schottky rectifier with proven performance characteristics. For more semiconductor devices and components, browse related categories on EnvMart for electronic components and Schottky diodes.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 Ampere.
The peak reverse repetitive voltage rating is 20 Volts.
This model has a length of 5.2 mm, a diameter of 2.7 mm, and a height of 2.7 mm.
The maximum forward voltage drop is 750 mV.
The operating temperature range is from -65°C to 125°C.
The peak non-repetitive forward surge current capability is 25 Amperes.
It comes in a DO-41 package type.
The cathode polarity is indicated by a polarity band marking on the diode body.
The weight of this diode is approximately 0.4 grams.
The lead temperature rating for soldering purposes is a maximum of 260°C for 10 seconds.
This diode employs the Schottky Barrier principle in a large area metal-to-silicon construction.
It is suitable for use in power inverters, free-wheeling diodes, and polarity protection applications.
