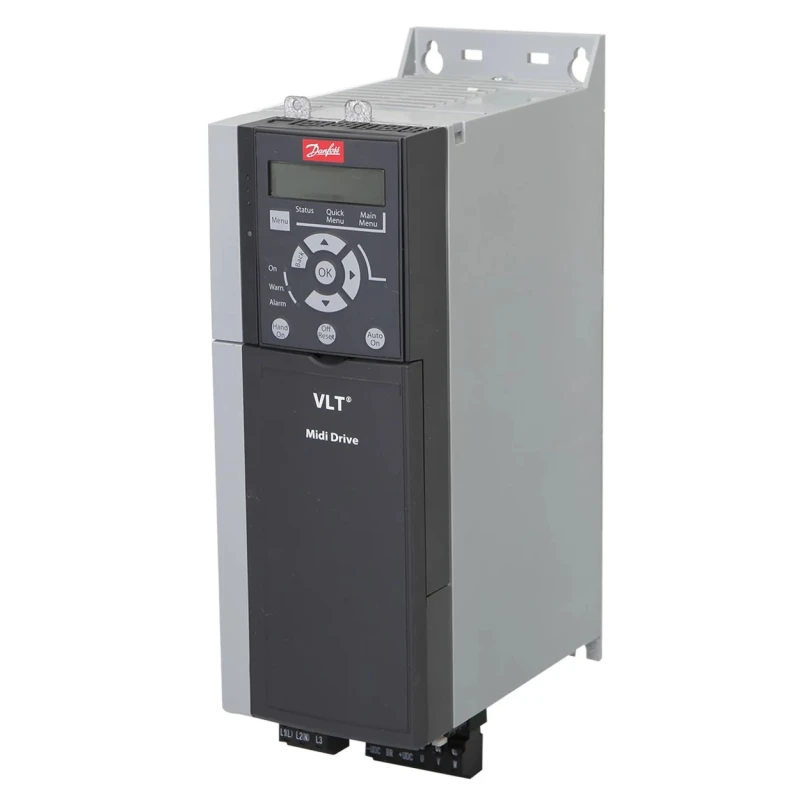

Danfoss Inverter Drive 370 W 3 Phase Variable Frequency Panel Mount FC280 Series
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 370W |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 1.2A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Overall Depth | 210mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- The inverter drive features a compact panel mount design for easy installation.
- Supports variable frequency drive for precise motor speed control.
- Equipped with integrated USB port for easy PC connection.
- Includes multiple fieldbus communication options like Profibus, Profinet, Ethernet/IP, and CANopen.
- Provides dual-channel STO functional safety and an integrated PID controller.
- Suitable for industrial applications with a maximum operating temperature of 55°C.
- Complies with CE, cUL, EMC, RCM, TUV, and UL standards.
- Has an IP20 rating ensuring protection for internal components.
Product Description
Danfoss FC280 Inverter Drive 370 W 3 Phase Variable Frequency Panel Mount provides robust control and energy efficiency for AC drive applications. Designed specifically for induction motors, it delivers a maximum output current of 1.2 A at 400V ac supply voltage, supporting output frequencies up to 500 Hz.
This compact inverter drive, measuring 75 mm in length, 168 mm in width, and 210 mm in depth, offers easy installation and setup without the need for an included control panel. Optional LCD control panel versions can be purchased separately to meet task flexibility needs.
The drive integrates essential features such as an integrated DC choke, RFI filter, and dual-channel Safe Torque Off (STO) functional safety. Its embedded PID controller enhances process control, while the built-in USB port allows straightforward PC connectivity for configuration and diagnostics.
Communication versatility is ensured through multiple fieldbus options, including Profibus, Profinet with dual port, Ethernet/IP with dual port, CANopen, Modbus RTU, and FC Protocol. Programmable digital and analogue inputs/outputs add to its adaptability across diverse industrial environments.
Certified to international standards CE, cUL, EMC, RCM (C-Tick), TUV, and UL, this inverter drive assures reliable and safe operation. The IP20 enclosure rating provides protection for internal electrical components but requires installation in suitably protected environments.
The FC280 series favors sustainability as a Better World product with an energy-saving design that helps reduce operational costs. Optimal for use in manufacturing, HVAC systems, industrial automation, and general purpose motor control scenarios.
The product does not include a control panel; these are sold separately for added flexibility. The drive is built for panel mount installation and wide industrial applications. Explore Danfoss Inverter Drives and other industrial automation solutions on EnvMart for reliable and energy-efficient electric motor control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 370 W.
It has a maximum output current of 1.2 A at a 400V AC supply voltage.
The inverter drive supports output frequencies up to 500 Hz.
It is compatible with induction motors.
The dimensions are 75 mm in length, 168 mm in width, and 210 mm in depth.
The FC280 inverter drive has an IP20 rating, providing protection for internal components.
It includes multiple fieldbus communication options such as Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
The maximum operating temperature is +55°C.
It provides dual-channel Safe Torque Off (STO) functional safety and an integrated PID controller.
No, the drive does not include a control panel; it is sold separately for added flexibility.
It complies with CE, cUL, EMC, RCM (C-Tick), TUV, and UL standards.
This model is designed for panel mount installation.
