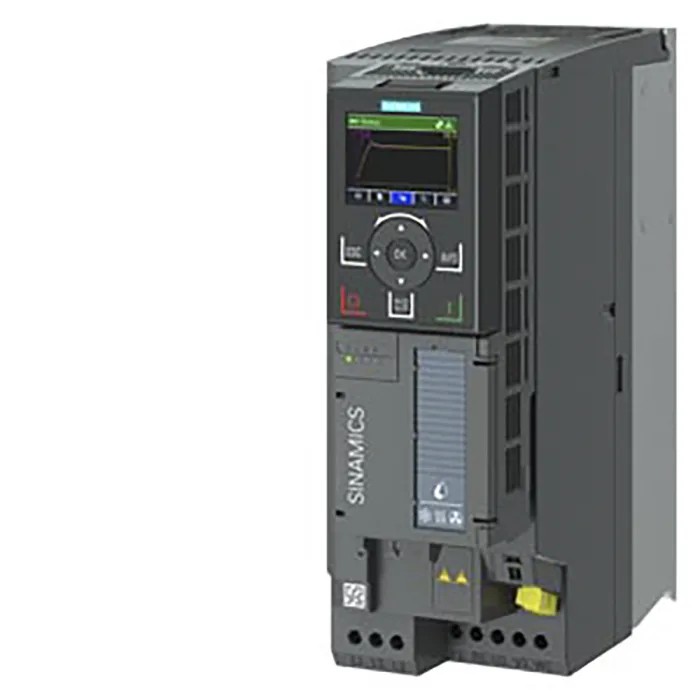

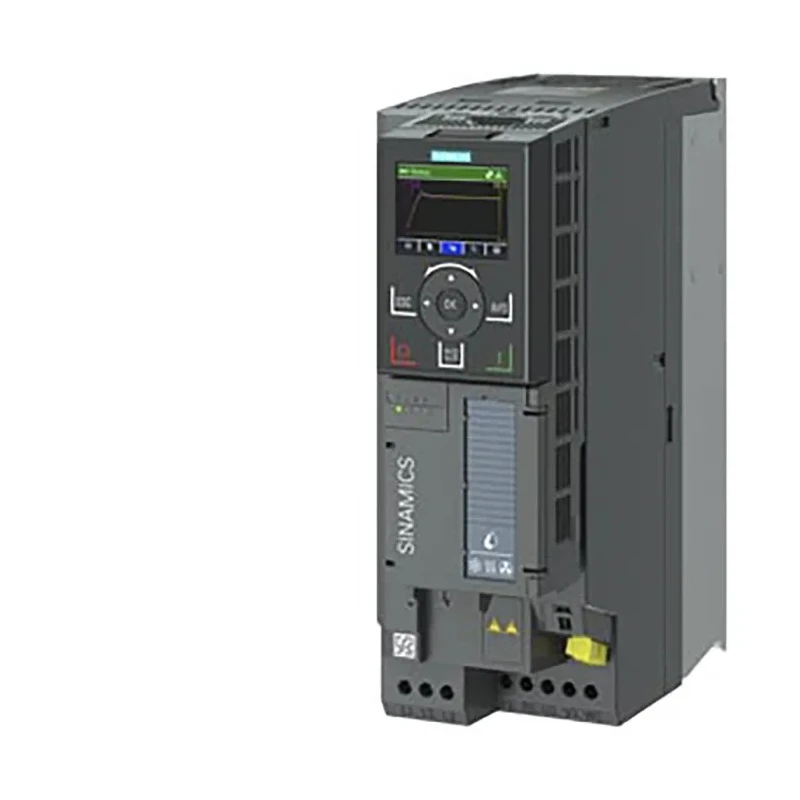

Siemens SINAMICS G120X Inverter Drive 5.5 kW, 3 Phase, 480V, 18 A, Wall Mounted, IP20, PID Control 6SL3220-1YE22-0UF0

The Siemens SINAMICS G120X Inverter Drive, model 6SL3220-1YE22-0UF0, is engineered for reliable and efficient control of three-phase AC motors. Designed to provide advanced drive functionality within a compact form factor, this inverter drive is suitable for a range of pump, fan, HVAC, water, and wastewater applications, as well as building and infrastructure automation.

This variant features a 5.5 kW power rating, supporting three-phase operation at up to 480V supply voltage and delivering a maximum output current of 18 A. Its wide voltage input range from 380V to 480V, combined with an output frequency capability up to 550 Hz, ensures flexible integration into industrial systems requiring variable speed motor control and energy optimization.

Wall mounting facilitates fast installation and efficient cabinet utilization, while the IP20 rating provides protection against dust and accidental contact in indoor environments. The drive is built for demanding conditions, with safe operation from -20°C to 45°C ambient temperature, and robust electronics for consistent performance.

PID (Proportional-Integral-Derivative) control functionality enables precise regulation of motor speed based on process requirements. Commissioning and operation are user-friendly, with options for Basic Operator Panel (BOP-2), Smart Access Module (SAM), and Intelligent Operator Panel (IOP-2), allowing versatile control and monitoring.

Specific industry functions such as tube filling, bypass mode, and harmonic reduction are available in the SINAMICS G120X series, making it ideal for applications where efficiency and reliability are critical. The drive is compatible with AC motors, and integrates seamlessly into building technology and water management systems.

5.5 kW three-phase inverter drive suitable for 480V power supply. Delivers maximum output current of 18 A for robust performance. Wall-mounted compact frame saves control cabinet space. PID control enables precise operation and energy savings.

Wide supply voltage range from 380V to 480V enhances versatility. Operating temperature from -20°C to 45°C for demanding environments. IP20 protection rating for secure installation in controlled areas. Flexible output frequency up to 550 Hz ideal for AC motor drives.

Built-in compatibility with AC motors for pump, fan, HVAC and infrastructure. Easy commissioning with operator panel options and smart access.

Industrial and commercial use cases include water treatment plants, HVAC installations, building automation, infrastructure, and process control. The SINAMICS series is part of Siemens' commitment to energy-efficient technology for modern manufacturing environments.
