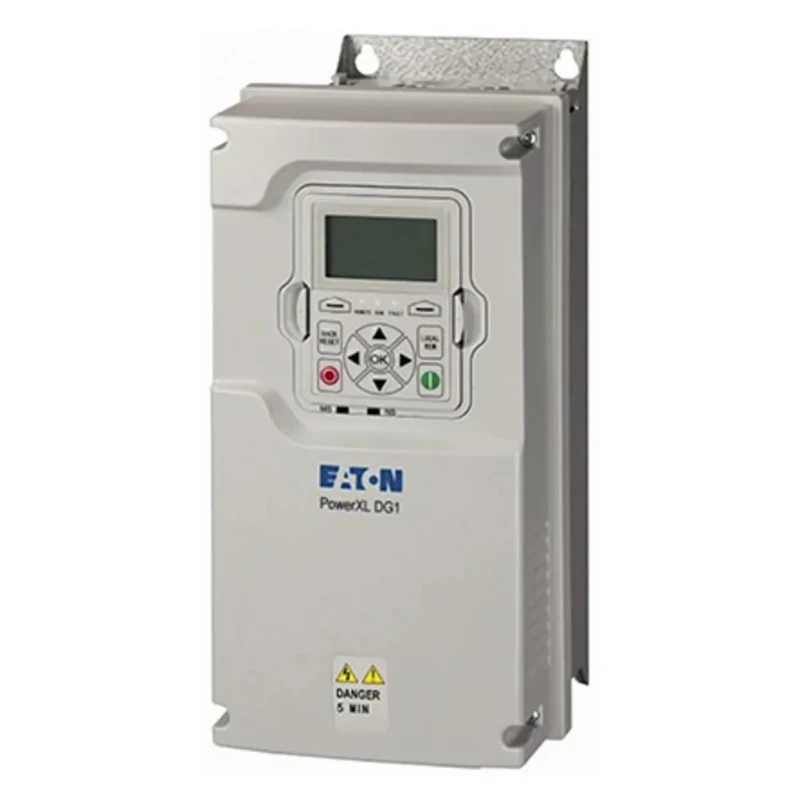

Eaton Inverter Drive, 4 kW, 3 Phase, DG1 Series, 500V Input, 12A Output, Panel Mount, IP21 9702-1011-00P DG1-349D0FB-C21C

The Eaton 9702-1011-00P DG1-349D0FB-C21C is a high-performance inverter drive designed for demanding industrial and commercial applications. Featuring a robust 4 kW power rating, this variable frequency drive (VFD) is engineered for versatile operation, controlling the speed and torque of asynchronous motors with precision and efficiency. With support for three-phase input and panel mounting, it is suitable for installations across manufacturing, process automation, HVAC, and water treatment plants.

This DG1 Series inverter drive operates within a supply voltage range of 380V to 500V AC and delivers a maximum output current of 12A. The device incorporates advanced features such as integrated EMI/RFI filtering, a DC choke for energy saving and surge protection, and conformal coated boards for extended durability. The LCD display and keypad provide clear interface and parameter control, while the compact panel-mountable form factor ensures space-saving in electrical cabinets.

Equipped with V/Hz and sensorless vector speed control, the drive offers flexibility in motor control, supporting a wide variety of industrial processes, including pumps, fans, conveyor belts, and high torque applications. The drive's output frequency adjusts up to 400 Hz, allowing adaptation to specific load requirements. High overload (CT) and low overload (VT) ratings, a durable metal power section, and a removable keypad rated IP54 contribute to its suitability in challenging operational environments.

Safety and reliability are further enhanced by on-board communication protocols and flexible I/O, eliminating the need for additional option boards. The DG1 Series is compliant with multiple international standards, including CE, UL, RoHS, and ISO 9001. Its compact design incorporates surge protection and a small footprint with a built-in DC choke, supporting energy-efficient operation and cabinet space optimization.

Applications include speed control for fans, pumps, and conveyors in industrial automation, water treatment, HVAC, and manufacturing sectors. The combination of advanced energy control algorithms and flexible setup provides superior process control and operational efficiency.

High-performance three-phase inverter drive with 4 kW power rating. Supports 3-phase input and asynchronous motor operation for industrial applications. Wide voltage range: 380 - 500V, suitable for various supply environments.

LCD display and keypad for intuitive parameter control and status monitoring. Compact panel-mount design with IP21 protection and robust metal power section. Maximum output current of 12A, ideal for pumps, fans, and conveyor belt systems.

Output frequency adjustable up to 400Hz, with V/Hz and sensorless vector control. Integrated EMI/RFI filters and DC choke ensure safety and reliability. Conformal coated boards and removable keypad rated IP54 support operation in challenging environments.
