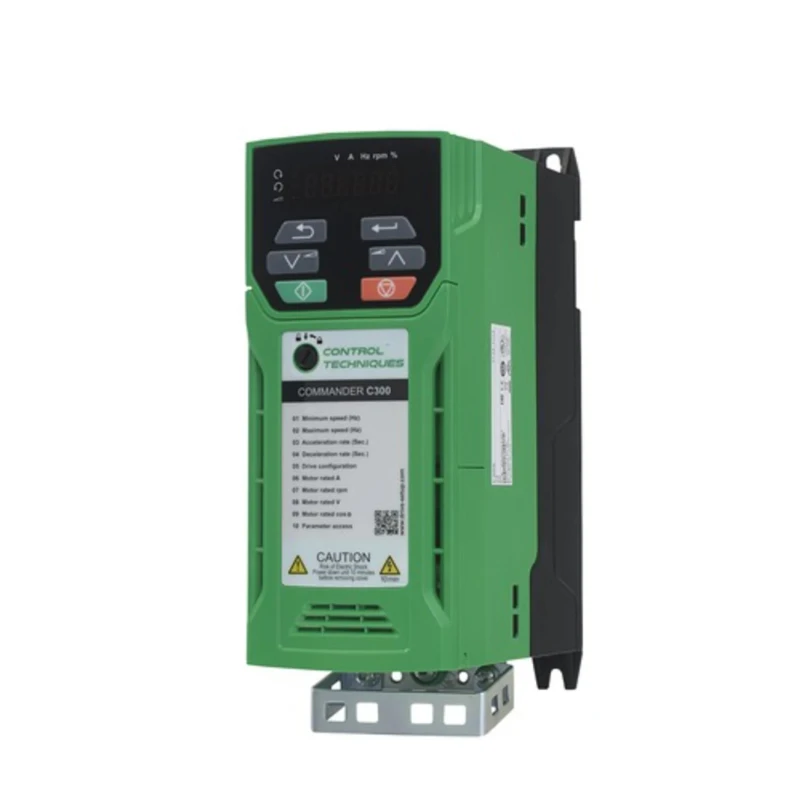

Control Techniques Inverter Drive, 550 W, 3 Phase, Variable Speed, Panel Mount, C300 Series 480V, IP20, C300-02400018

The Control Techniques C300-02400018 Inverter Drive is a premium, robust industrial motor controller designed for precise variable speed management in AC motor-driven applications. Engineered for demanding environments, this drive provides a rated output power of 550 W, supporting three-phase input and operating at up to 480V.

This inverter drive is part of the renowned Commander C300 Series, featuring advanced user-centric controls, plug-in expansion capability, and comprehensive protection including IP20-rated housing for reliable panel mounting. With a maximum output current of 1.8A and flexible output frequency up to 550 Hz, it enables optimised pairing with a wide array of AC motors.

Key safety functions such as dual Safe Torque Off (STO) are integrated, ensuring compliance with modern industrial standards, while energy saving features help reduce operational costs. The drive supports overload conditions of up to 180%, making it ideal for high-torque applications in varied industries such as manufacturing, water treatment, HVAC, and process control.

Installation and commissioning are simplified thanks to on-board PLC capabilities and intuitive parameter setting. The drive is compatible with AC motors, supports a minimum supply voltage of 380V, and features a robust enclosure with dimensions of 75 mm (length), 150 mm (width), and 205 mm (depth).

Suitable for both new installations and upgrades, the C300-02400018 offers intelligent performance control with easy motor pairing, reliability, and straightforward maintenance. The wide operating temperature range (-20°C to 40°C) allows deployment in diverse industrial and laboratory environments.

Delivers precise variable speed control for AC motor applications. Rated power output of 550 W with three-phase operation at 480V. Panel mount design with IP20 protection for industrial installations. Integrated Safe Torque Off (STO) and advanced energy saving features.

Compatible with a wide range of AC motors and plug-in options for advanced control. Supports overload up to 180% for demanding, high-torque situations. On-board PLC functionality ensures straightforward installation and commissioning.

Flexible output frequency up to 550 Hz enables versatile motor pairing and performance. Robust and reliable enclosure for continuous operation in harsh environments. Operating temperature ranges from -20°C to 40°C, suitable for industrial use.

Typical applications include industrial automation, manufacturing plants, laboratory motor control, HVAC systems, water treatment facilities, and commercial process drive systems. Designed for engineers and operators seeking efficiency, reliability, and advanced motor management solutions, the Control Techniques C300-02400018 stands out for its combination of innovation and durability.
