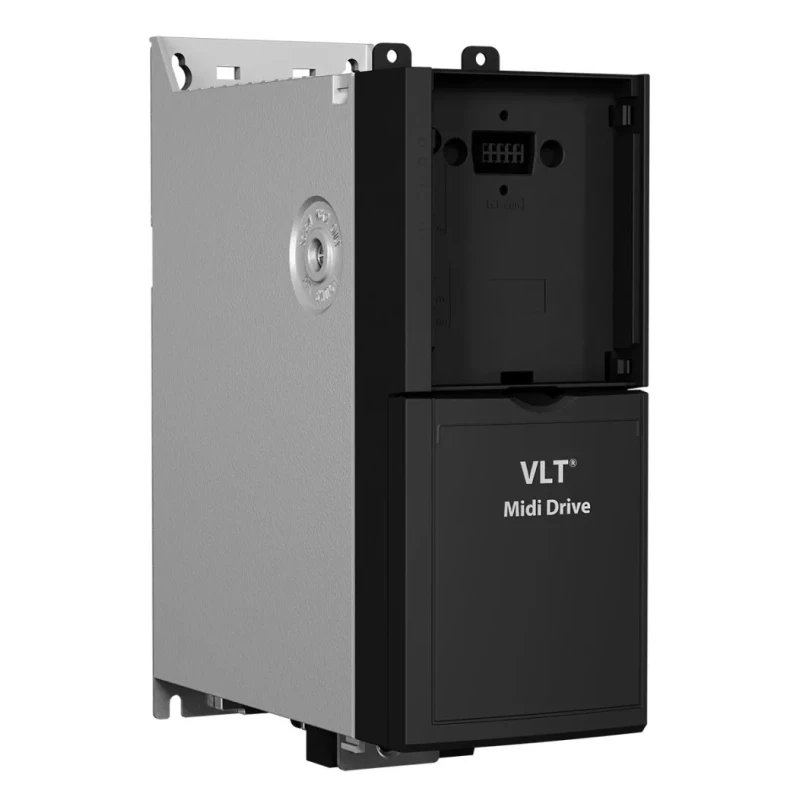

Danfoss 2.2 kW 3 Phase 400V AC Variable Frequency Inverter Drive FC280 Series
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 4.7A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Overall Depth | 210mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- Delivers 2.2 kW power suitable for medium-duty applications.
- Supports three-phase input with a supply voltage of 400V AC.
- Maximum output current of 4.7 A enabling precise motor control.
- Compact panel mount design with overall dimensions of 75mm×168mm×210mm.
- Equipped with integrated USB port for easy PC connection and setup.
- Various fieldbus communication options including Profibus, Profinet, Ethernet/IP, and CANopen.
- Includes integrated DC choke, RFI filter, and dual-channel STO functional safety.
- Compatible with induction motors and supports output frequency up to 500Hz.
Product Description
Danfoss FC280 Series 2.2 kW 3 Phase Variable Frequency Inverter Drive 134X0700 offers a compact and versatile solution for controlling AC induction motors in industrial and automation applications. Operating at 400V AC input voltage and delivering up to 4.7 A output current, this inverter drive enables precise speed and torque control for process optimization and energy efficiency.
The FC280 series features a robust panel mount design with a compact footprint of 75mm in length, 168mm width, and 210mm depth, facilitating easy installation in electrical control panels. It includes integrated hardware such as DC choke, RFI filter, and dual-channel Safe Torque Off (STO) functional safety to improve electrical performance and safety.
This drive provides flexible communication options with support for Profibus, Profinet with dual ports, Ethernet/IP, CANopen, Modbus RTU, and FC Protocol, enabling seamless integration with existing automation systems. The integrated USB port allows for hassle-free configuration and firmware updates via PC connection.
Designed to operate reliably in industrial environments, the FC280 inverter drive supports output frequencies up to 500 Hz and functions efficiently up to an ambient temperature of +55°C. It is suited for applications requiring energy savings and high performance such as conveyors, pumps, fans, and HVAC systems.
The product is certified to several international safety and compliance standards including CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, and UL Listed, ensuring adherence to quality and regulatory requirements. As a Better World product, it supports sustainability goals by enhancing energy efficiency.
Delivers 2.2 kW power suitable for medium-duty applications. Supports three-phase input with 400V AC supply voltage. Compact panel mount design with integrated safety features. Multiple communication protocols for flexible integration.
Energy-saving design aligned with sustainability initiatives.
Danfoss inverter drives are widely used across industrial, manufacturing, commercial HVAC, and water treatment sectors. Explore more Inverter Drives and automation solutions available on EnvMart to optimize your operations with trusted, high-performance Danfoss products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Danfoss FC280 inverter drive has a power rating of 2.2 kW, making it suitable for medium-duty applications.
This model provides a maximum output current of 4.7 A, enabling precise control of connected motors.
The FC280 series requires a minimum supply voltage of 400V AC for operation.
The Danfoss FC280 supports an output frequency of up to 500 Hz, allowing for flexible motor speed control.
The overall dimensions of this inverter drive are 75mm in length, 168mm in width, and 210mm in depth.
This model is compatible with induction motors, making it suitable for various industrial applications.
The FC280 supports multiple communication protocols, including Profibus, Profinet, Ethernet/IP, and CANopen, allowing for easy integration into existing systems.
It includes integrated dual-channel Safe Torque Off (STO) functional safety, along with an RFI filter and DC choke for improved electrical performance.
The maximum operating temperature for this inverter drive is +55°C, ensuring reliable performance in industrial environments.
The FC280 has an IP rating of IP20, indicating its suitability for indoor use in protected environments.
Yes, it is certified to several international standards including CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, and UL Listed.
This model features a panel mount design, facilitating easy installation in electrical control panels.
