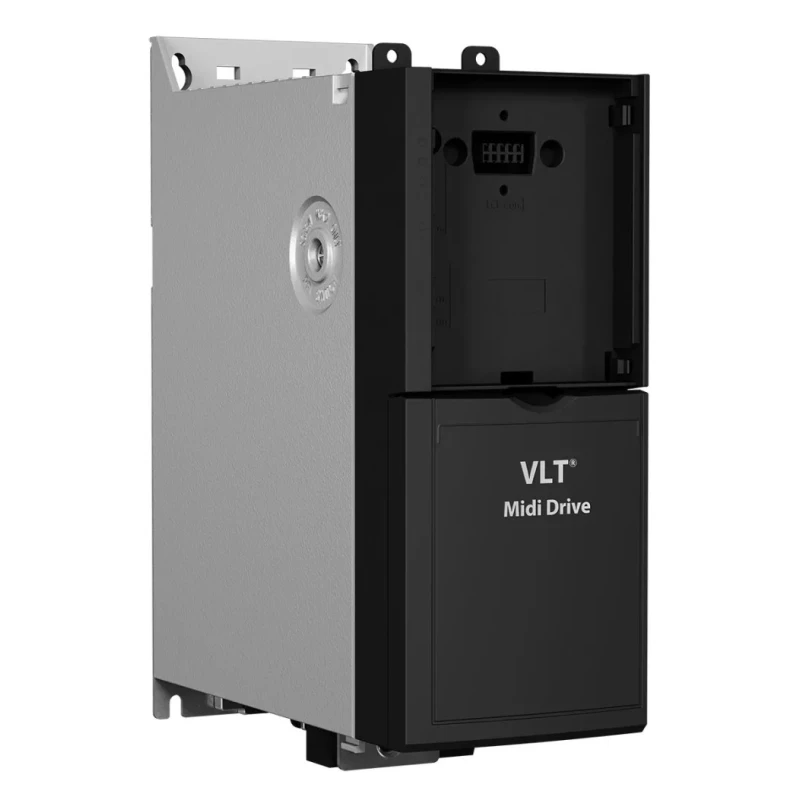

Danfoss FC280 Inverter Drive 1.5 kW, 3 Phase, Variable Frequency, 480V, Panel Mount
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 45°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 3.5A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Maximum Supply Voltage | 480V |
| Overall Depth | 210mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
| PID Controller | Integrated |
Key Features
- Offers optimal motor control for induction motors in industrial automation applications.
- Features variable frequency drive for energy efficiency and flexible speed control.
- Rated at 1.5 kW power output and operates on a three-phase 480V supply.
- Panel mount design with IP20 rating ensures safe installation and protection.
- Integrated PID controller and USB port for easy configuration and monitoring.
- Supports multiple communication protocols including Profibus, Profinet, Ethernet/IP, CANopen, Modbus RTU, and FC Protocol.
- Maximum output current of 3.5A suitable for a range of induction motors.
- Compact dimensions (75mm length, 168mm width, 210mm depth) for streamlined installation.
Product Description
Designed to provide strong motor control and flexibility, this variable frequency drive operates at 1.5 kW output and is compatible with induction motors in environments requiring precise speed management and energy savings.
The FC280 Series inverter is built for demanding applications, supporting a three-phase 380V - 480V supply and drawing a maximum output current of 3.5A. Its panel mount design means it is easy to integrate into control cabinets, while the IP20 protection rating improves safety during operation. The drive offers robust performance, with a maximum output frequency of 500Hz and a maximum operating temperature of 45°C.
Installation and configuration are user-friendly, thanks to pluggable connectors, an integrated DC choke, RFI filter, and dual-channel STO functional safety. The FC280 also includes an integrated PID controller and supports multiple fieldbus communication options such as Profibus, Profinet, Ethernet/IP, CANopen, Modbus RTU, and FC Protocol as standard. Connection and monitoring can be done quickly through the integrated USB port.
Optimal motor control for industrial and automation tasks. Energy-efficient operation with flexible frequency adjustment. Reliable protection via IP20 rated panel mount enclosure. Programmable inputs and outputs for easy system integration.
Compact size allows streamlined installation within control panels. Functional safety features including dual-channel STO. Compliance with international standards, including CE, cUL Listed, TUV, and EMC. Suitable for varied use, including HVAC, water treatment, manufacturing, and process automation.
Typical applications include manufacturing automation, conveyor systems, HVAC installations, water treatment plants, and wherever variable motor control is required to improve efficiency and reduce consumption.
Note: Control panel not included; available separately. Package contains one inverter drive. For industrial professionals seeking reliability, flexibility, and strong connectivity, the Danfoss FC280 Series delivers proven performance.
Browse more Inverter Drive solutions in the EnvMart Power Supply & Distribution category, or see additional Danfoss automation products to meet your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Danfoss FC280 inverter drive has a power rating of 1.5 kW.
This inverter drive has a maximum output current of 3.5A, suitable for a range of induction motors.
The overall dimensions of the FC280 are 75mm in length, 168mm in width, and 210mm in depth.
The maximum supply voltage for the Danfoss FC280 is 480V, with a minimum supply voltage of 380V.
This model is compatible with induction motors, making it suitable for various industrial automation applications.
The inverter drive supports multiple communication protocols, including Profibus, Profinet, Ethernet/IP, CANopen, Modbus RTU, and FC Protocol.
The FC280 has a maximum output frequency of 500Hz, allowing for flexible speed control.
The Danfoss FC280 has an IP20 rating, providing protection during installation and operation.
The maximum operating temperature for the FC280 inverter drive is 45°C.
Yes, it includes an integrated PID controller for enhanced motor control and an integrated USB port for easy configuration and monitoring.
This model features a panel mount design, facilitating easy integration into control cabinets.
The Danfoss FC280 is compliant with several international standards, including CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, and UL Listed.
