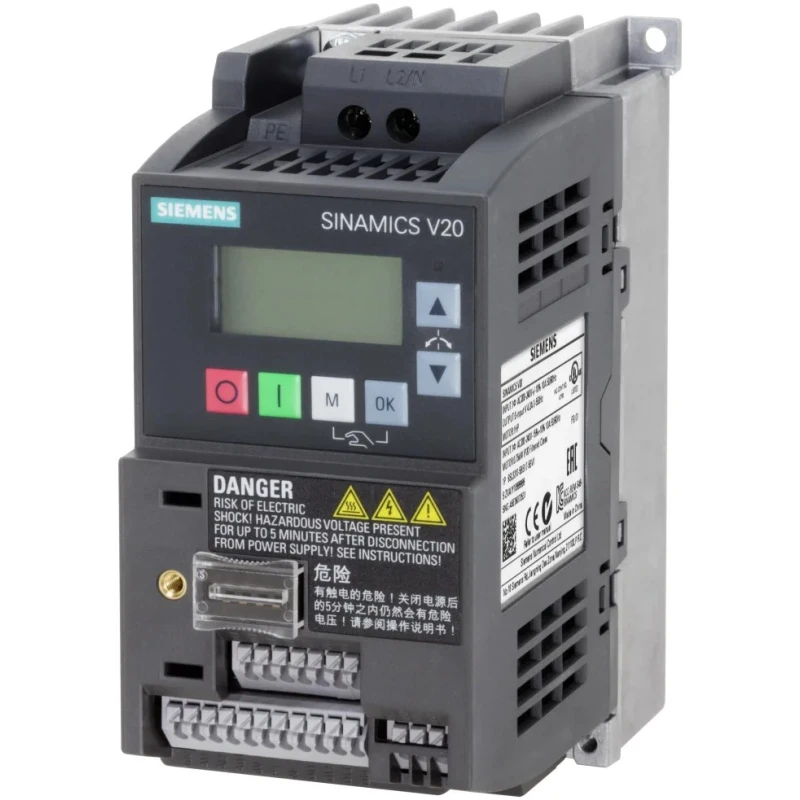

Siemens SINAMICS V20 Series Inverter Drive 550W 1 Phase 240V 3.2A IP20 6SL3210-5BB15-5BV1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BB15-5BV1 |
| IP Rating | IP20 |
| Drive Type | AC |
| Mount Type | Side, Wall |
| Overall Length | 68mm |
| Series | SINAMICS V20 |
| Overall Width | 127.8mm |
| Power Rating | 550W |
| Maximum Operating Temperature | 60°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 1 |
| Maximum Output Current | 3.2A |
| Maximum Supply Voltage | 240V |
| Overall Depth | 142mm |
| Minimum Supply Voltage | 200V |
| Compatible Motor Type | AC Motor |
Key Features
- Compact single-phase inverter drive providing 550W power output.
- Supports output current up to 3.2A and maximum output frequency of 550Hz.
- Operates reliably at supply voltages between 200V and 240V AC.
- Features IP20 protection and supports both side and wall mounting.
- Wide ambient temperature range from -10°C to +60°C for versatile environments.
- Compatible with AC motors, equipped with four digital inputs for system flexibility.
- Robust convection cooling ensures stable performance in demanding conditions.
- Ideal for controlling speed and torque of machinery such as pumps, compressors, and conveyors.
Product Description
The Siemens 6SL3210-5BB15-5BV1 Inverter Drive from the SINAMICS V20 Series is an advanced variable frequency drive designed to deliver 550 watts of reliable power for industrial motor control. This compact device is engineered for flexible installation and offers robust performance, making it a top choice for modern automation environments where precise control of AC motors is essential.
Supporting a single-phase supply and accepting voltage inputs from 200V to 240V AC, this inverter drive is capable of handling output currents up to 3.2A, making it broadly compatible with a wide range of industrial motors. The drive delivers output frequencies up to 550Hz, providing the precision needed for high-speed applications while maximizing process efficiency and equipment longevity.
Engineered with IP20 protection, the unit ensures safety against contact with larger foreign objects and is suited for side or wall mounting to adapt to varied installation requirements. The compact dimensions - 68mm length, 142mm depth, and 127.8mm width - allow for easy integration into tight control cabinets or machinery.
Operational reliability is further enhanced by the device's ability to function in ambient conditions ranging from -10°C to +60°C. This makes it suitable for use in challenging industrial settings where temperature fluctuations are common. The SINAMICS V20 features convection cooling and accepts standard communication protocols such as USS and Modbus RTU, enabling seamless integration into centralised automation systems.
Built to meet key international standards such as CE, cULus, EN 60204-1, EN 61800-3, and more, the Siemens inverter drive guarantees compliance with global safety and EMC requirements. Four digital inputs provided on the drive offer further flexibility for custom automation and control schemes, while an 800g total weight allows for hassle-free handling during installation.
This model is ideally suited for applications in manufacturing, HVAC, water treatment, packaging, and process control, where it can efficiently drive industrial machinery including pumps, compressors, and conveyors. Its energy-saving features, high operating efficiency, and straightforward installation make the Siemens SINAMICS V20 6SL3210-5BB15-5BV1 a solid investment for continuous, demanding use in modern industrial automation.
Discover more Inverter Drives and upgrade your automation systems with advanced Siemens solutions from EnvMart's extensive category range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens SINAMICS V20 Inverter Drive has a power rating of 550W.
This inverter drive supports a maximum output frequency of 550Hz.
It operates reliably in ambient temperatures ranging from -10°C to +60°C.
This model is compatible with AC motors.
The dimensions are 68mm in length, 127.8mm in width, and 142mm in depth.
This inverter drive operates on a single phase.
The maximum output current for this inverter drive is 3.2A.
It supports both side and wall mounting options.
The IP rating of this inverter drive is IP20, providing protection against contact with larger foreign objects.
It accepts standard communication protocols such as USS and Modbus RTU.
It complies with key international standards including CE, cULus, EN 60204-1, and EN 61800-3.
It is suitable for applications in manufacturing, HVAC, water treatment, packaging, and process control.
