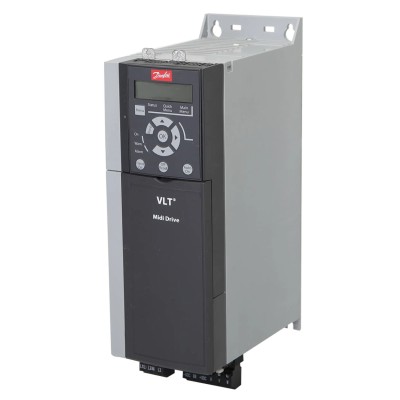

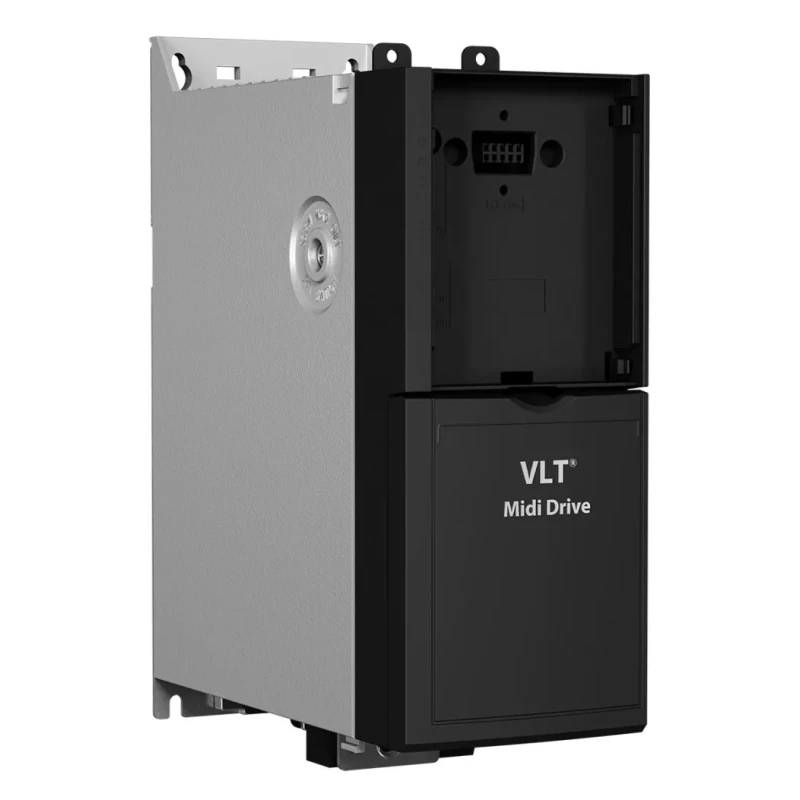

Danfoss Inverter Drive 1.1 kW 3 Phase 400V AC Variable Frequency Panel Mount FC280
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | Danfoss |
| Model | FC280 |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | FC280 |
| Overall Width | 168mm |
| Power Rating | 1.1kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 500Hz |
| Interfaces | USB port |
| Number of Phases | 3 |
| Maximum Output Current | 2.6A |
| Standards/Approvals | CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed |
| Overall Depth | 210mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- Compact design enables easy installation and setup in panel mount configurations.
- Operates on 400V AC supply, supporting output frequency up to 500Hz.
- Compatible with induction motors and offers a maximum output current of 2.6 A.
- Includes integrated USB port for seamless PC communication and programmable I/O.
- Supports multiple fieldbus protocols including Profibus and Profinet for flexible integration.
- Features pluggable connectors, built-in DC choke, RFI filter, and dual-channel STO functional safety.
- Designed for operation in temperatures up to +55°C with IP20 protection rating.
- Conforms to CE, UL, TUV, EMC, cUL, RCM standards ensuring reliability and compliance.
Product Description
Danfoss FC280 Inverter Drive 1.1 kW 3 Phase variable frequency drive is engineered for industrial motor control applications demanding compact size and robust performance. Designed for panel mounting, it provides precise speed regulation of induction motors with output frequency up to 500Hz and a supply voltage of 400V AC.
The FC280 series features a compact 75mm length, 168mm width, and 210mm depth housing with IP20 ingress protection. It includes a pluggable connector system, integrated DC choke, and RFI filter for reduced electromagnetic interference and electrical noise, enhancing system reliability.
This drive offers flexible fieldbus communication options such as Profibus, Profinet dual port, Ethernet/IP dual port, CANopen, and standard Modbus RTU, facilitating easy integration into complex automation networks. The built-in USB port allows straightforward PC connectivity for configuration and diagnostics.
Safety is enhanced with dual-channel Safe Torque Off (STO) functional safety features. The integrated PID controller supports advanced process control, and programmable digital and analogue inputs and outputs provide operational versatility.
Designed to operate reliably in ambient temperatures up to +55°C, the FC280 drive bears multiple international certifications including CE, cUL, TUV, and UL listings, making it suitable for diverse industrial and manufacturing environments.
Manufactured in Denmark, this inverter drive is a Better World product focused on energy savings and sustainability, contributing to reduced carbon footprint in industrial electric motor applications.
Compact panel mount design with pluggable connectors and integrated filters. Supports 400V AC power supply and output frequency up to 500Hz for precise motor control. Multiple communication protocols enable flexible system integration.
Safety features compliant with international standards for functional safety. Designed for harsh industrial environments with IP20 rating and high operating temperature tolerance. Energy-efficient operation certified as a Better World product.
Ideal for use in industrial automation, manufacturing, HVAC control systems, water treatment plants, and other applications requiring reliable AC motor speed control. Explore more from Danfoss and the Inverter Drives category at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 1.1 kW.
It supports a maximum output frequency of 500Hz.
This unit is compatible with induction motors.
The overall dimensions are 75mm in length, 168mm in width, and 210mm in depth.
The maximum output current is 2.6 A.
It includes an integrated USB port for seamless PC communication.
It features dual-channel Safe Torque Off (STO) functional safety for enhanced safety measures.
The IP rating is IP20, indicating protection against solid objects but not against water.
It conforms to CE, cUL, TUV, EMC, and RCM standards, ensuring reliability and compliance.
It is designed to operate in temperatures up to +55°C.
It supports multiple fieldbus protocols including Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
This model is designed for panel mounting.
