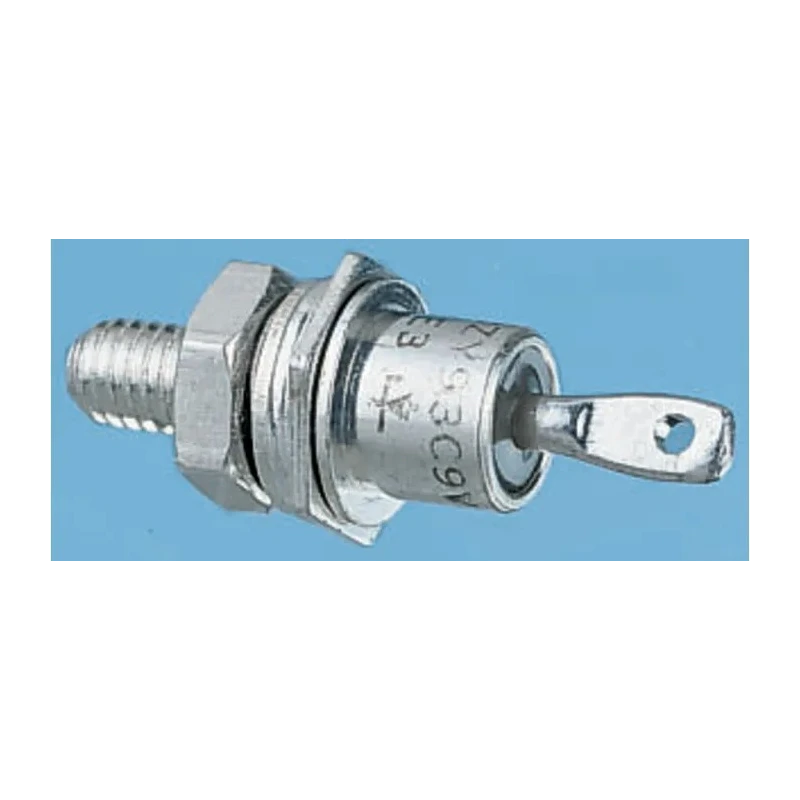

Vishay 800 V 12 A Standard Recovery Diode 2-Pin DO-203AA VS-12FR80
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-12FR80 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-12F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.26V |
| Vishay Switching Diode, Stud Anode, 2-Pin DO-4 12FR80Brand | Vishay |
| Vishay 600 V 12 A Diode Standard Recovery Diode 2-Pin DO-203AABrand | Vishay |
| Vishay 1000V 12A, Silicon Junction Diode, 2-Pin DO-4 VS-12FR100Brand | Vishay |
Key Features
- The diode features a standard recovery type construction offering versatility across multiple electronic designs.
- Package type is DO-203AA with a stud anode configuration and 2 pins for screw mounting.
- Capable of handling peak non-repetitive forward surge currents up to 280 A for transient conditions.
- Its maximum forward voltage is 1.26 V with a maximum operating temperature rated at 175°C.
- The component dimensions include a height of 31.8 mm, width and diameter of 11 mm, and length of 12.69 mm.
- Operational temperature range spans from -65°C to +175°C enabling reliable use in harsh environments.
- Peak reverse current is 12 mA ensuring low leakage during blocking state.
- No automotive standards or special approvals are associated with this device, focusing it on general industrial and commercial electronic applications.
Product Description
Vishay VS-12FR80 is a Standard Recovery Diode housed in a 2-Pin DO-203AA package designed for high reliability and efficiency in power electronic circuits. This diode supports a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 800 V, making it suitable for rectification in power supplies and converters.
The stud anode configuration and screw mount package provide sturdy mechanical installation and robust electrical connection. It withstands peak non-repetitive forward surge currents of up to 280 A, accommodating transient overloads in power circuits.
With a maximum forward voltage of 1.26 V and operating temperature range from -65°C to 175°C, this diode reliably functions in demanding industrial, laboratory, HVAC, and manufacturing environments where stable high-voltage switching is required.
The device dimensions are compact with a height of 31.8 mm, width and diameter of 11 mm, and length of 12.69 mm, allowing convenient integration into various electronic assemblies.
While the diode carries no specific automotive certifications, its proven Vishay quality and industry-standard packaging make it an excellent choice for general industrial semiconductor applications including power rectification and switching.
The diode features standard recovery characteristics for versatile performance. Rated for 12 A continuous forward current, supporting robust power handling. Maximum reverse voltage of 800 V enables handling of high voltage blocks.
Peak surge current capability of 280 A ensures tolerance to short duration power spikes. Compact 2-pin DO-203AA package with stud anode simplifies mounting and thermal dissipation. Wide operating temperature range facilitates use in harsh and variable environmental conditions.
This product is part of Vishay’s industry-recognized range of electronic components trusted worldwide. Browse the Semiconductor category at EnvMart for related devices and accessories.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-12FR80 diode is 12 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The diode is housed in a DO-203AA package with a stud anode configuration and has 2 pins for screw mounting.
It can handle peak non-repetitive forward surge currents of up to 280 A.
The maximum forward voltage of this diode is 1.26 V.
The operational temperature range spans from -65°C to +175°C.
The diode has a height of 31.8 mm, a width and diameter of 11 mm, and a length of 12.69 mm.
The peak reverse current is rated at 12 mA.
This diode is suitable for general industrial and commercial electronic applications, including power rectification and switching.
The VS-12FR80 is a standard recovery diode.
There are no specific automotive standards or special approvals associated with this device.
This diode features a screw mount type for installation.
