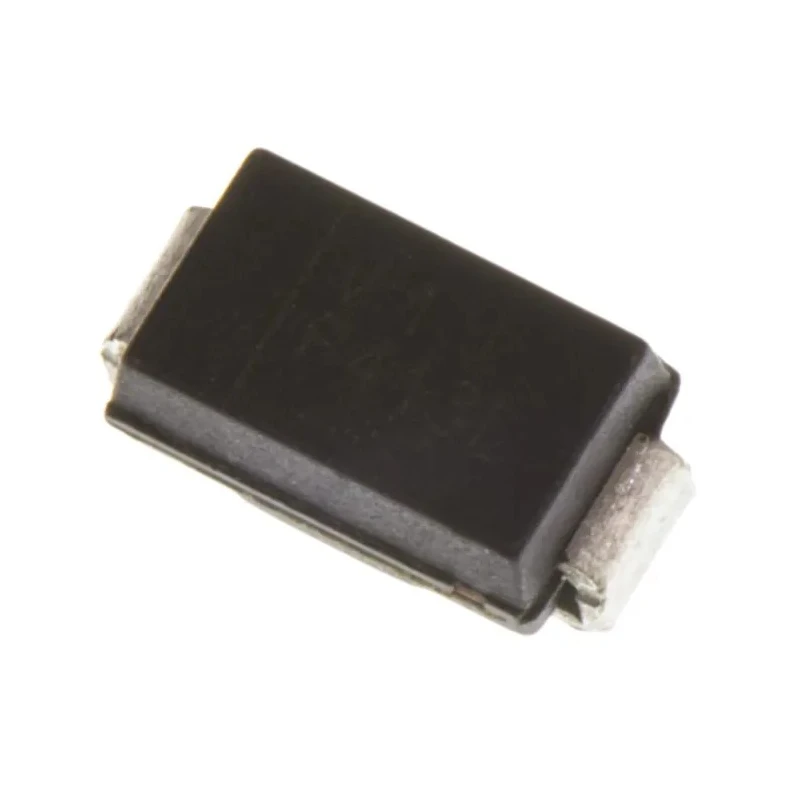

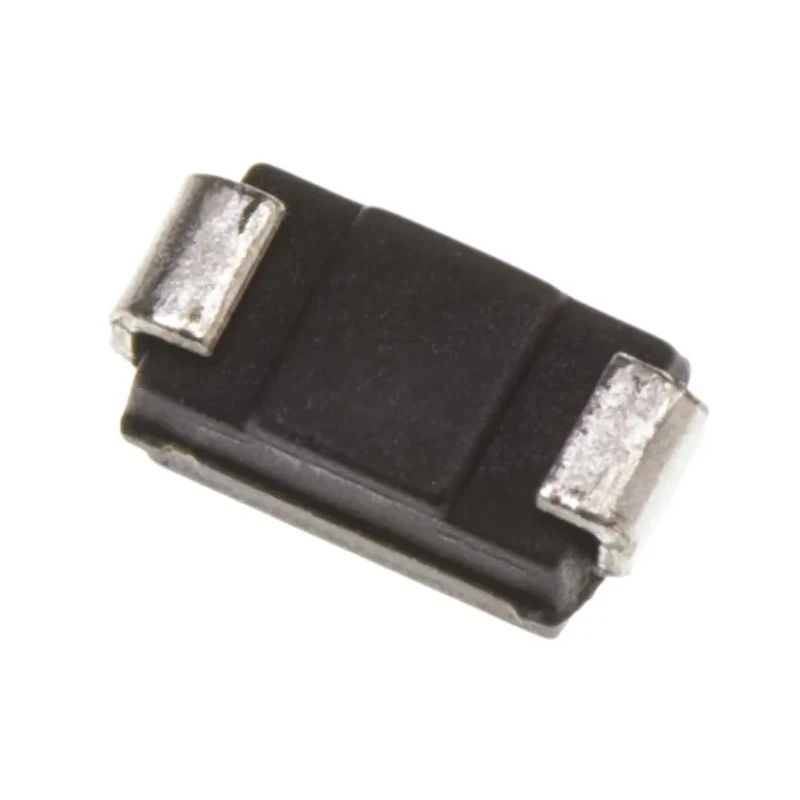

Vishay 100 V 1.5 A Surface Mount Schottky Diode 2-Pin DO-214AC VS-10MQ100-M3/5AT
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4.5mm |
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.6mm |
| Model | VS-10MQ100-M3/5AT |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 850mV |
Key Features
- Low forward voltage drop reduces power loss.
- Guard ring enhances ruggedness and reliability over long term.
- Compact surface mount DO-214AC package suitable for high frequency operation.
- Peak non-repetitive forward surge current rated at 120 A.
- Operates within temperature range from -55°C to 150°C.
- Ideal for disk drives, switching power supplies, converters, and battery protection.
- Meets moisture sensitivity level 1 per J-STD-020 with peak soldering at 260°C.
- Single diode configuration with 2 pins for PCB surface mounting.
Product Description
Vishay VS-10MQ100-M3/5AT is a high-performance Schottky rectifier designed for surface mounting with a DO-214AC package. It supports a peak reverse repetitive voltage of 100 V and a maximum continuous forward current of 1.5 A. This diode features a low forward voltage drop of 850 mV, improving efficiency in power applications.
The device is engineered with a guard ring to ensure enhanced ruggedness and long-term reliability, making it suitable for demanding environments and high frequency operations. It is capable of handling peak non-repetitive surge currents up to 120 A and maintains a wide operating temperature range from -55°C to 150°C.
Its small footprint and surface mount design allow for optimized space utilization on printed circuit boards, ideal for applications such as disk drives, switching power supplies, converters, freewheeling diodes, battery charging circuits, and reverse battery protection.
This Schottky diode meets Moisture Sensitivity Level 1 (MSL 1) as per J-STD-020 standards, withstanding peak soldering temperatures of 260°C, ensuring manufacturing reliability. Low forward voltage drop reduces power dissipation significantly.
Guard ring improves device robustness against surges and transient conditions. Compact DO-214AC form factor enables high-density circuit layout. Supports peak non-repetitive forward surge current up to 120 A for transient conditions.
Wide operating temperature range from -55°C up to 150°C suitable for various industrial environments. Single diode, 2-pin configuration for efficient surface mounting.
This product is ideal for industrial, electronic manufacturing, power supply design, and commercial equipment requiring reliable Schottky rectifier diodes. Vishay offers extensive technical support and datasheets to facilitate integration.
Explore more semiconductor products and Schottky diodes at EnvMart to find components suited for your engineering requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
