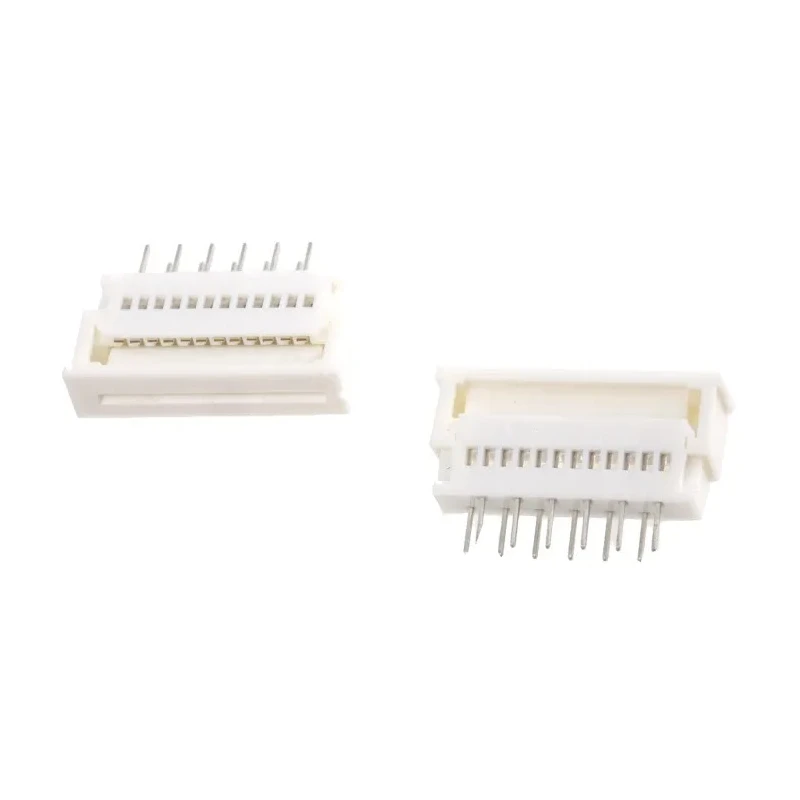

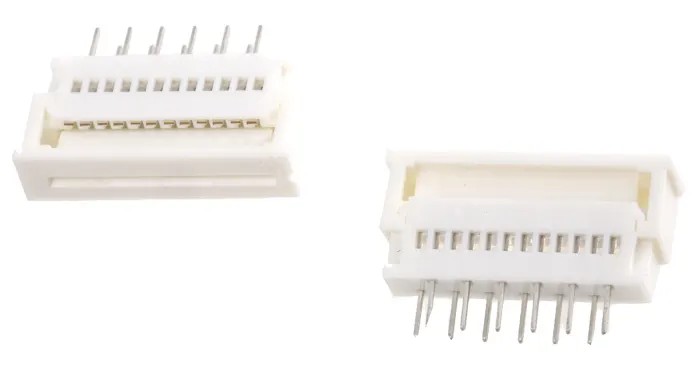

Molex 1.25 mm Pitch 12 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2125
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The 5597 series features Zero Insertion Force (ZIF) for minimal contact wear and easy assembly.
- Designed with a slide type actuator for secure and reliable connection of FPC cables.
- Uses phosphor bronze contacts plated with tin bismuth over nickel to ensure durability and conductivity.
- Rated for 1 amp current and 200 volts operating voltage with locking mechanism for stable attachment.
- Suitable for tight packaging applications requiring space saving and high reliability.
- Operates within temperature range of -20°C to 80°C, ideal for automotive and industrial electronics.
- Female connector gender with a single row of 12 contacts and polyethylene terephthalate housing material.
- Provides a straight orientation mount for through hole solder termination ensuring robust mechanical support.
Product Description
Molex 39-53-2125 is a reliable 12 way straight female FPC connector from the 5597 series, featuring a compact 1.25 mm pitch. It utilizes Zero Insertion Force (ZIF) technology to minimize wear during repeated insertions, providing exceptional durability for electronic applications.
This connector is designed with a slide type actuator that ensures secure and easy insertion of flat flexible cables (FFC) or flexible printed circuits (FPC). Its phosphor bronze contacts are plated with tin bismuth over nickel to maintain consistent electrical performance and longevity.
The connector supports a current rating of 1 amp and is rated for voltages up to 200 volts while incorporating a locking mechanism for safe and stable connections. The polyethylene terephthalate housing offers excellent insulation and mechanical protection, suitable for applications with tight packaging constraints.
Designed for through hole mounting, this connector has solder termination providing sturdy mechanical attachment and ease of assembly on printed circuit boards. Its operating temperature range from -20°C to 80°C makes it suitable for automotive, industrial, and electronic manufacturing environments.
With 12 female contacts arranged in a single row and a straight orientation, the Molex 39-53-2125 provides a compact and efficient solution for wire-to-board interconnections requiring high reliability and repeated cycling.
Zero Insertion Force for repeat cycling with minimal wear. Slide type actuator for easy insertion and secure contact connection. Phosphor bronze contacts with tin bismuth over nickel plating. Rated for 1A current and 200V voltage operation.
Through hole mount with solder termination ensures mechanical stability. Operating temperature -20°C to 80°C suitable for automotive and industrial use. Polyethylene terephthalate housing for insulation and durability. Compact design ideal for space constrained assemblies.
This FPC Connector is ideal for electronics manufacturing, automotive wiring, industrial control systems, and other applications demanding precision and reliability. Explore Molex connectors on EnvMart for a comprehensive selection of electronic interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 amp and an operating voltage of 200 volts.
The pitch size of this connector is 1.25 mm, which allows for compact arrangements in electronic applications.
It features solder termination, which ensures a robust mechanical attachment during assembly on printed circuit boards.
The housing is made of polyethylene terephthalate, and the contacts are made of phosphor bronze plated with tin bismuth over nickel.
It operates within a temperature range of -20°C to 80°C, making it suitable for various environments including automotive and industrial applications.
This model features 12 female contacts arranged in a single row, designed for efficient wire-to-board interconnections.
The connector has a straight orientation, which is suitable for through hole mounting applications.
It utilizes Zero Insertion Force (ZIF) technology, which minimizes wear during repeated insertions, enhancing durability.
Yes, it incorporates a locking mechanism to ensure stable and secure connections during operation.
This connector is part of the 5597 series, known for its reliability and ease of use in electronic applications.
It supports through hole mounting, which provides sturdy mechanical support and ease of assembly.
The country of origin for this connector is Japan.
