Hirose USB Connector USB Type B Surface Mount Straight Female 1 Port 30V 1A USB 2.0 ZX62R-B-5P(30)

Free Delivery in India | Lowest Global Shipping Charges

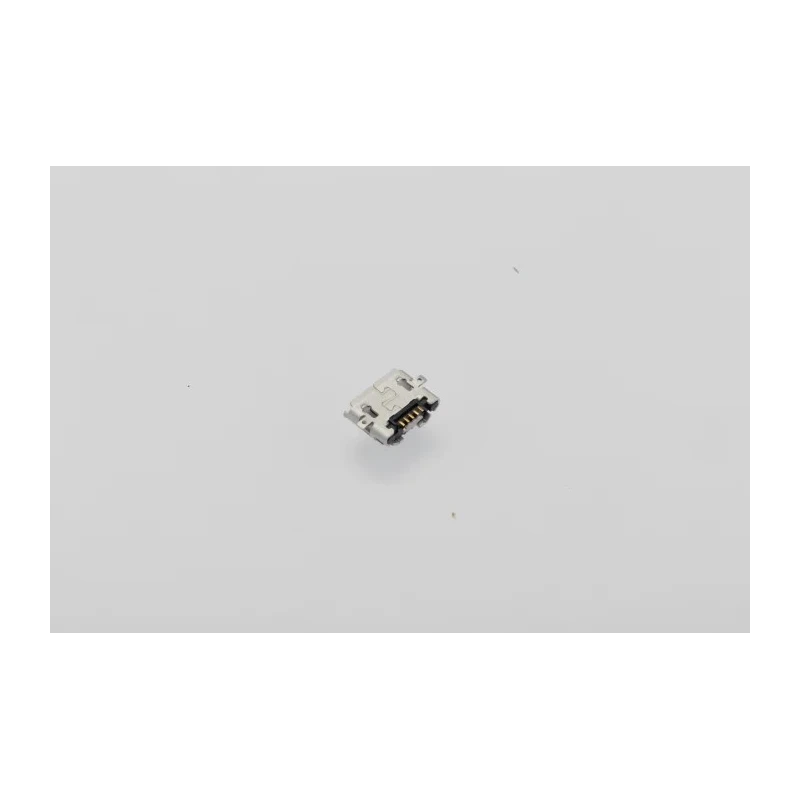

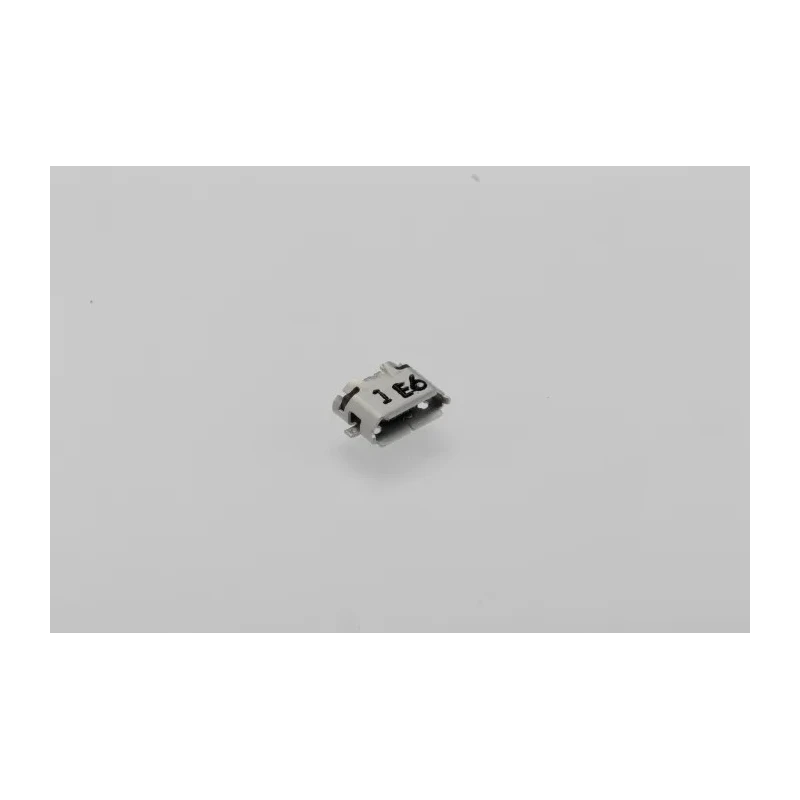

Hirose USB Connector USB Type B Surface Mount Straight Female 1 Port 30V 1A USB 2.0 ZX62R-B-5P(30)

Name: Hirose USB Connector USB Type B Surface Mount Straight Female 1 Port 30V 1A USB 2.0 ZX62R-B-5P(30)
Brand: Hirose
SKU: 204684
Price: 0.9 USD
Availability: InStock



Category USB Connector Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	30V
Brand	Hirose
Orientation	Straight
Current	1A
Model	ZX62R-B-5P(30)
Mount Type	Surface
Contact Material	Copper Alloy
Series	ZX
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Compact and reliable USB Type B connector designed for surface mounting.
Supports USB 2.0 specification with data transfer speeds up to 480 Mbps.
Features a straight orientation and female connector gender.
Rated for 1A current and 30V voltage capacity.
Made with copper alloy contact material for durability and conductivity.
Operates reliably from -30°C to 85°C operating temperature range.
Termination type is solder for stable PCB connections.
Active latch mechanism ensures secure and tactile connection.

Product Description

Hirose ZX62R-B-5P(30) USB Connector is a high-quality USB Type B surface mount connector designed to meet USB 2.0 standards. It features a straight female port configuration, supporting reliable connections with a current rating of 1A and voltage tolerance up to 30V. Manufactured with copper alloy contacts, the connector ensures excellent conductivity and durability. The active latch mechanism provides a tactile and secure connection that reduces wear and tear across 10,000 mating cycles.

Its operating temperature range from -30°C to 85°C allows for broad industrial and electronic applications, including ultra-thin phones, data recorders, readers, cameras, camcorders, PDAs, and handheld GPS units. The solder termination type allows for robust PCB mounting ensuring stable long-term operation.

The compact design of the Hirose ZX series enables it to be 60% smaller than standard mini USB connectors without compromising on high-speed data transfer capability, achieving speeds up to 480 Mbps as specified in USB 2.0. The smooth mating and unmating action with a low withdrawal force of 8 N minimizes connector wear and maximizes connector life span.

Compact and reliable USB Type B connector designed for surface mounting. Supports USB 2.0 specification with data transfer speeds up to 480 Mbps. Features a straight orientation and female connector gender. Rated for 1A current and 30V voltage capacity.

Made with copper alloy contact material for durability and conductivity. Operates reliably from -30°C to 85°C operating temperature range. Termination type is solder for stable PCB connections. Active latch mechanism ensures secure and tactile connection.

Designed for 10,000 mating cycles prolonging connector longevity. Ideal for use in ultra-thin phones, data recorders, cameras, and handheld GPS units. This product is suitable for a wide array of industrial applications including electronics manufacturing, telecommunications, consumer electronics, and embedded systems design.
