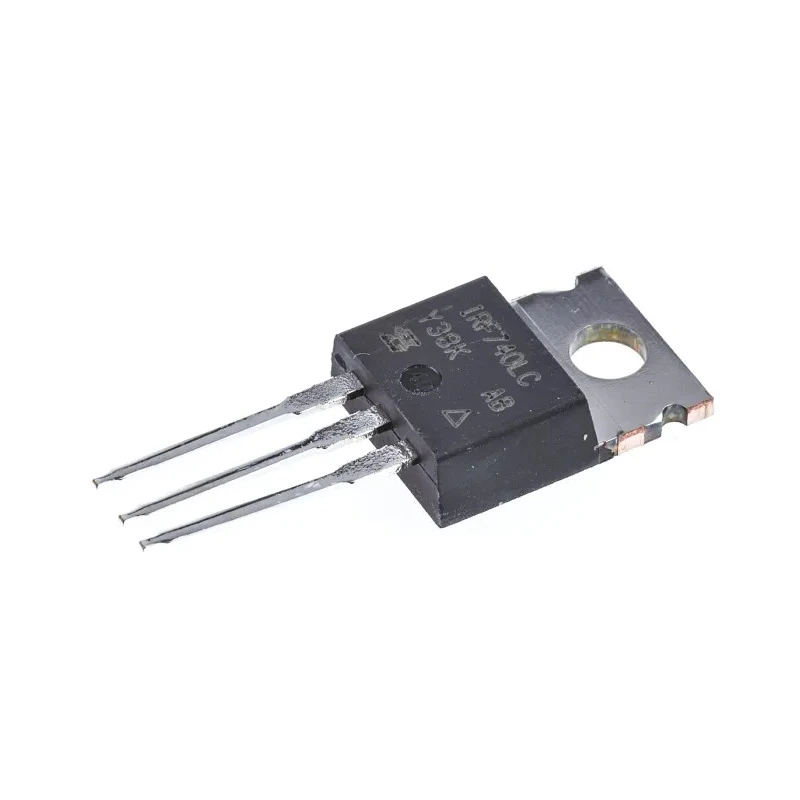

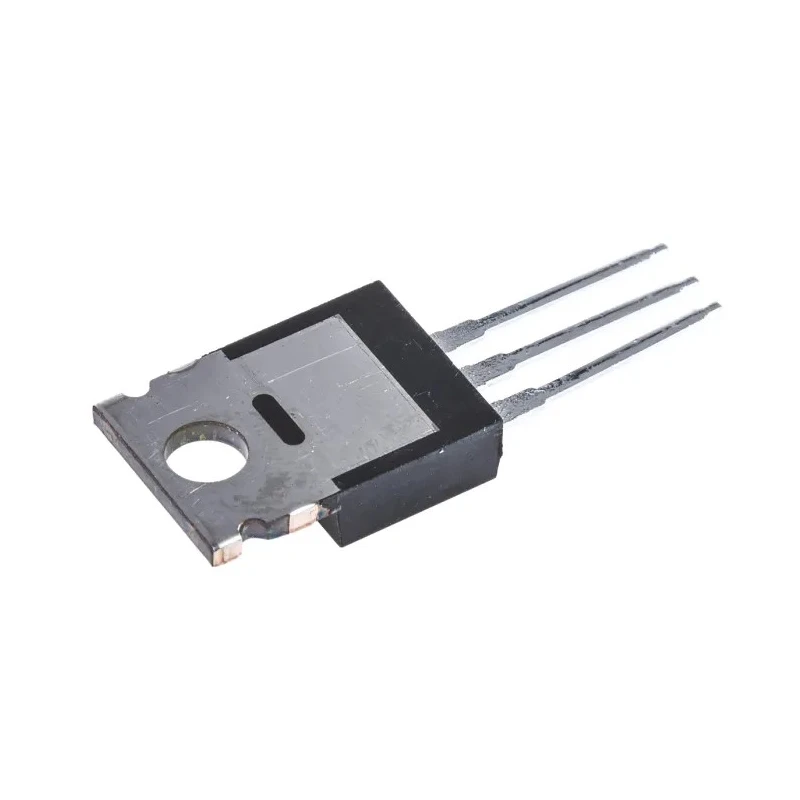

Vishay N-Channel Power MOSFET, 10 A Continuous Drain Current, 400 V Drain Source Voltage, Enhancement Mode IRF740LCPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.01mm |
| Length | 10.41mm |
| Model | IRF740LCPBF |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | IRF740LC |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 10A |
| Maximum Drain Source Voltage Vds | 400V |
| Maximum Drain Source Resistance Rds | 550mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 125W |
| Typical Gate Charge Qg @ Vgs | 39nC |
| Maximum Gate Source Voltage Vgs | -30, +30V |
| Forward Voltage Vf | 2V |
Key Features
- Supports a continuous drain current of 10 A.
- Maximum drain-source voltage rating of 400 V for reliable high-voltage operation.
- Enhancement mode operation ensures efficient switching behavior.
- Packaged in a TO-220AB through-hole mount for ease of heatsinking and PCB attachment.
- Maximum power dissipation of 125 W supports sustained high-power applications.
- Low on-resistance of 550 mΩ reduces conduction losses at load currents.
- Typical gate charge of 39 nC facilitates predictable switching performance.
- Wide operating temperature range from -55°C to 150°C for demanding environments.
Product Description
Vishay IRF740LCPBF is a high-voltage N-channel power MOSFET suited for switching and power conversion applications in industrial electronics. It features a maximum continuous drain current of 10 A and a drain-source voltage rating of 400 V, enabling robust handling of moderate load currents and high-voltage blocking capability.
Operating in enhancement mode, this transistor is supplied in a TO-220AB package designed for through-hole mounting, allowing straightforward integration with heat sinks and printed circuit boards for effective thermal management.
The device supports a maximum power dissipation of 125 W and exhibits a low drain-source on-resistance of 550 mΩ to minimize conduction losses. Its typical gate charge of 39 nC allows for predictable switching behavior, while the maximum gate-source voltage range of -30 V to +30 V provides protection against excessive gate drive.
Rated to operate across a wide temperature spectrum from -55°C to 150°C, the IRF740LCPBF delivers stable performance in varying thermal conditions. The typical forward voltage during conduction is 2 V, indicative of its voltage drop when fully active.
The device complies with RoHS directives, ensuring it meets environmental and safety standards. It is not specified for automotive-grade applications and should be assessed accordingly for vehicle use.
Typical industrial use cases include power-supply switching in medium-power converters, industrial motor-control stages, high-voltage DC-DC conversion topologies, battery system load switching, and general power electronics prototyping.
Supports a continuous drain current of 10 A. Maximum drain-source voltage of 400 V. Through-hole mounting with TO-220AB package. Maximum power dissipation of 125 W. Low on-resistance of 550 mΩ. Typical gate charge of 39 nC.
Wide operating temperature from -55°C to 150°C. Forward voltage drop approximately 2 V. RoHS compliant device. Explore further Power MOSFETs and discrete semiconductors for industrial and electronic applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 10 A.
It has a maximum drain-source voltage rating of 400 V.
This unit comes in a TO-220AB package type, designed for through-hole mounting.
The maximum power dissipation supported by this model is 125 W.
It features a low drain-source on-resistance of 550 mΩ, which helps reduce conduction losses.
The typical gate charge for this model is 39 nC, facilitating predictable switching performance.
It operates over a wide temperature range from -55°C to 150°C.
The maximum gate-source voltage range is -30 V to +30 V.
The typical forward voltage drop during conduction is approximately 2 V.
The dimensions of this model are 10.41 mm in length, 4.7 mm in width, and 9.01 mm in height.
Yes, this device complies with RoHS directives, ensuring it meets environmental and safety standards.
It is suited for applications such as power-supply switching, industrial motor control stages, and high-voltage DC-DC conversion.
