Vishay 1-Element Bi-Directional TVS Diode Surface Mount SMC Package 1.5 kW Peak Pulse Power SMCJ6.0CA-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ6.0CA-E3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.67V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 145.6A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Single diode configuration for bi-directional transient voltage suppression.
- Minimum breakdown voltage of 6.67 V and maximum reverse stand-off voltage of 6 V.
- Clamping voltage of 10.3 V ensures effective circuit protection.
- Operates reliably between -55°C and 150°C temperatures.
- Offers ESD protection and meets AEC-Q101 automotive standard.
- Compact dimensions measuring 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Supports maximum peak pulse current of 145.6 A for transient surge handling.
- Designed for surface mount PCB assembly with 2 pins in SMC package type.
Product Description
Vishay SMCJ6.0CA-E3 1-Element Bi-Directional TVS Diode is a high-performance transient voltage suppressor optimized for protecting sensitive electronic systems. Featuring a single diode configuration with bi-directional capability, this device offers reliable protection against voltage surges in a compact surface mount SMC package.
Its peak pulse power dissipation is 1.5 kW, making it suitable for robust transient voltage suppression applications in industrial, automotive, electronics manufacturing, power supply, and communication systems. The diode’s minimum breakdown voltage is 6.67 V, with a maximum reverse stand-off voltage of 6 V, ensuring effective suppression below critical circuit voltages.
The clamping voltage is tightly controlled at 10.3 V, which safeguards electronic components during transient voltage events while minimizing damage risk. The device supports operation in harsh environments with a wide temperature range from -55°C to 150°C, including compliance with the AEC-Q101 automotive standard for increased reliability.

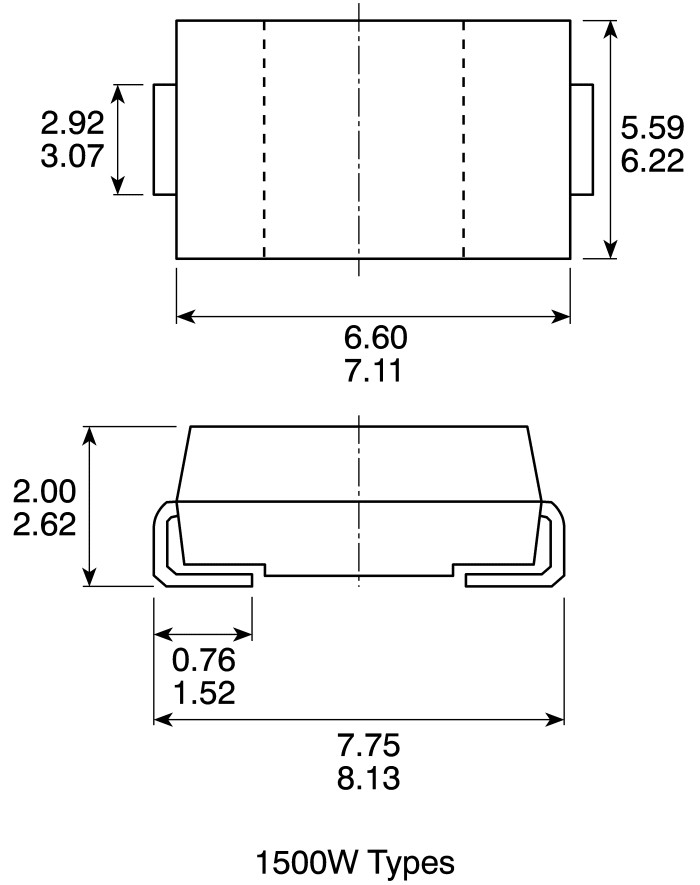

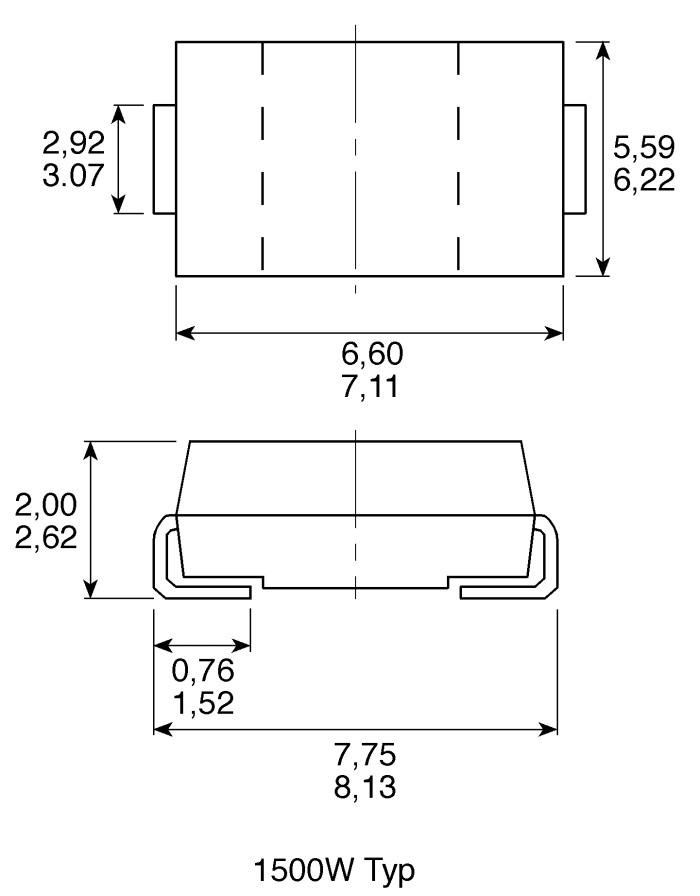

Dimensionally, the diode is compact with a length of 7.11 mm, width of 6.22 mm, and height of 2.42 mm, facilitating PCB space savings and straightforward surface mount assembly. The 2-pin configuration supports easy integration into various circuit topologies requiring bi-directional protection.
High surge current capability is provided, with a maximum peak pulse current rating of 145.6 A. ESD protection enhances device durability against electrostatic discharges, suitable for demanding industrial and automotive environments.
In summary, the Vishay SMCJ6.0CA-E3 offers reliable overvoltage protection with a strong power rating, automotive-grade quality, and industry-standard package form factor. It is ideal for use in electronic devices, power circuits, automotive electronics, and communication equipment requiring transient voltage suppression.
Single diode, bi-directional transient voltage suppressor. Surface mount SMC package with 2 pins for easy PCB integration. 1.5 kW peak pulse power dissipation capability. Voltage ratings: 6.67 V breakdown, 6 V stand-off, 10.3 V clamping.
Operating temperature range from -55°C up to 150°C. Meets AEC-Q101 automotive standard for enhanced reliability. Compact dimensions minimize PCB footprint. Maximum surge current of 145.6 A for transient protection.
This TVS diode from Vishay ensures durable and efficient protection for sensitive circuits against voltage spikes and ESD events. Explore more TVS Diode options and reliable transient voltage suppression solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMCJ6.0CA-E3 is 1.5 kW.
The clamping voltage of this TVS diode is 10.3 V, which helps protect electronic components during transient voltage events.
It operates reliably within a temperature range of -55°C to 150°C.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The maximum peak pulse current for this model is 145.6 A, allowing it to handle significant transient surges.
Yes, it meets the AEC-Q101 automotive standard, ensuring enhanced reliability for automotive applications.
This model is designed for surface mount PCB assembly with a 2-pin configuration.
The minimum breakdown voltage of this diode is 6.67 V.
The maximum reverse stand-off voltage is 6 V, which is crucial for effective voltage suppression.
It features a single diode configuration with bi-directional capability for transient voltage suppression.
The maximum reverse leakage current is 1 mA, which is important for maintaining circuit integrity.
This diode is suitable for protecting sensitive electronic systems in industrial, automotive, and communication applications.
