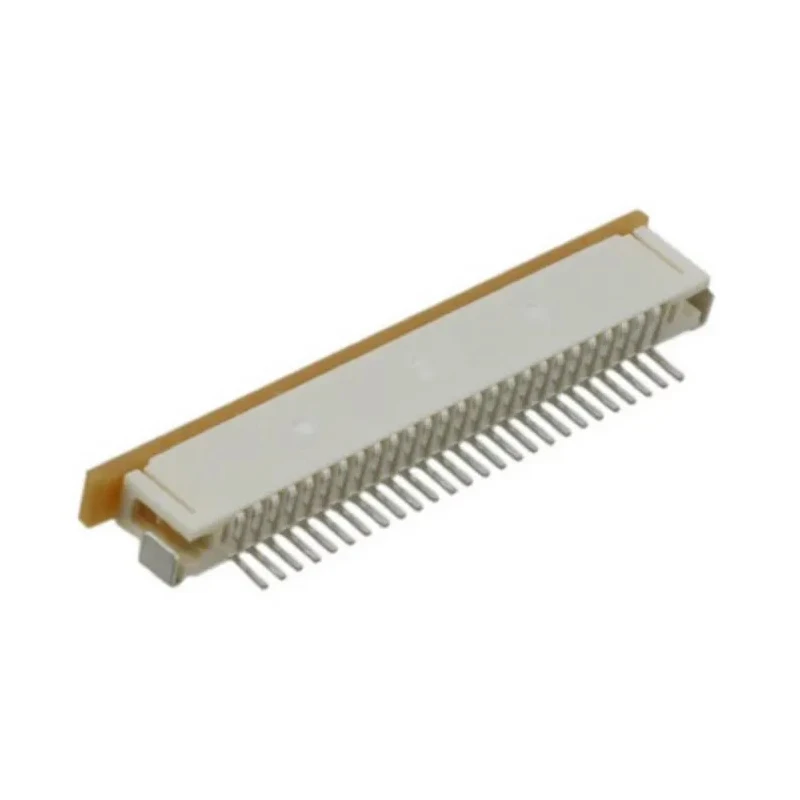

Molex 1 mm Pitch 26 Way Right Angle Female FPC Connector ZIF Bottom Contact 52271-2679
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52271 |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth Alloy |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Featuring 26 contacts with a 1 mm pitch for precise connection.
- Right angle orientation with female connector gender and bottom contact for secure PCB mounting.
- Zero Insertion Force (ZIF) design with slide-type actuator for easy FPC insertion and secure connection.
- Constructed from phosphor bronze contacts with tin bismuth alloy plating and nylon housing for durability.
- Supports voltage up to 50 V AC and current rating of 500 mA suitable for automotive and electronic applications.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Locking mechanism included to maintain stable electrical contact.
- Ideal for use in automotive navigation, digital cameras, medical devices, mobile phones, and more.
Product Description
Molex 52271-2679 is a 1 mm pitch 26 way right angle female FPC connector featuring ZIF (Zero Insertion Force) bottom contact technology, designed to provide a reliable and space-efficient solution for connector applications. It is suitable for surface mount PCB assembly with a slide-type actuator that rotates 30° to facilitate easier insertion of FPC cables while maintaining firm retention.
The connector features phosphor bronze contacts plated with tin bismuth alloy, housed in a durable nylon casing, providing secure electrical connections and mechanical stability. Its design incorporates solder tabs that offer strong PCB retention and strain relief, especially for right angle mounting configurations.
Operating within a temperature range of -40°C to 85°C, this Molex connector supports a voltage rating of 50 V AC and a current capacity of 500 mA, making it well suited for automotive, consumer electronics, datacommunications, medical, and mobile phone industries.
The 52271 series emphasizes ease of use with a slide-type actuator enabling repeat cycling with minimal wear, guide rails ensuring precise FPC alignment, and movable contacts that maintain contact retention even under cable movements. Locking mechanisms enhance the stability of connections in high-vibration or demanding environments.
Space saving design for compact applications. Zero Insertion Force mechanism reduces wear and facilitates easy connection. Secure slide actuator ensures reliable mating and unmating cycles. Guides align FPC for accurate insertion.
Movable contacts maintain contact retention under stress. Solder tabs provide mechanical strain relief and PCB retention. Suitable across automotive, medical, consumer, and industrial uses.
This connector is ideal for tight packaging applications requiring robust yet compact interconnect solutions such as automotive navigation and audio systems, digital cameras, home security, tablets, notebook computers, patient monitors, GPS units, smartphones, and other handheld consumer electronics.
Explore a comprehensive range of FPC Connectors at EnvMart to find compatible components and tailored solutions for your electrical interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1 mm pitch and has 26 contacts.
It supports a maximum current rating of 500 mA.
The connector is rated for a maximum voltage of 50 V AC.
It operates within a temperature range of -40°C to 85°C.
The contacts are made from phosphor bronze with tin bismuth alloy plating, and the housing is constructed from nylon.
The ZIF mechanism allows for easy insertion of FPC cables with minimal wear, using a slide-type actuator that rotates 30° for easier access.
This model is designed for surface mount PCB assembly.
It is suitable for automotive navigation, digital cameras, medical devices, mobile phones, and other consumer electronics.
The connector features a right angle orientation.
Yes, it includes a locking mechanism to maintain stable electrical contact.
The termination type is ZIF Bottom Contact.
The country of origin for this connector is India.
