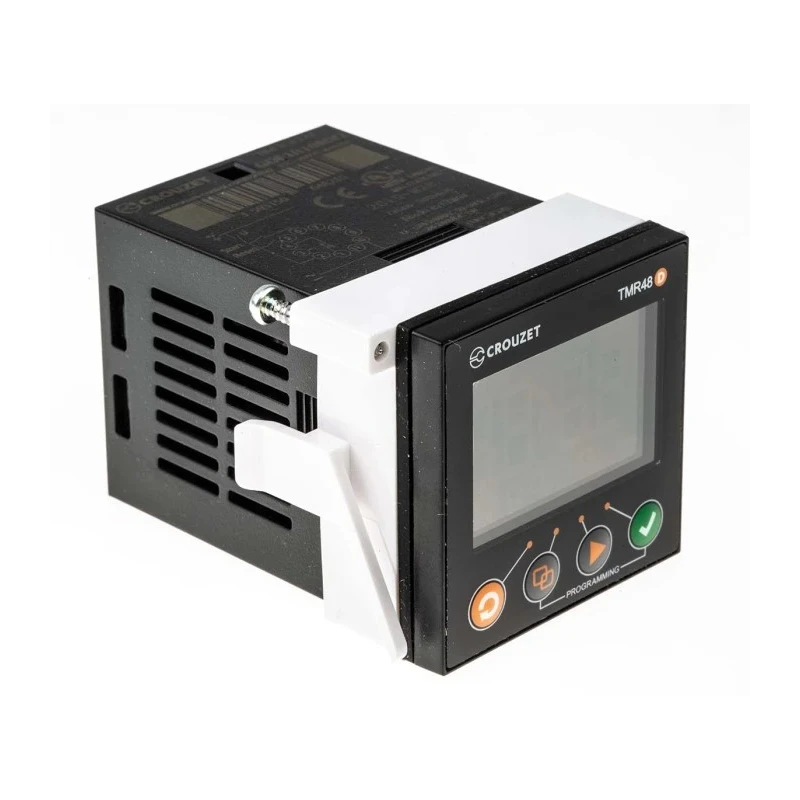

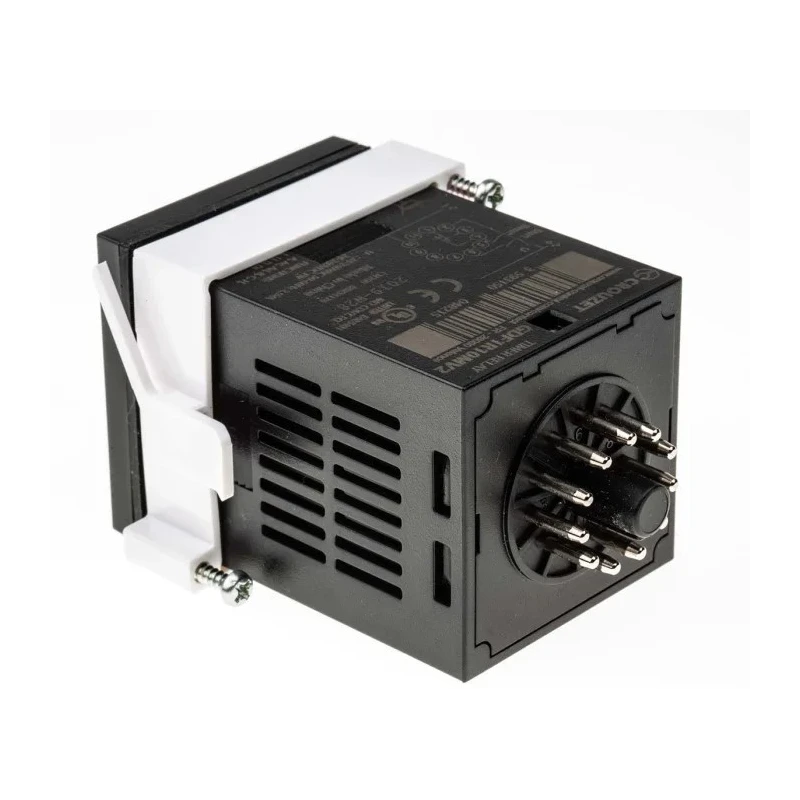

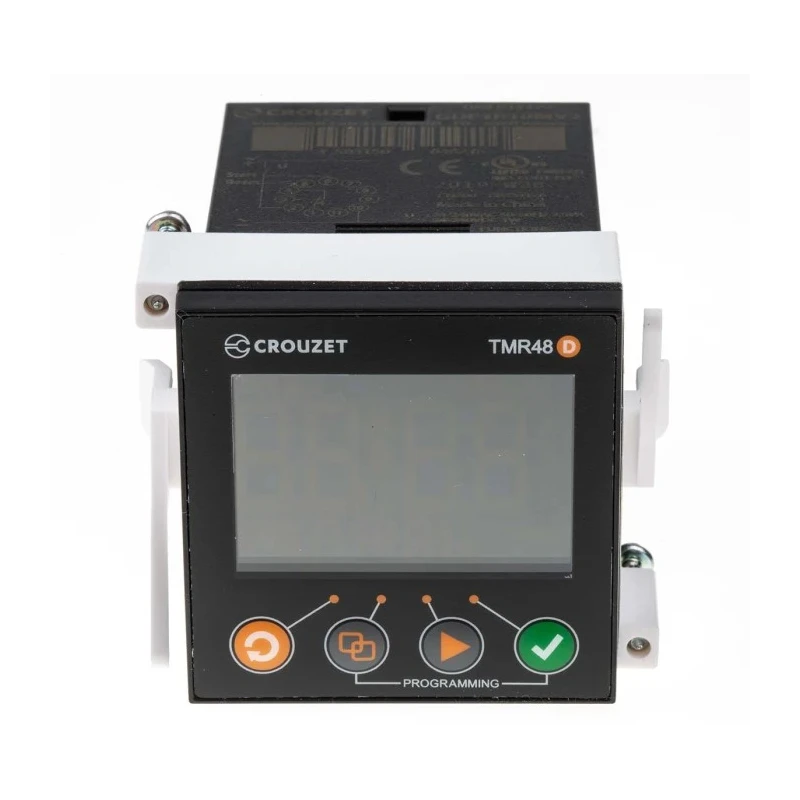

Crouzet Syr-Line Series Panel Timer Relay, 1-Contact, 24 to 240 V DC/AC, 10A, Multifunction SPDT GDF1R10MV2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crouzet |
| Height | 68mm |
| Function | AC |
| Length | 48mm |
| Model | GDF1R10MV2 |
| IP Rating | IP20, IP66 |
| Mode | Multifunction |
| Width | 48mm |
| Mount Type | Panel |
| Series | Syr-Line |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Terminal type | 11-Pin |
| Number of Contacts | 1 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 10A |
| Supply DC Voltage | 24 to 240 V dc |
| Timing Adjustment | Polar |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Multifunction timer with functions ranging from 0.001 seconds to 9999 hours.
- 24 to 240 V DC and 24 or 240 V AC supply voltage capability.
- SPDT contact configuration with 10 A contact current rating.
- Wide temperature operating range from -10°C to 60°C.
- 11-pin terminal for panel mounting with IP20 and IP66 protection ratings.
- High precision timing with polar timing adjustment and LCD display with backlight.
- Durable and certified with CE, UL508, cULus, REACH, RoHS and IEC standards.
- Stored memory feature for operation during power outages.
Product Description
Crouzet GDF1R10MV2 Syr-Line Series Panel Timer Relay is a high-performance multifunction timer relay engineered for precise time control in industrial automation systems. Featuring 1-contact SPDT configuration, this relay supports supply voltages from 24 to 240 V DC and AC, with a switching voltage of 250 V AC and contact current up to 10 A. Its 11-pin panel mounting design facilitates easy integration into control panels.
The multifunctional timer supports a broad range of timing functions including delay on start, interval, off delay, on delay, on/off delay, one-shot, recycler modes, and symmetrical flashing, with timing adjustable from 0.001 seconds to 9999 hours. It incorporates a 7-segment, 4-digit LCD display with backlighting and features a lockable setting and polar timing adjustment for versatile programming.
Designed for robust industrial conditions, it operates reliably between -10°C and 60°C and carries protection ratings of IP20 and IP66 for resistance against dust and water. Certified to CE, UL 508, cULus, REACH, RoHS and IEC 61812-1 standards, this relay ensures compliance and safety.
The relay is ideal for diverse industrial applications including textiles, chemical processing, mining, irrigation, raw material handling, food and beverage production, and comprehensive industrial process control systems.
Multifunction timer relay with broad timing ranges and high accuracy. SPDT contact configuration supports 10 A switching current at 250 V AC. Supports both DC (24-240 V) and AC supply voltages (24/240 V). Robust construction with IP20 and IP66 protection ratings.
Intuitive programming with LCD display and lock function. Memory retention feature preserves last setting on power loss. Compact dimensions for space-efficient panel mounting. Certified to multiple international safety and quality standards.
Explore more Timer Relays and automation components in the Electronics & Electricals category on EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a timing range from 0.001 seconds to 9999 hours, allowing for precise control in various applications.
It features a single SPDT contact configuration with a contact current rating of 10 A.
The relay supports supply voltages of 24 to 240 V DC and 24 or 240 V AC.
The relay has dimensions of 68mm in height, 48mm in width, and 48mm in length, making it compact for panel mounting.
It operates reliably within a temperature range of -10°C to 60°C.
The timer relay has IP20 and IP66 protection ratings, providing resistance against dust and water.
Timing adjustment is done using a polar adjustment feature, which allows for versatile programming.
Yes, it includes a 7-segment, 4-digit LCD display with backlighting for easy visibility.
It is suitable for diverse industrial applications including textiles, chemical processing, mining, irrigation, and food and beverage production.
This model is certified to CE, UL 508, cULus, REACH, RoHS, and IEC 61812-1 standards, ensuring compliance and safety.
It is designed for panel mounting with an 11-pin terminal configuration, facilitating easy integration into control panels.
Yes, it includes a stored memory feature that retains the last setting during power outages.
