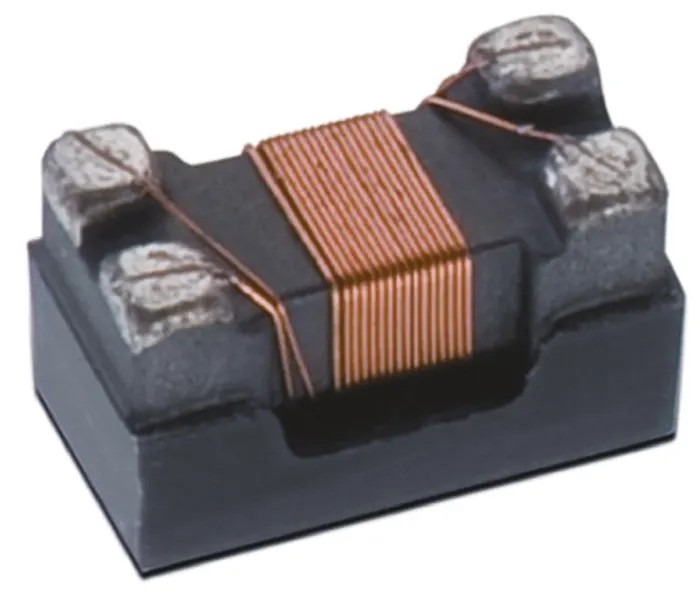

Wurth Elektronik 1206 Shielded Surface Mount Common Mode Line Filter with Ferrite Core, 1.26 μH Dual Inductor 744232102
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | WE-CNSW SMD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1.26μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1206 |
| Maximum DC Current | 230mA |
| Pin Count | 4 |
| Maximum DC Resistance | 1Ω |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Provides effective EMI noise reduction for high speed data lines.
- Features a ferrite core and dual inductor construction for optimal performance.
- Compact 1206 package size of 3.2mm length, 1.8mm height, and 1.6mm depth.
- Rated for a maximum DC current of 230mA with 1Ω maximum DC resistance.
- Conforms to automotive standard AEC-Q200, suitable for automotive applications.
- Operates reliably between -40°C and 125°C for stable performance.
- Comes with tape and reel packaging for automated assembly processes.
- RoHS compliant and conforms to IEC 61249-2-21, JEDEC JS709B, and REACH standards.
Product Description
Wurth Elektronik 744232102 shielded surface mount common mode line filter features a ferrite core and dual inductor construction providing 1.26 μH inductance, designed for noise suppression in industrial and automotive electronic applications.
This common mode choke offers high-frequency EMI noise suppression while maintaining minimal impact on differential signals, making it ideal for USB 2.0, Firewire, LVDS, LAN, and other high-speed data lines.

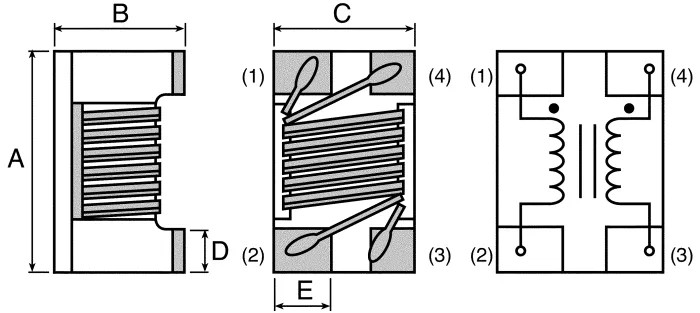

The compact 1206 package measures 3.2mm in length, 1.8mm in height, and 1.6mm in depth, allowing integration in space-constrained PCBs. It is rated for a maximum DC current of 230mA with a maximum DC resistance of 1Ω, ensuring reliable operation under normal load conditions.
Designed to meet automotive quality standard AEC-Q200, this filter operates effectively from -40°C up to 125°C, suitable for harsh environments. The product is supplied in tape and reel packaging suitable for automated PCB assembly processes.
Provides effective EMI noise reduction for high speed data lines. Features a ferrite core and dual inductor construction for optimal performance. Compact 1206 package size for easy PCB integration. Rated for a maximum DC current of 230mA with low DC resistance.
Automotive standard AEC-Q200 compliance ensures reliability. Wide operating temperature range from -40°C to 125°C. RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B compliant.
This Wurth surface mount common mode line filter is suited for industrial, automotive, and electronic manufacturing use cases requiring EMI suppression on signal and power lines. It supports improved circuit performance and reliability in precision electronic devices.
Explore the comprehensive range of Surface Mount Inductors and EMI filters at EnvMart for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1.26 μH.
It is rated for a maximum DC current of 230mA.
The dimensions of the 1206 package are 3.2mm in length, 1.8mm in height, and 1.6mm in depth.
This model operates reliably between -40°C and 125°C.
It conforms to automotive standard AEC-Q200 and is RoHS compliant, as well as complying with IEC 61249-2-21 and JEDEC JS709B standards.
It features a dual inductor construction with a ferrite core for optimal performance.
It comes with tape and reel packaging, suitable for automated assembly processes.
The maximum DC resistance is 1Ω.
It is suitable for high-speed data lines such as USB 2.0, Firewire, LVDS, and LAN applications.
This unit has a pin count of 4.
The inductance tolerance is ±25%.
The core material used in this filter is ferrite.
