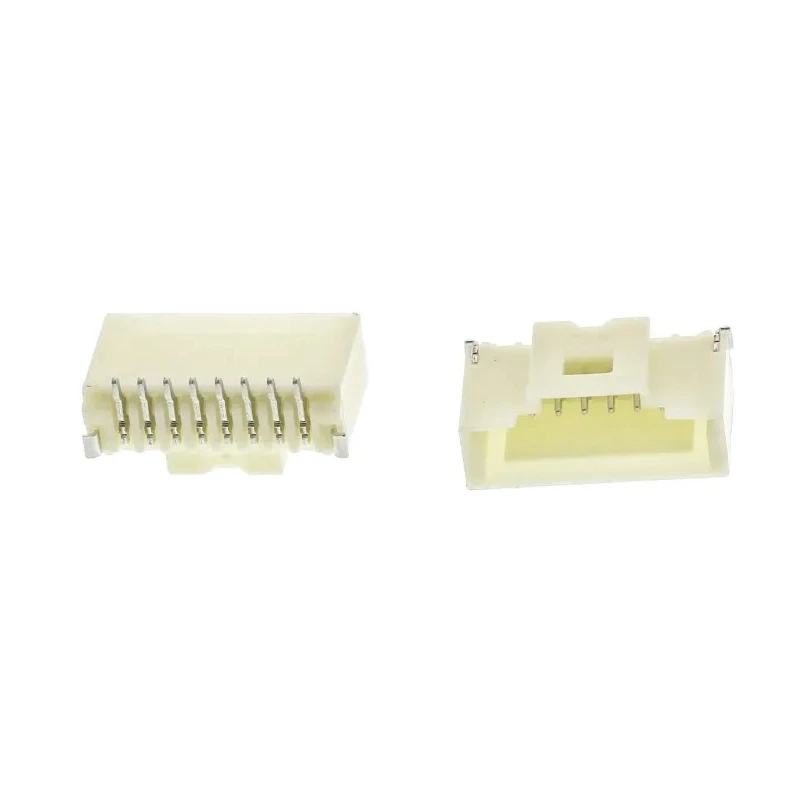

Molex Pico-Clasp Series Straight Surface PCB Header, 8 Contacts, 1 mm Pitch, Single Row, Shrouded 501331-0807
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- Compact surface mount PCB header suitable for high-density wire-to-board connections.
- Features 8 male contacts with 1 mm pitch for reliable signal transmission.
- Shrouded single row construction prevents misalignment during mating.
- Robust nylon housing and phosphor bronze contacts with tin plating ensure durability and electrical integrity.
- Rated for up to 1A current and 50V voltage, supporting a range of signal and power applications.
- Wide operating temperature range from -40°C to 105°C for industrial and commercial environments.
- Solder termination interface simplifies automated PCB assembly processes.
- Designed for use in electronics, automation, instrumentation, and embedded systems.
Product Description
The Molex Pico-Clasp Series PCB Header model 501331-0807 is engineered for demanding wire-to-board applications that require compact form factor, high-density PCB mounting, and positive lock features. This straight surface-mount header provides 8 male contacts arranged in a single row with a precise 1 mm pitch, delivering reliable signal integrity for advanced electronic assemblies.
Designed with a shrouded structure, the header minimizes the risk of misalignment during connector mating and facilitates secure, repeatable wire-to-board connections. The robust nylon housing exhibits excellent mechanical properties, supporting stable positioning on the PCB even in environments subject to vibration and mechanical stress.
Phosphor bronze contacts offer superior conductivity and are tin-plated to maximize corrosion resistance and ensure longevity. The rated current of 1A and voltage of 50V cater to both signal-level and low-power applications, making the connector suitable for use in embedded systems, automation equipment, instrumentation devices, and industrial control electronics.
The surface-mount termination supports efficient automated assembly, and the solder interface guarantees mechanical stability post-reflow. The header’s wide operating temperature range, from -40°C to 105°C, allows deployment in various industrial, commercial, and laboratory environments where temperature variations are expected.
As part of the Pico-Clasp Series, this header is compatible with Molex’s positive lock mechanism, ensuring secure mating and easy maintenance within high-density electronic modules. Applications include medical devices, automation controllers, instrumentation, communication modules, and anywhere space-saving PCB interconnects are required.
Browse EnvMart’s PCB Header category for more Molex Pico-Clasp connectors and other wire-to-board solutions to optimize your electronics assembly and industrial connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum current of 1A and a voltage of 50V, making it suitable for both signal-level and low-power applications.
It features a 1 mm pitch with 8 male contacts arranged in a single row, designed for high-density wire-to-board connections.
The housing is made of nylon, while the contacts are constructed from phosphor bronze with tin plating for enhanced conductivity and corrosion resistance.
This unit has a wide operating temperature range from -40°C to 105°C, making it suitable for various industrial and commercial environments.
It utilizes a solder termination type, which simplifies the automated assembly process on PCBs.
Yes, it is designed for wire-to-board applications and is compatible with Molex’s positive lock mechanism for secure mating.
This model supports surface mounting, allowing for efficient use of space on PCBs in high-density applications.
The mating pin length for this header is 1 mm, which is designed to fit securely into corresponding connectors.
It is suitable for use in medical devices, automation controllers, instrumentation, and communication modules, among other applications.
The shrouded design minimizes the risk of misalignment during mating, ensuring secure and reliable connections in high-density environments.
This model is manufactured in Japan, ensuring adherence to specific quality standards in its production.
