Molex MicroClasp Series Right Angle Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded 55935-0410

Free Delivery in India | Lowest Global Shipping Charges

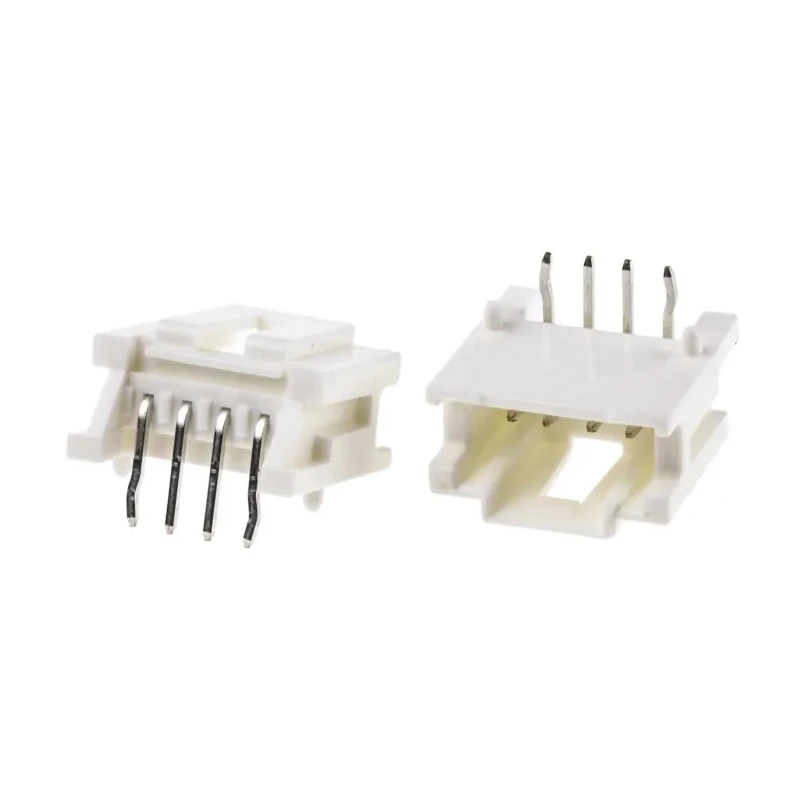

Molex MicroClasp Series Right Angle Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded 55935-0410

Name: Molex MicroClasp Series Right Angle Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded 55935-0410
Brand: Molex
SKU: 85205
Price: 0.7 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Contact Material	Tin
Series	MicroClasp
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance system
Number of Rows	1
Pitch	2mm
Standards/Approvals	UL 94V-0
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	2mm

Key Features

Designed for wire-to-board applications requiring compact PCB headers.
Single row configuration with right angle orientation, optimizing PCB space savings.
Features 2 mm pitch for dense electronic layouts.
Shrouded design ensures latch protection and secure retention during mating.
Contact material and plating are tin, supporting up to 3 A and 250 V operation.
Supports easy mating and unmating with an inner positive lock.
Termination type is solder for reliable and sturdy PCB mounting.
Operates reliably within a -40°C to 105°C temperature range for diverse environments.

Product Description

Molex 55935-0410 is a MicroClasp Series PCB header specially designed for electronic and industrial wire-to-board applications where compactness and reliability are critical. This right angle, through-hole PCB header contains four tin-plated contacts arranged in a single row, providing a 2 mm pitch for high-density placement and efficient space utilization on printed circuit boards.

The shrouded architecture delivers enhanced mating retention and latch protection, ensuring that connections remain secure even under vibration or repeated engagement. The header features an inner positive lock that produces an audible click upon connection, making assembly processes straightforward and confirming secure engagement.

Rated for a maximum current of 3 A and up to 250 V, the 55935-0410 supports robust performance in demanding electronic circuits. Tin contact material and plating offer reliable conductivity and corrosion resistance. The solder termination method guarantees strong mechanical anchoring to the PCB, ideal for environments subject to physical stress.

This model operates reliably from -40°C to 105°C, making it suitable for applications ranging from consumer electronics to industrial control systems. The housing incorporates a lance system, offering durable retention and protection for the terminal. Male contact gender, tail pin length of 3.2 mm, and mating pin length of 2 mm further ensure proper fit and versatile PCB design compatibility.

The MicroClasp Series is known for its easy mating/unmating and low insertion force due to its two-point contact design, accommodating fast, error-free installation even in automated production. Standards compliance with UL 94V-0 flammability rating ensures suitability for regulated environments.

Typical applications include data acquisition devices, industrial controls, sensor modules, telecommunications, and embedded systems. The product is manufactured in Japan, reflecting high-quality standards for reliability and performance.
