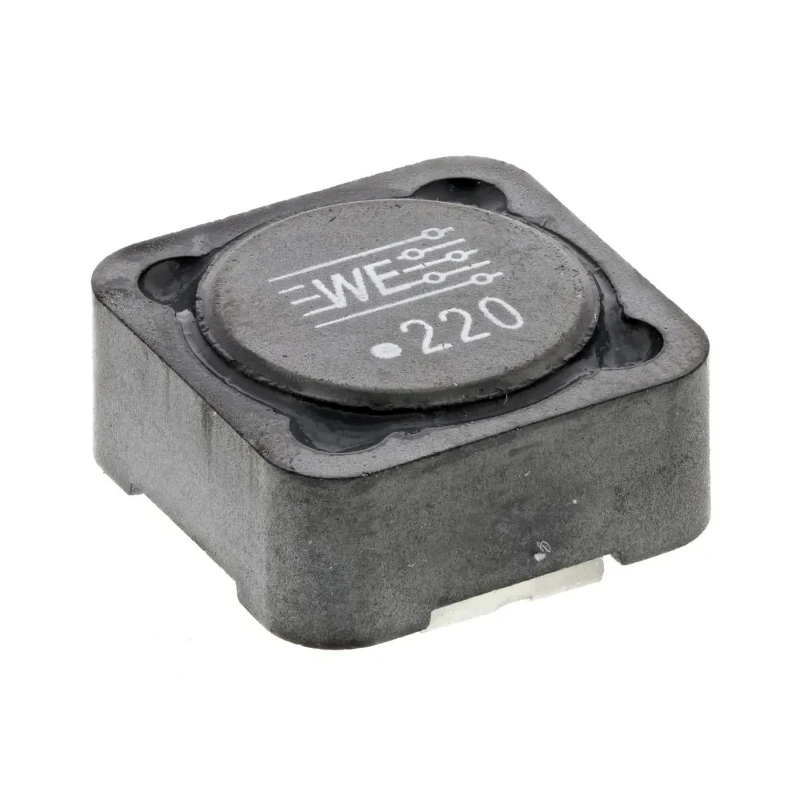

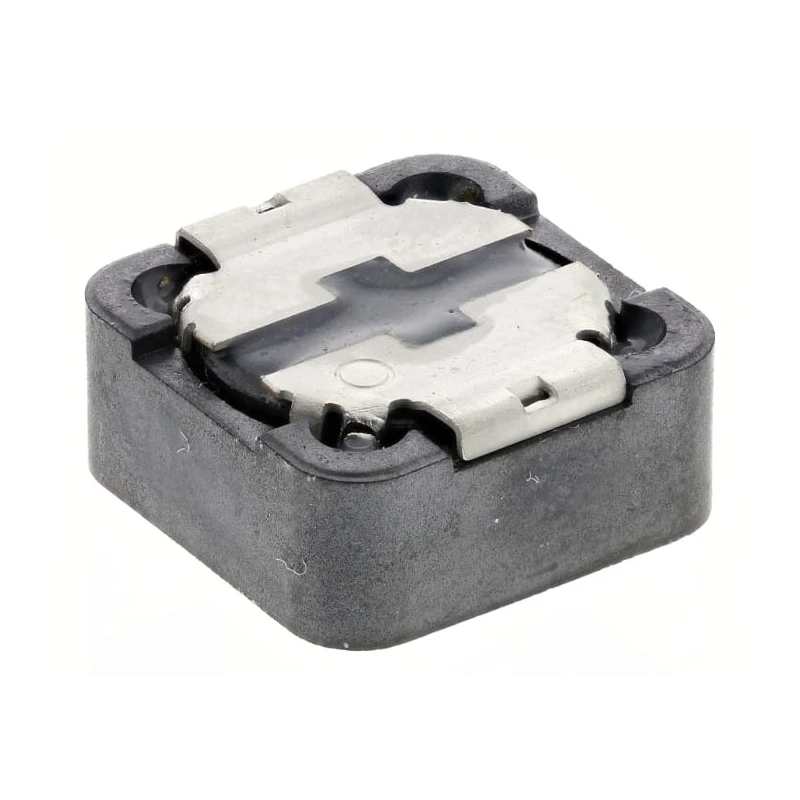

Wurth Elektronik WE-PD Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±20% 3.37A Idc 744771122
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3.37A |
| Maximum DC Resistance | 36mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Soldering Wire to Plating |
| Maximum Self Resonant Frequency | 13MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- Magnetically shielded design reduces leakage field for efficient operation.
- Constructed with a ferrite core and wirewound inductor construction.
- Operating temperature range from -40°C to 125°C complies with automotive standards AEC-Q200.
- Maximum DC resistance of 36mΩ ensures low power loss during use.
- Packaged in tape and reel format for easy assembly and automated insertion.
- Recommended reflow solder profile for reliable soldering performance.
- Maximum self-resonant frequency of 13MHz suitable for switching regulator applications.
- Inductance tolerance of ±20% for consistent electrical characteristics.
Product Description
Wurth Elektronik 744771122 WE-PD Shielded Wirewound Surface Mount Inductor features a ferrite core and wirewound construction delivering 22μH inductance with a ±20% tolerance. Designed for high efficiency and low leakage field performances, this inductor is magnetically shielded to meet stringent electronic component requirements.
It supports a maximum DC current of 3.37A and a maximum DC resistance of 36mΩ, contributing to low self-losses and high current handling capability. This surface mount device is compliant with automotive industry standards AEC-Q200, operating efficiently within a temperature range of -40°C to 125°C, making it suitable for automotive and industrial electronics applications.
With compact dimensions of 12mm length, 6mm height, and 12mm depth, it fits well into surface mount designs. The recommended solder profile for this component is reflow soldering, ensuring optimal assembly reliability.
This inductor is ideally used in switching regulators with low operating voltages, integrated DC/DC converters, and high efficiency graphic cards and power management systems. Its high storage capacity and shielding make it an excellent choice for electronic circuits requiring stable inductance and minimal electromagnetic interference.
Magnetically shielded design reduces leakage field for efficient operation. Constructed with a ferrite core and wirewound inductor construction. Operating temperature range from -40°C to 125°C complies with automotive standards AEC-Q200.
Maximum DC resistance of 36mΩ ensures low power loss during use. Packaged in tape and reel format for easy assembly and automated insertion. Recommended reflow solder profile for reliable soldering performance. Maximum self-resonant frequency of 13MHz suitable for switching regulator applications.
Compact dimensions: 12mm length, 6mm height, and 12mm depth. Inductance tolerance of ±20% for consistent electrical characteristics.
Used widely in industrial electronic manufacturing, automotive electronics, and high-performance switching power supplies, this surface mount inductor provides reliable performance and efficiency. It supports modern designs requiring enhanced magnetic shielding and low noise operation.
Explore further Wurth Elektronik products and similar Surface Mount Inductors on EnvMart for reliable sourcing and technical support.
