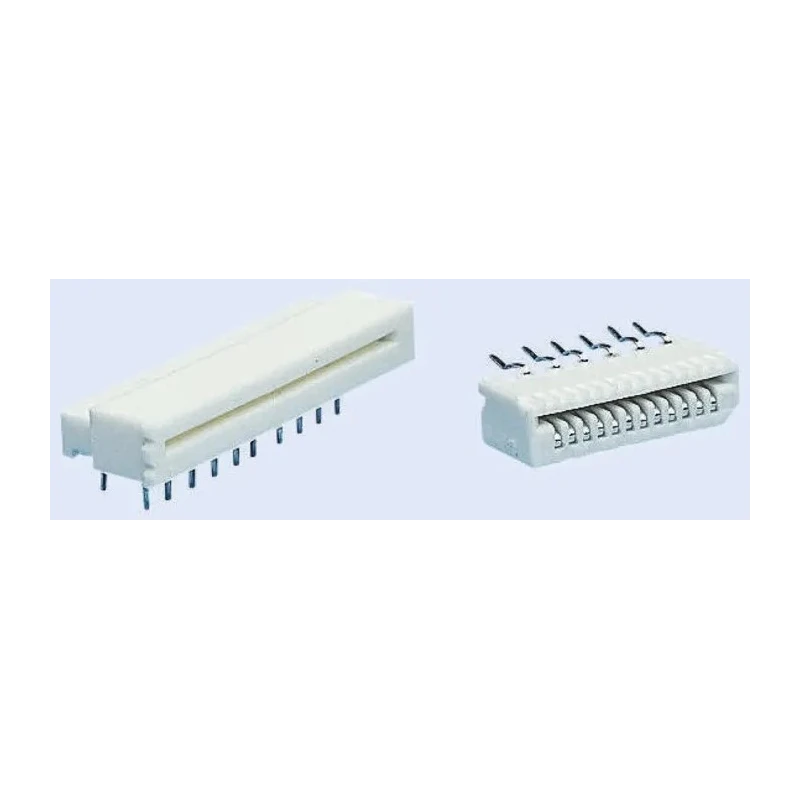

Molex 1.25 mm Pitch 16 Way Right Angle Female FPC Connector, Solder, Through Hole Mount 39-53-2164
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Zero Insertion Force (ZIF) design minimizes wear during repeated cycling.
- Slide type actuator ensures easy insertion and reliable connection.
- Constructed of phosphor bronze contacts with tin bismuth over nickel plating.
- Housing made of durable polybutylene terephthalate material.
- Supports 1 amp current and 200 volts voltage rating.
- Operating temperature range from -20°C to 80°C.
- Features locking mechanism for secure FPC retention.
- Ideal for electronic automotive and compact packaging applications.
Product Description
Molex 39-53-2164 is a high-quality 1.25 mm pitch 16 way right angle female FPC connector designed for through hole PCB mounting with solder termination. This connector is part of Molex's 5597 series, featuring a Zero Insertion Force (ZIF) mechanism to reduce wear during repeated insertions and removals of flexible printed circuits.
Constructed with phosphor bronze contacts plated with tin bismuth over nickel, and housed in polybutylene terephthalate, this connector ensures durability and reliable electrical performance. It supports a current rating of 1 amp and voltage rating of 200 volts, suitable for various electronic and automotive applications.
The slide type actuator provides an easy and secure connection, while the built-in locking mechanism guarantees that flexible printed circuits remain firmly in place. The right angle orientation facilitates space saving on the circuit board, making it ideal for compact designs where PCB real estate is limited.
Operating temperature ranges from -20°C to 80°C, allowing usage in a variety of environments. The single row, 16-contact configuration with staggered solder tails improves solder joint reliability during assembly processes.
This connector is commonly used in industrial electronic designs, automotive electronics, consumer devices, and other fields where reliable, compact FPC connections are essential. Zero Insertion Force (ZIF) design minimizes wear during repeated cycling.
Slide type actuator ensures easy insertion and reliable connection. Constructed of phosphor bronze contacts with tin bismuth over nickel plating. Durable polybutylene terephthalate housing material. 1 amp current rating and 200 volts voltage rating.
Operating temperature from -20°C to 80°C. Locking mechanism to secure FPC. Right angle orientation for space saving on PCB. Single row with staggered solder tails. For additional information and compatible components, explore the FPC Connector category at EnvMart.
