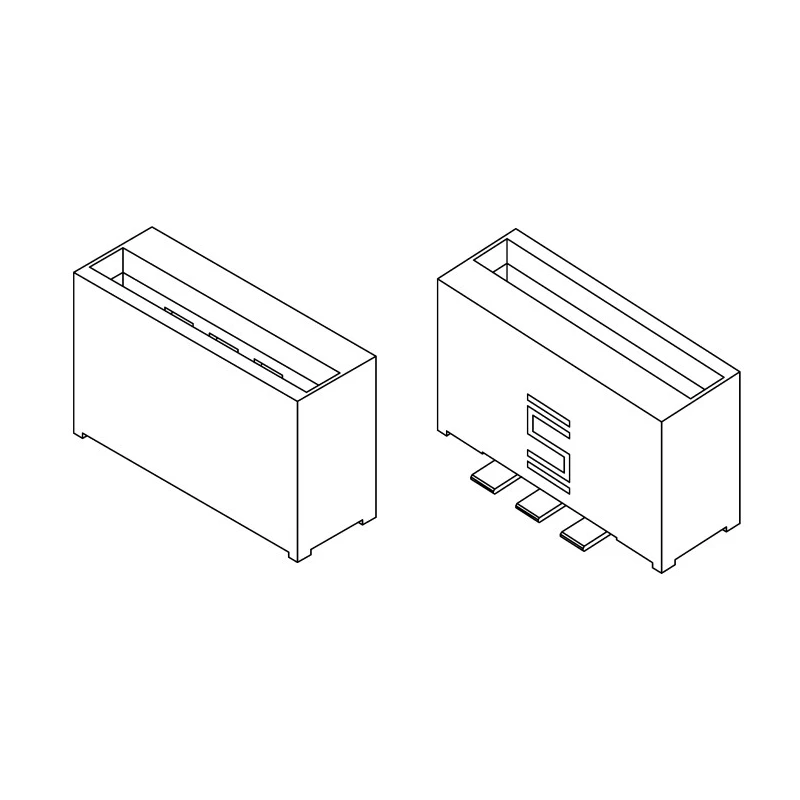

Samtec PEC Series Straight Edge Connector Female 7-Contacts 2.54 mm Pitch 1 Row Surface Mount Solder PEC-07-02-T-S-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 9.8A |
| Model | PEC-07-02-T-S-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | PEC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
Key Features
- The connector supports a pitch of 2.54 mm and a single row configuration.
- It carries a current rating of 9.8 A and voltage rating of 250 V AC.
- Contacts are made from beryllium copper alloy plated with tin over nickel for durability and conductivity.
- The housing is constructed from liquid crystal polymer ensuring high temperature resistance between -55°C and 105°C.
- This connector is part of the PEC series and accommodates 0.8 mm thick cards in power edge card interface applications.
- Designed with locking clips to improve mechanical stability during surface mount processes.
- The package includes the connector supplied in a tube format ready for insertion into PCBs.
Product Description
Samtec PEC-07-02-T-S-LC is a female straight edge connector designed for surface mounting in electronic and power connector applications. Featuring 7 contacts arranged in a single row with a 2.54 mm pitch, it provides a reliable electrical interface compatible with 0.8 mm thick edge cards.
The connector's contacts are manufactured using beryllium copper alloy and plated with tin over nickel to ensure excellent electrical conductivity and resistance to corrosion. The housing material is liquid crystal polymer which offers durability and operational stability under wide temperature ranges from -55°C up to 105°C.
This PEC series product incorporates locking clips to secure the connector onto the PCB and prevent dislodgement during mechanical stress or vibration. It supports a current rating up to 9.8 A and voltage rating of 250 V AC, making it suitable for power edge card interface uses in various industrial electronic equipment.
The compact dimensions, including an above-board height of 7.9 mm and body width of 4.45 mm, optimize PCB space management. Post length for through-hole versions is 1.86 mm, though this particular model is SMT with solder termination.
Straight orientation for edge card connectivity. Female connector type with 7 contacts in a single row. 2.54 mm pitch ideal for standard PCB designs. Durable beryllium copper alloy contacts with tin over nickel plating. High-performance liquid crystal polymer housing for thermal stability.
Supports current of 9.8 A and voltage of 250 V AC. Includes locking clips for secure PCB mounting.
This Edge Connector is typically used in industrial electronics, power distribution boards, and high reliability communication equipment where secure and stable edge card interface connections are required. The product is supplied in a tube packaging suitable for automated assembly processes.
Explore EnvMart for more connectors and electronic components by Samtec, along with CAD models and technical resources to assist in design and manufacturing workflows.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm, designed for standard PCB layouts.
It supports a current rating of 9.8 A and a voltage rating of 250 V AC.
The contacts are made from beryllium copper alloy, plated with tin over nickel, while the housing is constructed from liquid crystal polymer.
This connector operates within a temperature range of -55°C to 105°C.
It features 7 contacts arranged in a single row.
This model is designed for surface mounting (SMT) applications.
Yes, it is designed with locking clips to enhance mechanical stability during surface mount processes.
The connector has a straight orientation, suitable for edge card connectivity.
The body width is 4.45 mm and the above-board height is 7.9 mm, optimizing PCB space management.
It accommodates 0.8 mm thick edge cards, making it suitable for power edge card interface applications.
This connector is commonly used in industrial electronics, power distribution boards, and high reliability communication equipment.
The PEC-07-02-T-S-LC features a solder termination type for secure connections.
