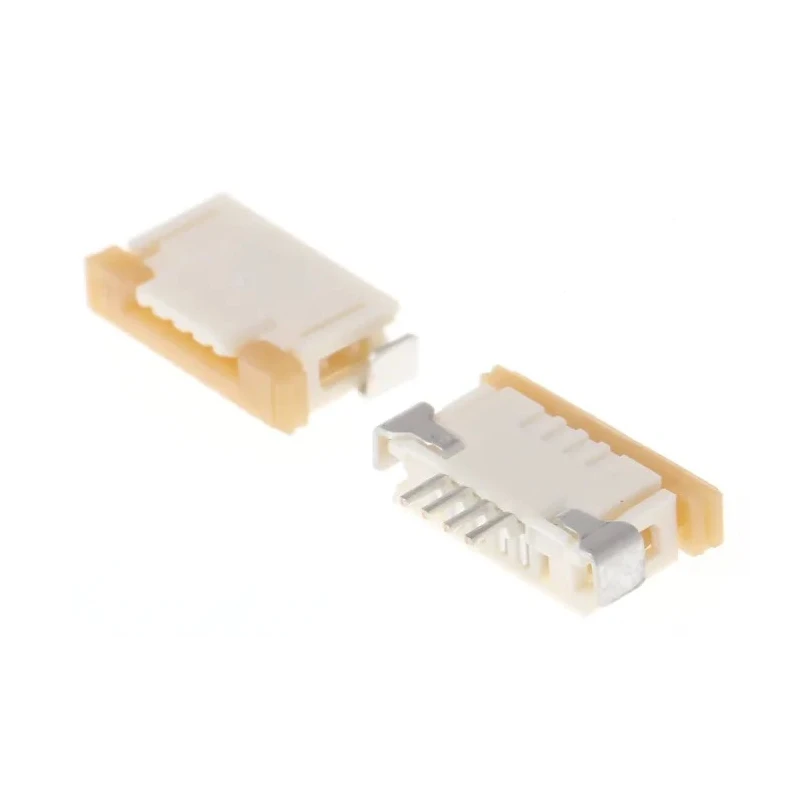

Molex 1 mm Pitch 4 Way Right Angle Female FPC Connector ZIF Top Contact 52207-0433
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52207 |
| Termination Type | ZIF Top Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Silver |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features a 1.00 mm pitch and four contacts for precise connectivity.
- Right angle, female connector designed for surface mount applications.
- Utilizes Zero Insertion Force (ZIF) top contact for easy cable insertion and removal.
- Constructed with phosphor bronze contacts plated with silver for durability.
- Nylon housing provides excellent insulation and mechanical stability.
- Rated for 125 V voltage and 1 A current for moderate electronic loads.
- Operating temperature range from -30°C to 85°C suitable for various environments.
- Includes locking mechanism to secure cable and ensure reliable connection.
Product Description
Molex 52207-0433 1 mm Pitch 4 Way Right Angle Female FPC Connector features a Zero Insertion Force (ZIF) top contact design enabling easy and secure cable connections. Its right angle orientation and compact 1.00 mm pitch make it suitable for tight packaging in modern electronic assemblies.
This connector houses four phosphor bronze contacts plated with silver to ensure optimal conductivity and resistance to corrosion. The nylon housing provides reliable insulation and mechanical durability. A locking mechanism is integrated to lock the FPC cable firmly in place, improving connection stability.
The connector supports a voltage rating of 125 V and current capacity of 1 A with an operating temperature range from -30°C to 85°C, making it applicable in demanding automotive, consumer, medical, and telecommunications devices.
Its slide-type actuator enables repeat cycling with minimal contact wear, ensuring longevity in usage. Right angle mounting with solder tabs enhances PCB retention and strain relief, safeguarding solder joints during assembly and operation.
Applications include automotive navigation and audio equipment, digital cameras, home security systems, tablet and notebook PCs, patient monitoring devices, GPS units, and smartphones. This connector is part of Molex's 52207 series FPC Connectors designed for space-saving and high-reliability interconnection solutions.
1.00 mm pitch, 4 contacts female connector suited for ZIF top contact applications. Right angle orientation with surface mount technology for PCB integration. Silver plated phosphor bronze contacts for enhanced electrical and mechanical properties.
Nylon housing providing insulation and robustness. Locking mechanism and slide actuator ensure secure, repeatable connection cycles. Rated at 125 V and 1 A suitable for a range of moderate power electronic devices. Operating temperature range from -30°C to 85°C for diverse environments.
Applications span automotive, consumer electronics, medical, and communications sectors. EnvMart offers this Molex 52207-0433 connector ideal for high-density FPC interconnections, ensuring reliable performance in critical industrial and commercial electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 52207-0433 connector features a pitch of 1.00 mm.
This connector is rated for a voltage of 125 V and a current capacity of 1 A.
It is constructed with phosphor bronze contacts plated with silver and a nylon housing for insulation and mechanical stability.
The operating temperature range for this model is from -30°C to 85°C.
The Molex 52207-0433 connector has four contacts.
This model supports surface mount technology with a right angle orientation.
The termination type for this connector is Zero Insertion Force (ZIF) top contact.
It is suitable for applications in automotive navigation, digital cameras, home security systems, and various consumer electronics.
Yes, it includes a locking mechanism to secure the cable and ensure a reliable connection.
The contacts in this connector are female.
The slide-type actuator enables repeat cycling with minimal contact wear, enhancing the longevity of the connector.
This connector is part of the Molex 52207 series of FPC connectors.
