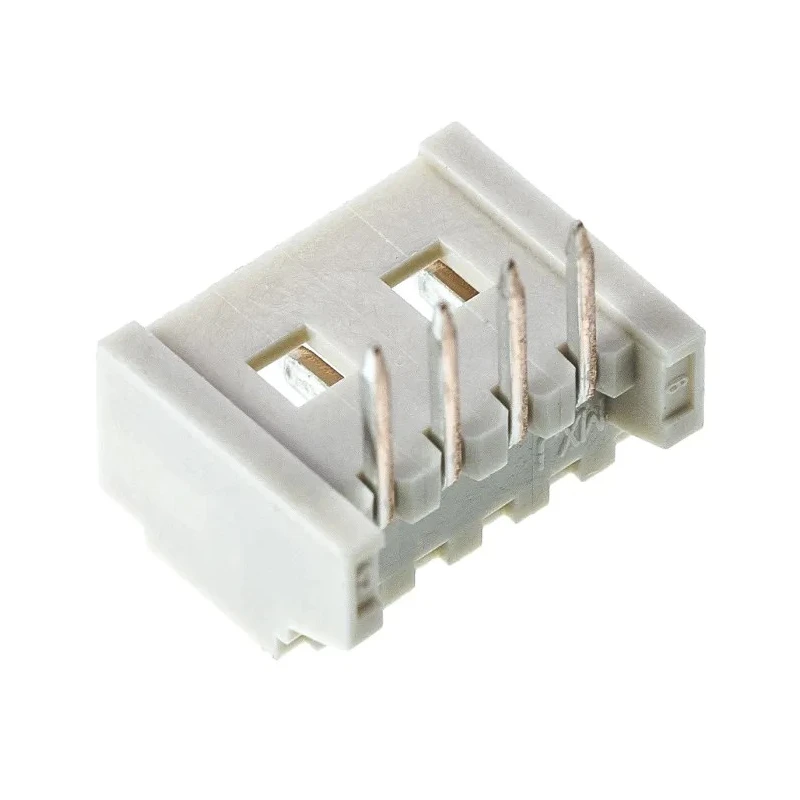

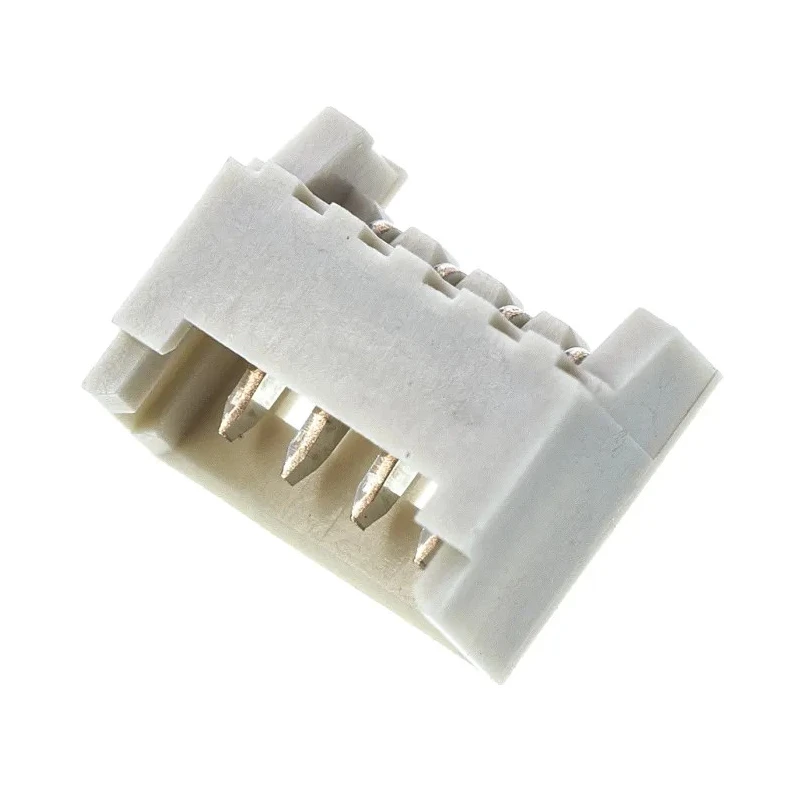

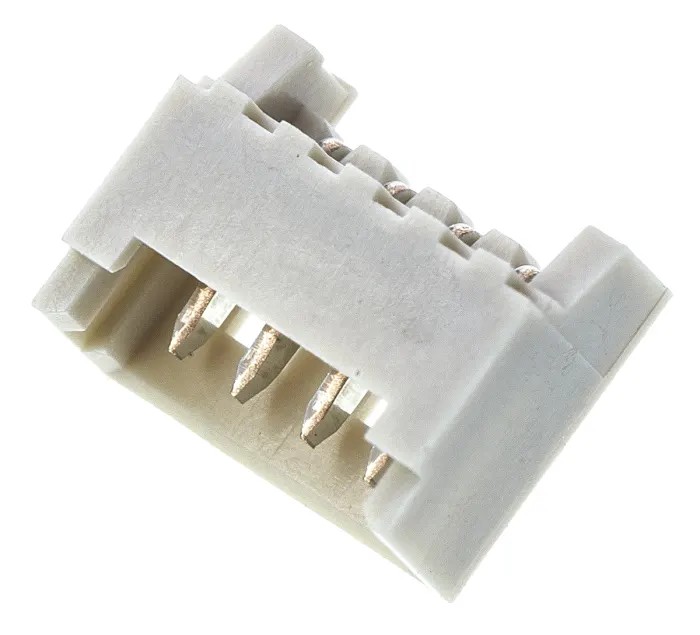

Molex PicoBlade Series Right Angle Through Hole PCB Header 4 Contact 1.25 mm Pitch 1 Row Shrouded 53048-0410
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |

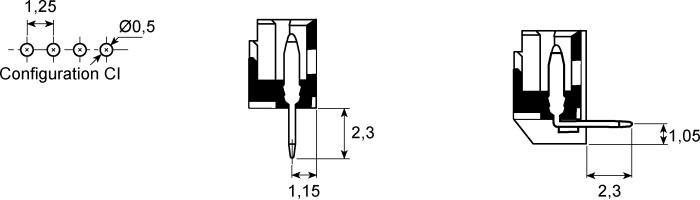

| Tail Pin Length | 2.3mm |
Key Features
- Compact 1-row design with four male contacts for wire-to-board connection.
- Operates at up to 1A current with tin-plated phosphor bronze contacts.
- Nylon housing provides electrical insulation and mechanical durability.
- Right angle orientation saves PCB space and improves packing efficiency.
- Wide operating temperature range from -40°C to 85°C for reliable use in harsh environments.
- Features a shrouded connector system for added contact protection and secure mating.
- Tail pin length measures 2.3 mm to ensure robust solder joint strength.
- Solder termination type designed for through hole mounting on PCBs.
Product Description
Molex 53048-0410 is a PicoBlade Series right angle through hole PCB header featuring 4 contacts arranged in a single row with a 1.25 mm pitch designed for wire-to-board connectivity. The male terminal pins have phosphor bronze contact material with tin plating, optimized for a maximum current of 1A and voltage rating of 125V. This connector has a nylon housing that insulates electrically while providing a durable frame resistant to mechanical stress.
The connector operates over a broad temperature range from -40°C to 85°C, making it suitable for demanding industrial, automotive, medical device assemblies, data centers, and security systems that require reliable signal transmission and connection integrity. The shrouded design enhances contact protection, and the friction locking mechanism keeps the terminals securely mated even in conditions with vibration or jostling.
The right angle orientation helps maximize PCB space utilization, ideal for compact electronic assemblies. The tail pin length of 2.3 mm and solder termination type ensure robust through hole mounting with enhanced mechanical stability. This connector does not come with specific approval certifications but conforms to high-quality manufacturing standards at the Molex facility in Japan.
Compact 1.25 mm pitch with space saving design reduces PCB footprint by up to 45% compared to 2.0 mm pitch systems. Reliable electrical conductivity through tin-plated phosphor bronze contacts rated for 1A current. Durable nylon housing providing insulation and mechanical protection.
Shrouded single row right angle connector enhances PCB packing efficiency and protects contacts. Suitable for automotive, medical technology, data and control centers, and security system applications. Friction locking mechanism prevents accidental unmating from mishandling or vibration.
Designed for through hole solder mounting with secure tail pins and solder tabs support. Explore more PCB connectors and headers from Molex on EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex PicoBlade Series right angle through hole PCB header is rated for a maximum current of 1A.
This model features a contact pitch of 1.25 mm.
The voltage rating for this PCB header is 125V.
The housing is made of nylon, and the contacts are made of phosphor bronze with tin plating.
The tail pin length measures 2.3 mm, ensuring a robust solder joint strength.
It operates over a wide temperature range from -40°C to 85°C.
This connector has a total of 4 male contacts.
The termination type is solder, designed for through hole mounting on PCBs.
This model features a right angle orientation, which helps save PCB space.
Yes, it features a shrouded connector system for added contact protection and secure mating.
The connector is manufactured in Japan.
This model is suitable for applications in automotive, medical technology, data centers, and security systems.
