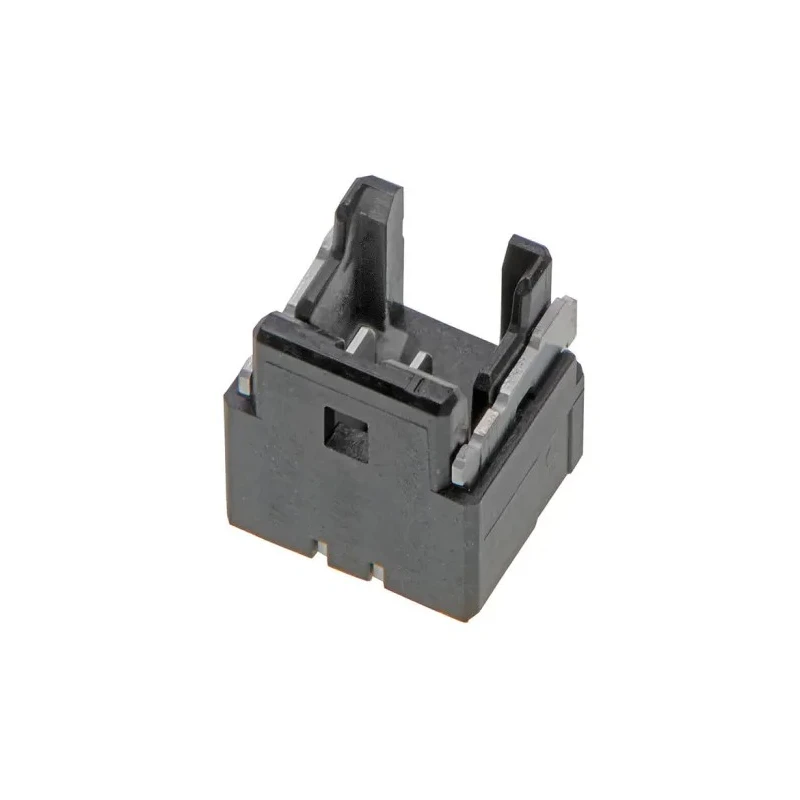

Molex OneBlade Series Vertical Surface PCB Header 3 Contacts 1 mm Pitch 2 Row Shrouded 214094-0030

Free Delivery in India | Lowest Global Shipping Charges

Molex OneBlade Series Vertical Surface PCB Header 3 Contacts 1 mm Pitch 2 Row Shrouded 214094-0030

Name: Molex OneBlade Series Vertical Surface PCB Header 3 Contacts 1 mm Pitch 2 Row Shrouded 214094-0030
Brand: Molex
SKU: 114882
Price: 0.79 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand Molex Condition New

Specifications

Country of Origin	Korea
Brand	Molex
Orientation	Vertical
Current	2.5A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Brass
Series	OneBlade
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1mm
Standards/Approvals	China RoHS compliant, EU RoHS
Contact Plating	Matt Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2mm

Key Features

The header features a 2-row, shrouded design for secure mating.
Constructed from polyamide housing and brass contacts plated with matt tin for corrosion resistance.
Rated for 2.5A current and supports operating temperatures from -40°C to +105°C.
Surface mount type with solder termination and vertical orientation.
Durable for up to 30 mating cycles with a 2 mm mating pin length.
Complies with China RoHS and EU RoHS environmental standards.

Product Description

Molex 214094-0030 is a high-quality OneBlade Series vertical surface PCB header designed for electronic and industrial applications requiring board-to-wire connections. Featuring 3 contacts arranged in 2 rows with a 1 mm pitch, this shrouded connector ensures secure and reliable electrical connections on printed circuit boards. It is engineered with a polyamide housing that provides excellent insulation and mechanical stability while brass contacts plated with matt tin enhance the contact conductivity and corrosion resistance.

Configured for surface mount placement with solder termination, the vertical orientation allows for compact PCB layouts. Rated for continuous current of 2.5 amperes, the header is suitable for various industrial, commercial, and electronic assembly applications. The operating temperature range from -40°C to +105°C assures performance stability in demanding environments.

The product supports a maximum of 30 mating cycles, providing durability and repeatable connection integrity essential for maintenance and testing procedures. With a mating pin length of 2 mm, it fits securely to complement compatible Molex connectors.

This PCB header aligns with international environmental standards, being China RoHS and EU RoHS compliant, making it a safe choice for environmentally conscious product designs. Originating from Korea, Republic Of, this component exemplifies modern connector technology for industrial electronics, manufacturing, and assembly processes.

The header features a 2-row, shrouded design for secure mating. Constructed from polyamide housing and brass contacts plated with matt tin for corrosion resistance. Rated for 2.5A current and supports operating temperatures from -40°C to +105°C.

Surface mount type with solder termination and vertical orientation. Durable for up to 30 mating cycles with a 2 mm mating pin length. Complies with China RoHS and EU RoHS environmental standards. Explore more high-quality PCB connectors and components in the Electronics Components category on EnvMart to meet diverse industrial connectivity needs.
