Molex Slim-Grid Series Straight Surface PCB Socket 24-Contact 2 Row 1.27 mm Pitch Solder 78120-2407

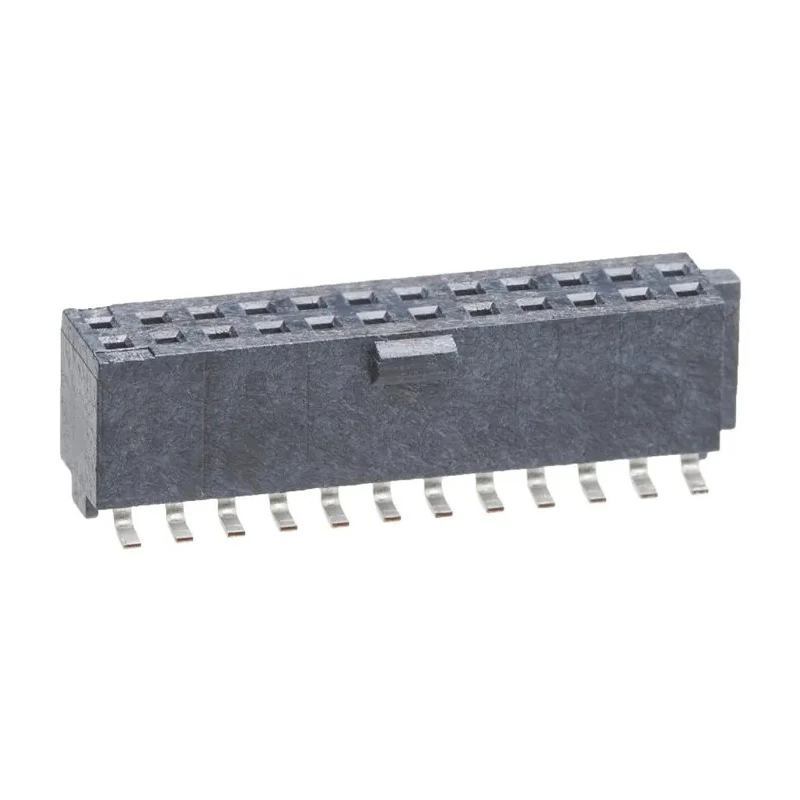

Molex 78120-2407 Slim-Grid Series Straight Surface PCB Socket is a high-density 24-contact, 2-row PCB socket designed with a 1.27 mm pitch and solder termination suitable for surface mount technology. This board-to-board connector features a precise liquid crystal polymer housing and copper contacts plated with gold, ensuring excellent electrical performance and corrosion resistance. The straight orientation and surface mount design facilitate reliable assembly on printed circuit boards in complex electronic devices.

Engineered with polarization slots and tabs, the connector guards against incorrect orientation, preventing mismating during installation. Locking ramps on the socket create a robust mechanical connection when mated with the header, enhancing long-term durability in demanding environments. The compact 1.27 x 1.27 mm grid pattern supports high-density applications commonly found in automotive electronics, industrial machinery, consumer electronics such as smartphones, routers, and control boards.

Operating reliably across a wide temperature range from -55°C to +105°C, this PCB socket supports voltages up to 125V and current up to 1.4A. The 2 mm row pitch and female contact gender further ensure tight connections within board-to-board connector systems. Its solder termination and surface mount design facilitate effective manufacturing processes for mass production.

High-density 1.27 x 1.27 mm grid design supports compact PCB layouts. Polarization features prevent incorrect orientation and mismating. Locking ramps provide secure mating connection and mechanical stability. Liquid crystal polymer housing offers durable protection and insulation.

Copper contacts plated with gold ensure excellent conductivity and corrosion resistance. Wide operating temperature from -55°C to 105°C for reliability in harsh conditions. Rated for 125V voltage and 1.4A current, suitable for moderate power applications.

Surface mount, straight orientation design for efficient PCB assembly. Ideal for automotive, industrial, consumer electronics, white goods, routers, switches, and portable devices. No special certifications required; standard industrial connector compliance.

This Molex Slim-Grid PCB Socket series is suited for high-density board-to-board connections in industrial, automotive, consumer electronics, HVAC, and manufacturing environments where reliable electrical and mechanical performance is essential. Browse the complete range of PCB Sockets and connectors on EnvMart for compatible components and solutions.
