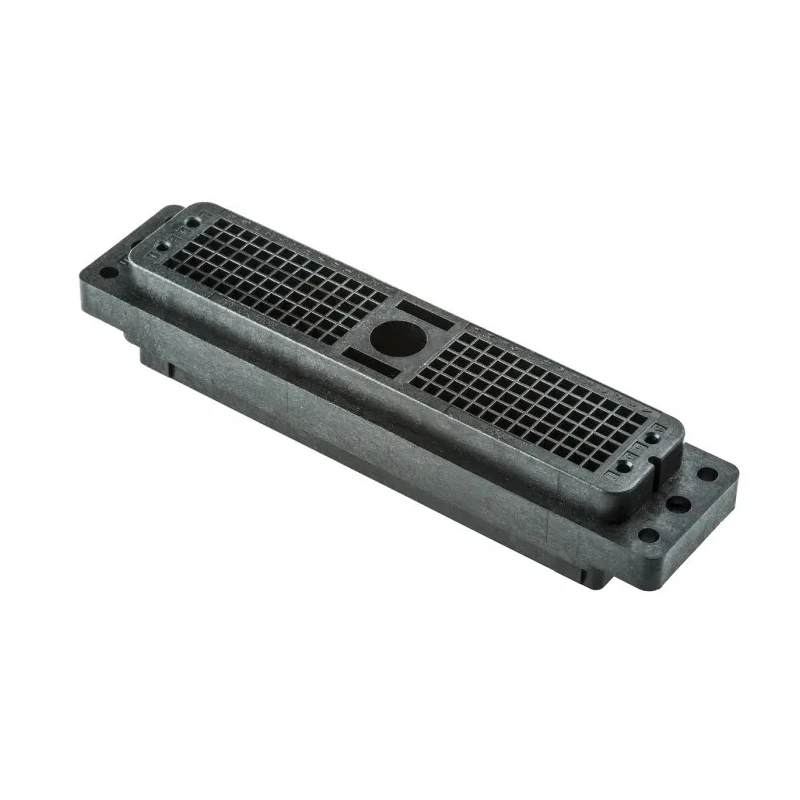

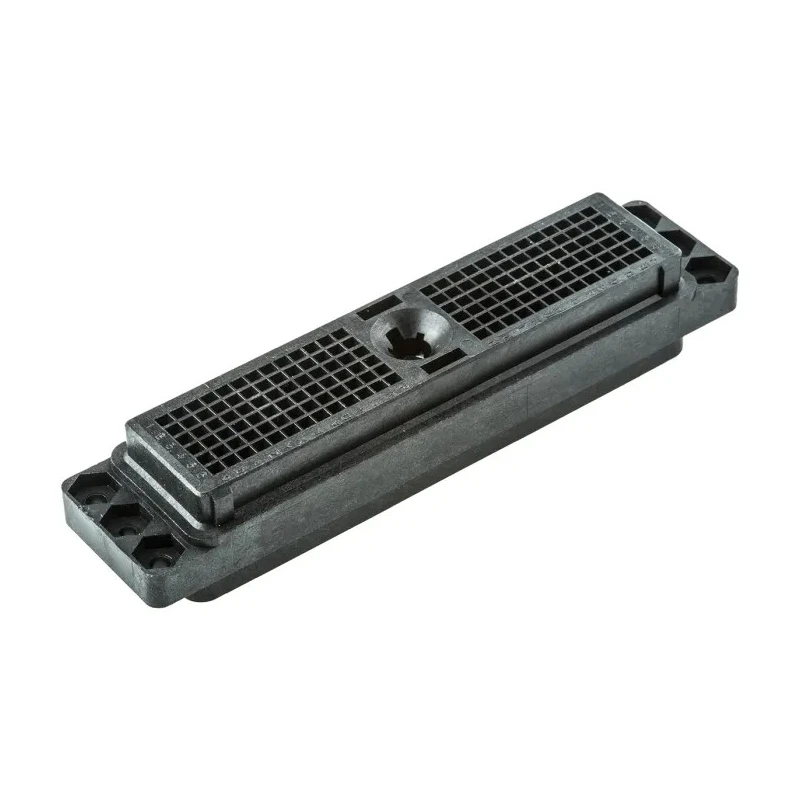

ITT Cannon DL 156 Way Straight Panel D-Sub Connector Female 086-0030-000

ITT Cannon 086-0030-000 DL series 156 Way Straight Panel D-Sub Connector Female is a high-performance electronic component designed for demanding industrial, broadcasting, avionics, and medical instrumentation applications. It features a robust thermoplastic housing that ensures mechanical durability and electrical insulation under harsh operating conditions.

The connector supports up to 156 contacts with a current rating of 5A and a voltage rating of 1000V AC, enabling multi-wire power and signal transmission. The beryllium copper alloy contacts are gold plated for enhanced conductivity and corrosion resistance. Its termination is by crimp, providing reliable and secure connections.

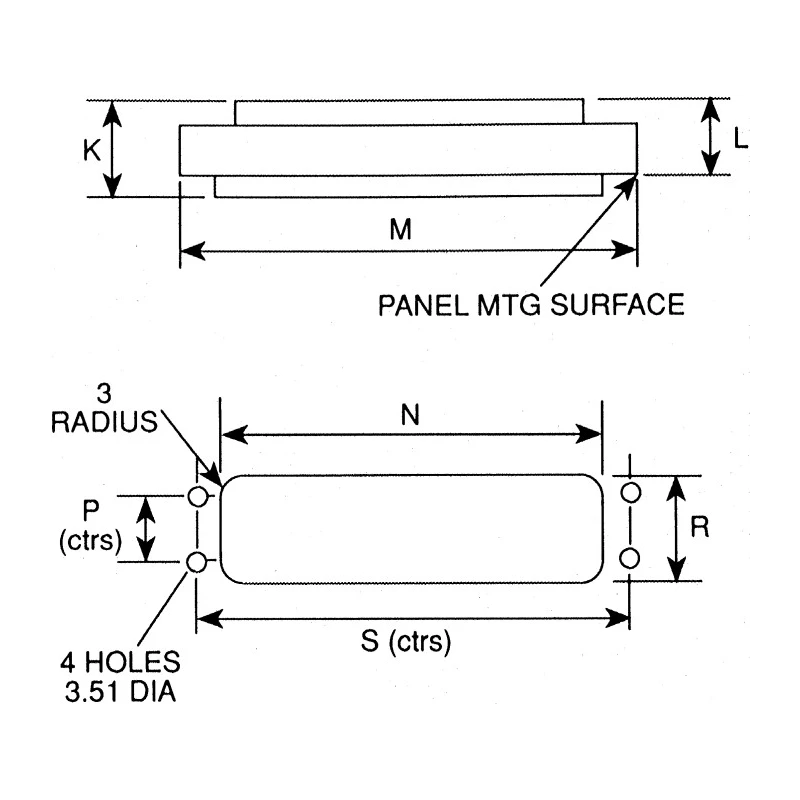

With a straight orientation and panel mount configuration, it offers convenient assembly and integration into various equipment. The connector operates in a wide temperature range from -55°C to 105°C, making it suitable for harsh environments.

The DL series includes features such as cam actuated zero insertion force coupling for quick and durable mating, strain relief options, and polarization to prevent incorrect connections. It’s compliant with industry standards ANSI/ESD S20.20 and BS EN 61340-5-1, ensuring safety and performance benchmarks.

This connector is widely used in avionics for reliable signal and power connections, broadcast industry applications requiring high-density connections, computers, and sophisticated medical instrumentation.

Features a 156-contact configuration for high-density connections. Rated for 5A current with 1000V AC voltage capacity. Constructed with thermoplastic housing for durability and insulation. Operates reliably in a temperature range from -55°C to 105°C.

Offers straight orientation and panel mount type for flexible installation. Termination type is crimp to ensure secure electrical contact. Female gender connector with gold-plated contacts to ensure excellent conductivity and corrosion resistance.

Complies with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards. Ideal for applications in broadcast, avionics, computing, and instrumentation equipment. Part of the DL series known for zero insertion force cam actuated coupling.
