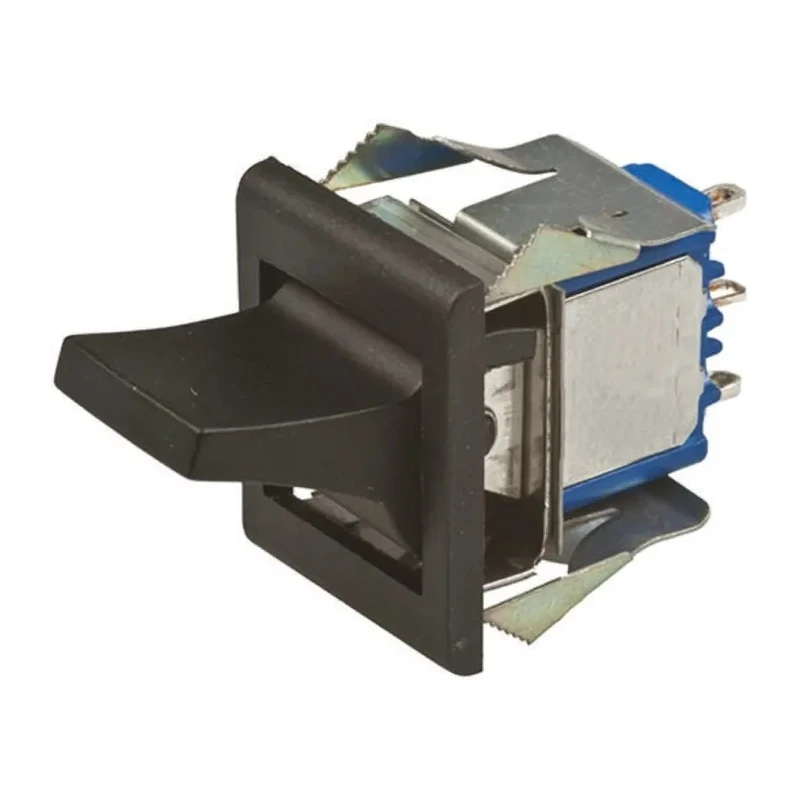

APEM DPDT Rocker Switch Panel On-Off-On, 6A Contact Current, 30V DC, 7000 Series, Model 7649AD+U1202+U702
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 7649AD+U1202+U702 |
| Mount Type | Panel |
| Housing Material | Diallyl Phthalate |
| Series | 7000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.5 x 15 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, VDE, UL |
| Switch Operation | On-Off-On |
| Actuator Colour | Black |
| Contact DC Voltage | 30V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 6A |
| Mechanical Life | 100000Operations |
Key Features
- The panel cutout size is 12.5 x 15 mm, suitable for precise installation.
- Non-illuminated switch ideal for clear operation without distractions.
- Mechanical life rated for 100,000 operations ensuring long-term reliability.
- Operates effectively in a temperature range from -40°C to 85°C.
- Meets safety standards CSA, VDE, and UL for trusted quality assurance.
- Terminal type is solder with a DPDT contact configuration for dual-pole switching.
- Part of the 7000 series with a versatile paddle style actuator.
Product Description
APEM 7649AD+U1202+U702 DPDT Rocker Switch Panel is engineered for precise electrical switching applications, designed for panel mounting with a compact cutout size of 12.5 x 15 mm. This On-Off-On configuration switch supports a 6 amp contact current and operates up to 30 volts DC. Its diallyl phthalate housing material offers excellent insulation and mechanical stability suitable for industrial and automation systems.
The black rectangular actuator provides a comfortable tactile feedback with a paddle style ideal for control panels in manufacturing, electrical automation, and HVAC environments. Rated for 100,000 mechanical operations, this switch ensures durability and long service life under challenging industrial conditions.
Temperature tolerance ranges from -40°C to a maximum of 85°C, allowing operation in diverse and demanding environmental settings. The solder terminal type enhances secure and stable electrical connections in installed circuits.
Certified to comply with stringent international standards such as CSA, VDE, and UL, this rocker switch offers trusted and verified safety and quality for professional use. Its DPDT dual-pole, double-throw contact configuration enables complex switching needs within compact panel layouts.
The panel cutout size is 12.5 x 15 mm, suitable for precise installation. Non-illuminated switch ideal for clear operation without distractions. Mechanical life rated for 100,000 operations ensuring long-term reliability.
Operates effectively in a temperature range from -40°C to 85°C. Meets safety standards CSA, VDE, and UL for trusted quality assurance. Terminal type is solder with a DPDT contact configuration for dual-pole switching. Part of the 7000 series with a versatile paddle style actuator.
This rocker switch panel is suitable for a wide range of industrial, laboratory, HVAC, and electrical automation applications requiring compact, reliable switching solutions. Its robust construction and compliance with international standards make it a preferred choice for electrical panels and control systems.
Explore more APEM products and additional Rocker Switches to find components tailored to your specific technical requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rocker switch has a contact current rating of 6A.
This model operates at a maximum contact DC voltage of 30V.
It operates effectively within a temperature range of -40°C to 85°C.
The required panel cutout size for this switch is 12.5 x 15 mm.
This rocker switch is rated for 100,000 mechanical operations.
It uses a solder terminal type for secure electrical connections.
It meets safety standards including CSA, VDE, and UL.
The actuator style is rectangular, providing comfortable tactile feedback.
The housing material is made of diallyl phthalate, offering insulation and stability.
No, this is a non-illuminated switch, designed for clear operation without distractions.
This model is part of the 7000 series of rocker switches.
It is suitable for industrial, laboratory, HVAC, and electrical automation applications.
