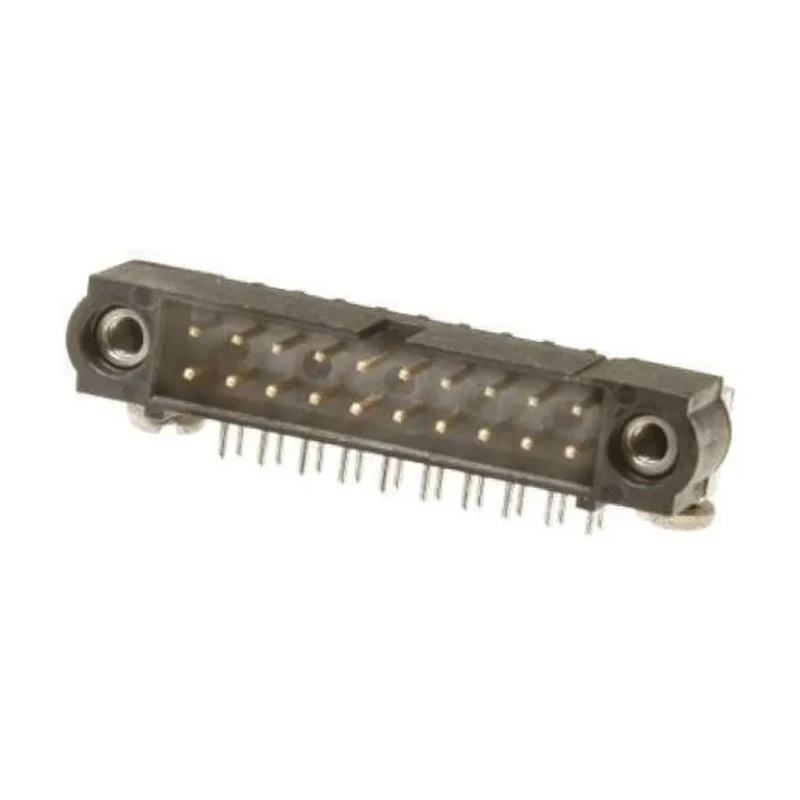

HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header 26 Contacts 2 mm Pitch 2 Row Shrouded M80-5402642
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 3A |
| Model | M80-5402642 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate J-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- Designed with high-quality polyphenylene sulphide housing for durability.
- Features gold-plated phosphor bronze contacts for excellent conductivity.
- Supports a current rating of 3A and voltage of 120V.
- Right angle orientation with shrouded connector system enhances safety.
- Tail pins measure 3 mm, suitable for solder termination.
- Operating temperature range from -55°C to 125°C for harsh environments.
- Compatible with industry standards including BS9525-F0033, MIL C 55302, CEC 75101-008.
- Manufactured in the United Kingdom with assured quality and reliability.
Product Description
HARWIN M80-5402642 Datamate J-Tek Series Right Angle Through Hole PCB Header features a 2 mm pitch and 26 male contacts arranged in 2 rows. This shrouded connector is designed for secure, high-reliability board-to-board and wire-to-board applications, supporting a current of 3A and operating voltage of 120V.
The connector housing is composed of robust polyphenylene sulphide, ensuring durability under harsh conditions, while gold-plated phosphor bronze contacts provide excellent electrical performance and corrosion resistance. Its right angle orientation and shrouded design offer safety and protection against misalignment and damage.
Tail pins extend 3 mm for effective soldering termination, making installation straightforward in through-hole mounting applications. Suitable for industrial, electronic manufacturing, and high-vibration environments, it meets rigorous standards such as BS9525-F0033, MIL C 55302, and CEC 75101-008, assuring compatibility and quality.
The Datamate J-Tek range is ideal for critical safety applications requiring high mating cycle durability and resistance to shock, vibration, and acceleration. Manufactured in the United Kingdom, this connector series delivers reliable performance in demanding electronic component assemblies.
Designed with high-quality polyphenylene sulphide housing for durability. Features gold-plated phosphor bronze contacts for excellent conductivity. Supports a current rating of 3A and voltage of 120V. Right angle orientation with shrouded connector system enhances safety.
Tail pins measure 3 mm, suitable for solder termination. Operating temperature range from -55°C to 125°C for harsh environments. Compatible with industry standards including BS9525-F0033, MIL C 55302, CEC 75101-008. Manufactured in the United Kingdom with assured quality and reliability.
Explore EnvMart's comprehensive PCB Headers categories for more high-quality components fitting a wide range of industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and an operating voltage of 120V.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The connector features a total of 26 male contacts arranged in 2 rows.
The housing is made from polyphenylene sulphide, and the contacts are gold-plated phosphor bronze for excellent conductivity.
It uses a solder termination type, with tail pins measuring 3 mm for effective soldering.
This connector has a right angle orientation, which enhances safety and protection against misalignment.
It is compatible with several industry standards, including BS9525-F0033, MIL C 55302, and CEC 75101-008.
It is designed for board-to-board and wire-to-board applications, particularly in industrial and electronic manufacturing environments.
The pitch size for this model is 2 mm, which is standard for many PCB applications.
This product is manufactured in the United Kingdom, ensuring quality and reliability.
It supports both board-to-board and wire-to-board connector systems, making it versatile for various setups.
The shrouded design enhances safety by protecting against misalignment and damage during installation.
