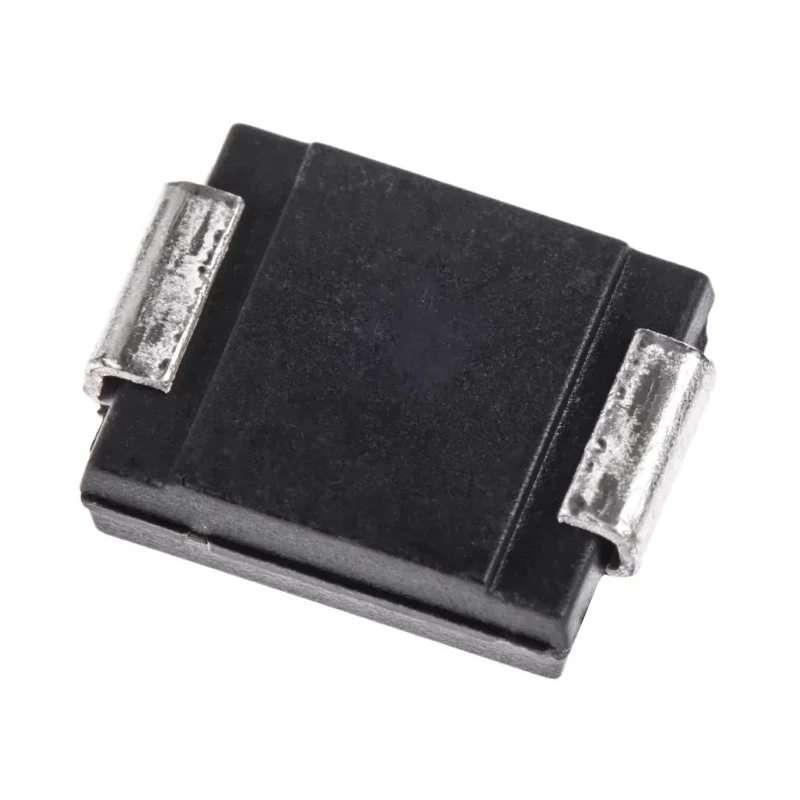

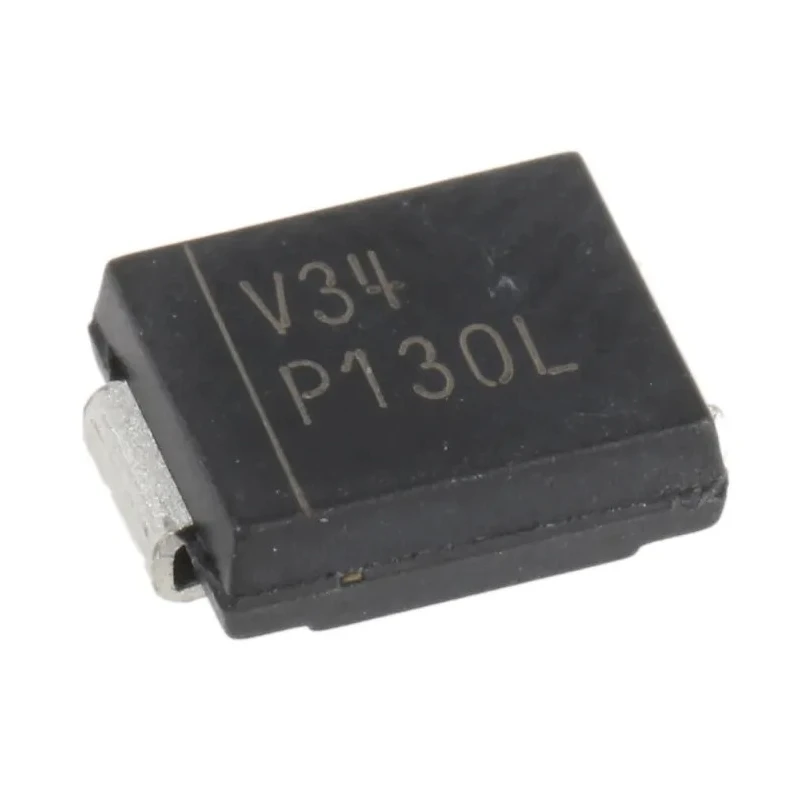

Vishay 40 V 4 A Schottky Diode Surface Mount DO-214AB 2-Pin VS-MBRS340-M3/9AT
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Length | 7.11mm |
| Model | VS-MBRS340-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.6kA |
| Maximum Forward Voltage Vf | 0.43V |

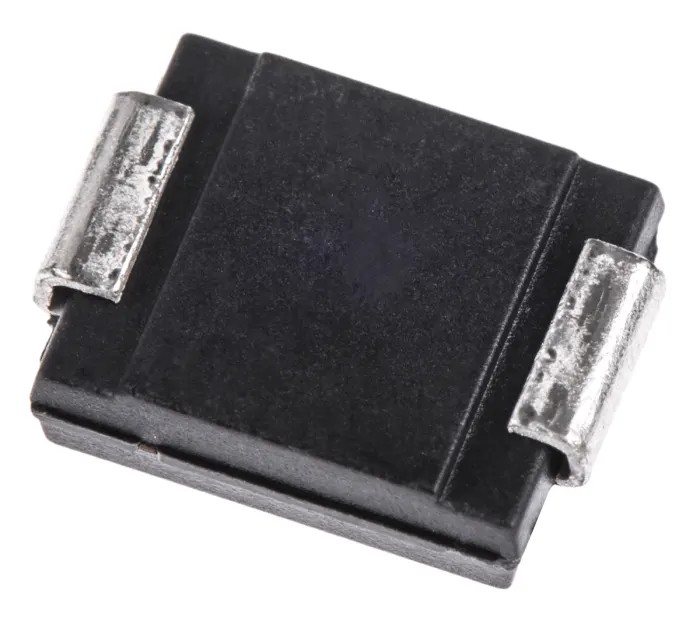

| Vishay 20V 3A, Schottky Diode, 2-Pin DO-214AB VS-MBRS320TRPBFBrand | Vishay |

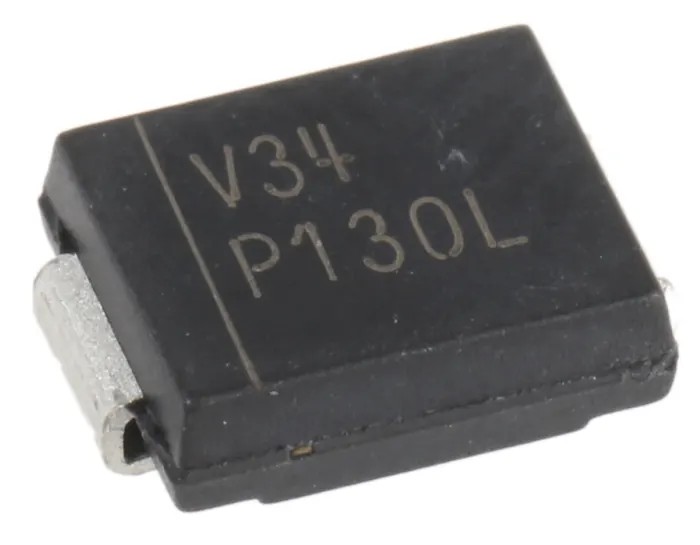

| STMicroelectronics 40 V 3 A Diode Schottky 2-Pin DO-214AA STPS340UBrand | STMicroelectronics |
Key Features
- High performance Schottky rectifier suitable for fast switching applications.
- Maximum forward voltage of 0.43 V reduces power loss.
- Operating temperature ranges from -55°C to 150°C for reliable operation.
- Peak non-repetitive forward surge current capability up to 1.6 kA.
- Compact DO-214AB (SMC) package with 7.11 mm length and 6.22 mm width.
- Single-diode configuration with 2 pins for surface mounting.
- Low peak reverse current of 2 mA enhances efficiency.
- Widely used in power and electronic circuits requiring rectification.
Product Description
Vishay VS-MBRS340-M3/9AT is a high-performance Schottky diode designed for power electronics applications requiring fast switching and low forward voltage drop. This surface-mount diode is rated for a maximum continuous forward current of 4 A and a peak reverse repetitive voltage of 40 V, making it suitable for efficient rectification in power supply and switching circuits.
It features a compact DO-214AB (SMC) package with dimensions of 7.11 mm length, 6.22 mm width, and 20.7 mm diameter. The diode supports a wide temperature range from -55°C to 150°C, ensuring reliable performance in diverse industrial environments.
Key technical attributes include a maximum forward voltage of 0.43 V and a peak non-repetitive surge current of 1.6 kA, which enables handling high transient currents during switching. The low peak reverse current of 2 mA minimizes leakage, improving overall circuit efficiency.
This single-diode with 2-pin configuration is ideal for applications in industrial power supplies, renewable energy systems, automotive electronics, and telecommunications where robust and fast rectification is critical. Vishay's semiconductor technology ensures durability and dependable operation under demanding conditions.
High performance Schottky rectifier suitable for fast switching applications. Maximum forward voltage of 0.43 V reduces power loss. Supports operating temperature range -55°C to 150°C for reliable performance. Peak forward surge current up to 1.6 kA for surge tolerance.
Compact surface mount DO-214AB package with small footprint. Low peak reverse current of 2 mA minimizes leakage currents. Single diode configuration with 2 pins for electronic design flexibility. Widely used in power electronics, automotive, and telecommunication circuits.
Explore EnvMart's extensive range of semiconductor components and Schottky diodes for industrial and electronic design needs. Find high-quality Vishay products built for precision and reliability.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-MBRS340-M3/9AT Schottky diode is 4 A.
This model has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop for this diode is 0.43 V.
The operating temperature range for this diode is from -55°C to 150°C.
This Schottky diode comes in a DO-214AB (SMC) package with dimensions of 7.11 mm in length, 6.22 mm in width, and a diameter of 20.7 mm.
The peak non-repetitive forward surge current capability of this diode is up to 1.6 kA.
The peak reverse current for the VS-MBRS340-M3/9AT is 2 mA.
This Schottky diode has a 2-pin configuration.
This diode supports surface mounting.
This model is commonly used in power electronics, automotive electronics, and telecommunications for efficient rectification.
The Vishay VS-MBRS340-M3/9AT is manufactured in India.
This diode belongs to the VSX series.
