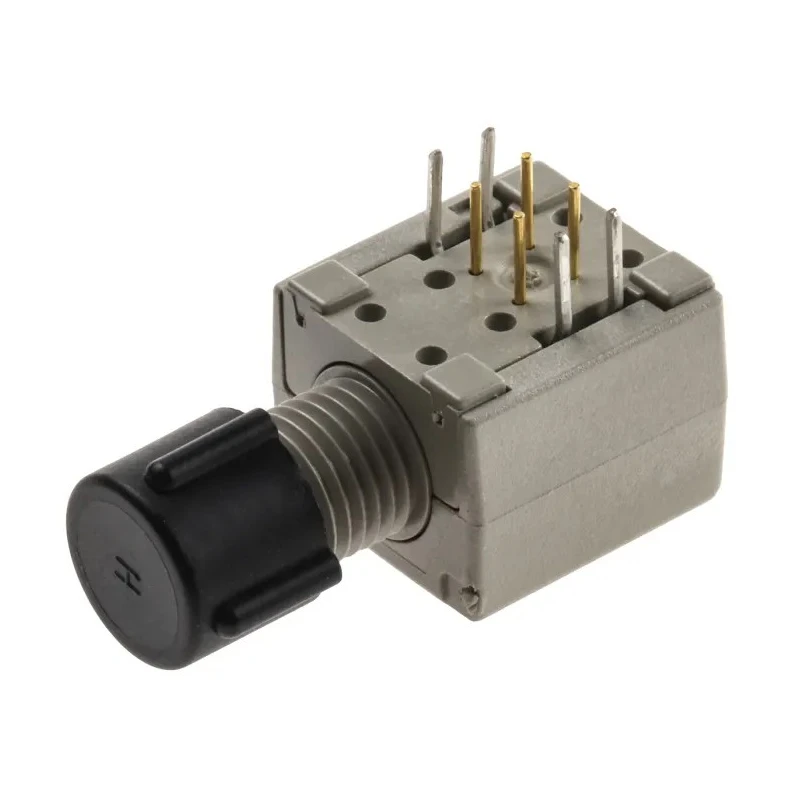

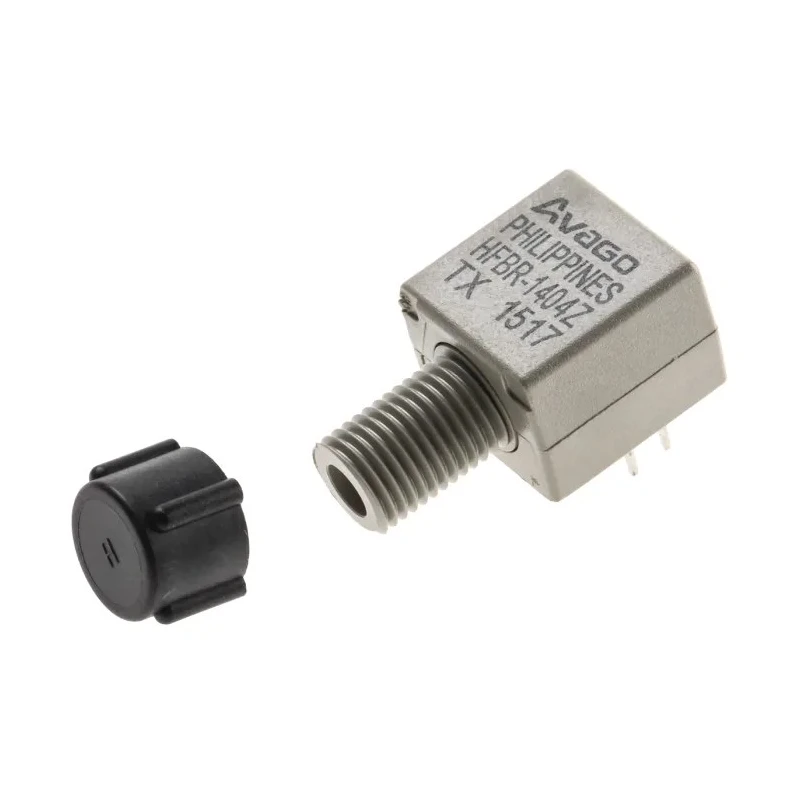

Broadcom Fibre Optic Transmitter 820 nm 160 MBd Round SMA Connector 10.2mm x 12.7mm x 27.2mm HFBR-1404Z

Broadcom HFBR-1404Z is a high-performance fibre optic transmitter engineered for industrial, communication, and electronic applications. It operates at a peak wavelength of 820 nm and supports data rates up to 160 MBd, making it ideal for demanding fibre optic communication systems.

This transmitter employs a round SMA connector allowing secure and reliable optical cable connections. Its compact dimensions of 10.2 mm height, 12.7 mm width, and 27.2 mm length accommodate tight installation spaces and through-hole mounting with an 8-pin interface enhances mechanical stability and ease of PCB integration.

Compatible with fibre sizes ranging from 50 μm to 200 μm, the HFBR-1404Z supports a wide variety of fibre optic cables, increasing versatility in use cases. Its typical rise and fall times are 1.3 ns and 3.08 ns respectively, supporting rapid modulation and signal transitions essential in high-speed data transmission.

The transmitter is compliant with UL and RoHS standards, confirming its adherence to electrical safety and environmental protocols. Operating with a forward voltage of 2.09 V ensures efficient integration into electronic systems requiring stable voltage inputs.

Common applications include industrial control systems, digital data links, computer peripheral connections, and communication equipment where reliable optical signal transmission is needed. The transmitter is part of Broadcom's HFBR series, known for cost-effective and high-quality fibre optic components.

Designed for industrial and communication applications requiring reliable fibre optic transmission. Features a compact form factor with dimensions 10.2 mm height, 12.7 mm width, and 27.2 mm length. Supports fibre sizes from 50μm to 200μm ensuring versatility with various cables.

Offers a typical rise time of 1.3 ns and fall time of 3.08 ns for fast signal processing. Mounts via through-hole with 8 pins and an SMA connector type for secure connections. Compliant with UL and RoHS standards ensuring electrical safety and environmental compliance.

Operates with a forward voltage of 2.09 V, suitable for robust electronic system integration. Optimized for data transmission rates up to 160 MBd for demanding optical communication links. Explore the Broadcom Fibre Optic Transmitters at EnvMart for high-quality connectivity solutions in industrial, communication, and electronics sectors.
