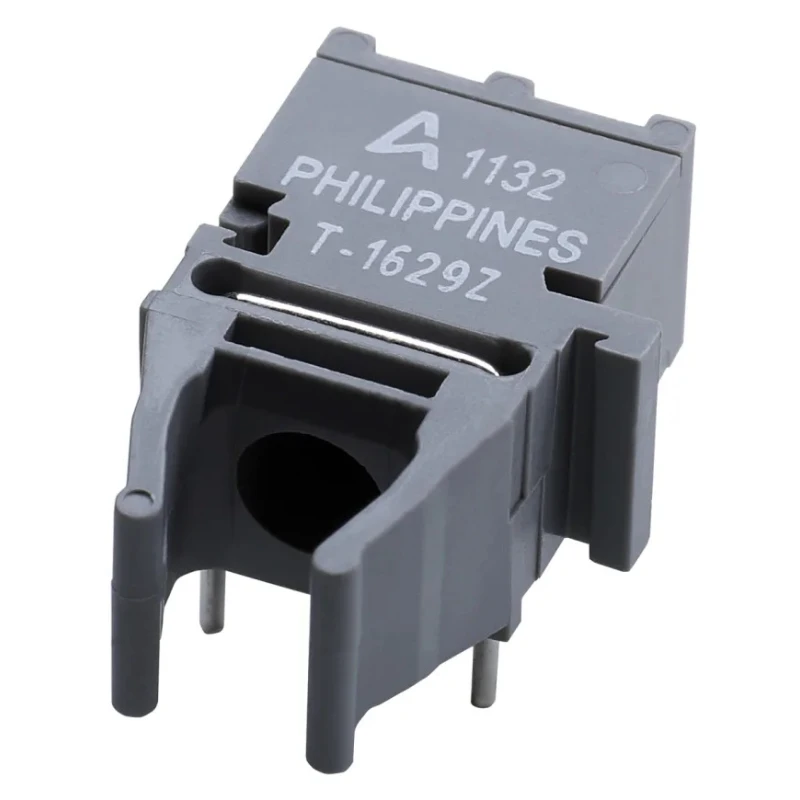

Broadcom 50 Mbps Fibre Optic Transmitter, Rectangular 685 nm Versatile Link Connector 7.6 mm x 12.2 mm x 18.8 mm AFBR-1629Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | AFBR-1629Z |
| Connector Type | Versatile Link |
| Width | 12.2mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS |
| Forward Voltage | 6V |
| Number of Pins | 4 |
| Typical Rise Time | 5ns |
| Maximum Data Rate | 50Mbps |
| Connector Shape | Rectangular |
| Wavelength of Peak Sensitivity | 685nm |
| Maximum Data Transmission Distance | 50m |
Key Features
- Supports maximum data rate of 50 Mbps for efficient data transmission.
- Rectangular Versatile Link connector shape suitable for secure connections.
- Peak sensitivity wavelength at 685 nm for optimal optical performance.
- Through hole mount type compatible with various circuit boards.
- Compact dimensions of 7.6 mm height, 12.2 mm width, and 18.8 mm length.
- Features a 6 V forward voltage for stable operation.
- 4-pin configuration ensures reliable connectivity.
- Typical rise and fall times are both 5 ns for fast signal response.
Product Description
Broadcom AFBR-1629Z is a high-performance fibre optic transmitter suitable for industrial and electronic applications requiring robust optical data transmission. This transmitter operates at a maximum data rate of 50 Mbps and uses a 685 nm wavelength LED source, packaged in a compact rectangular Versatile Link housing measuring 7.6 mm in height, 12.2 mm in width, and 18.8 mm in length.
The AFBR-1629Z series provides integrated optics and driver IC, allowing efficient coupling with a 1 mm polymer optical fibre (POF). It supports data transmission distances up to 50 meters and is compatible with TTL logic input signals. Designed with a through-hole mount and 4 pins, this component ensures easy installation on printed circuit boards.
This fibre optic transmitter exhibits typical rise and fall times of 5 ns, delivering fast and precise optical signal performance necessary for demanding electronic and industrial automation systems. The device complies with RoHS environmental standards, offering a safe and compliant solution.
The Versatile Link connector shape facilitates interlocking with other components for multiplexing and dual connections, optimizing space and enhancing system flexibility. The forward voltage requirement is 6 V, ensuring stable and efficient operation under typical conditions.
Supports 50 Mbps maximum data rate for fast optical transmission. Rectangular Versatile Link connector designed for secure optical interconnection. Peak wavelength sensitivity centered at 685 nm with LED light source. Compact through-hole mount package for traditional PCB installation.
Dimensions: 7.6 mm height, 12.2 mm width, 18.8 mm length. Typical rise/fall time of 5 ns ensures rapid response. 4-pin electrical interface compatible with TTL logic. RoHS compliant for eco-friendly manufacturing standards.
Compatible with 1 mm polymer optical fibre for up to 50 meters distance. Interlocking Versatile Link housing supports multiplexed connections.
This fibre optic transmitter is ideal for use in electronic systems, industrial control, communication devices, and other applications demanding reliable, high-speed optical data communication. Explore more components in the Fibre Optic Transmitter category at EnvMart for complementary solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 50 Mbps for efficient data transmission.
The peak sensitivity wavelength is centered at 685 nm, which is optimal for its optical performance.
The dimensions of this unit are 7.6 mm in height, 12.2 mm in width, and 18.8 mm in length.
It features a rectangular Versatile Link connector type designed for secure optical interconnection.
The forward voltage requirement is 6 V, ensuring stable operation under typical conditions.
This fibre optic transmitter has a 4-pin configuration, ensuring reliable connectivity.
The typical rise and fall times for this unit are both 5 ns, providing fast signal response.
It supports data transmission distances of up to 50 meters when used with compatible optical fibre.
This model uses a through-hole mount type, making it compatible with various circuit boards.
Yes, it complies with RoHS environmental standards, ensuring it meets eco-friendly manufacturing requirements.
This fibre optic transmitter is ideal for electronic systems, industrial control, and communication devices requiring reliable optical data communication.
It is compatible with 1 mm polymer optical fibre (POF) for effective data transmission.
