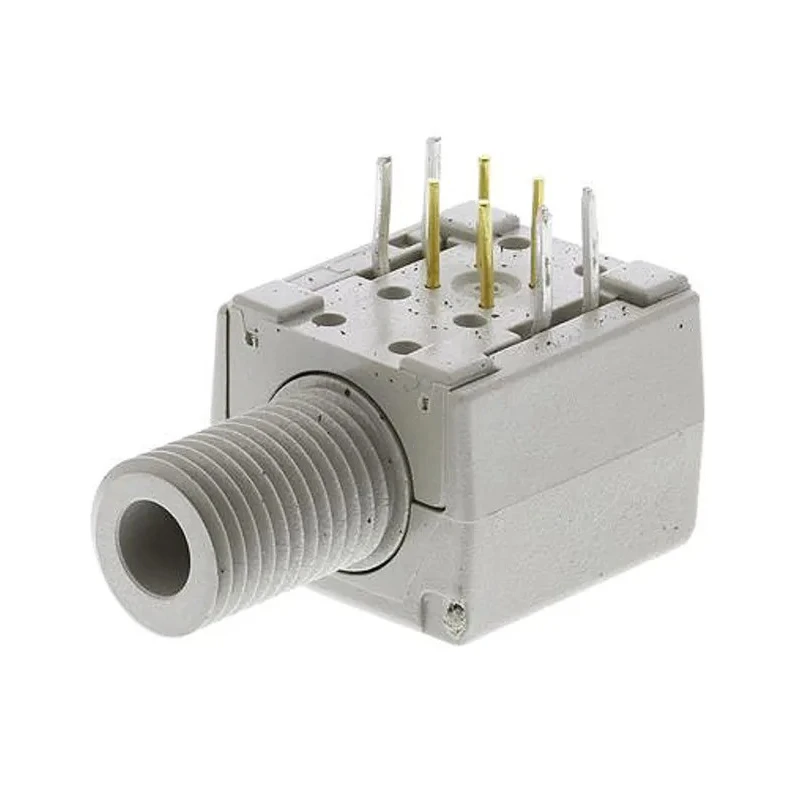

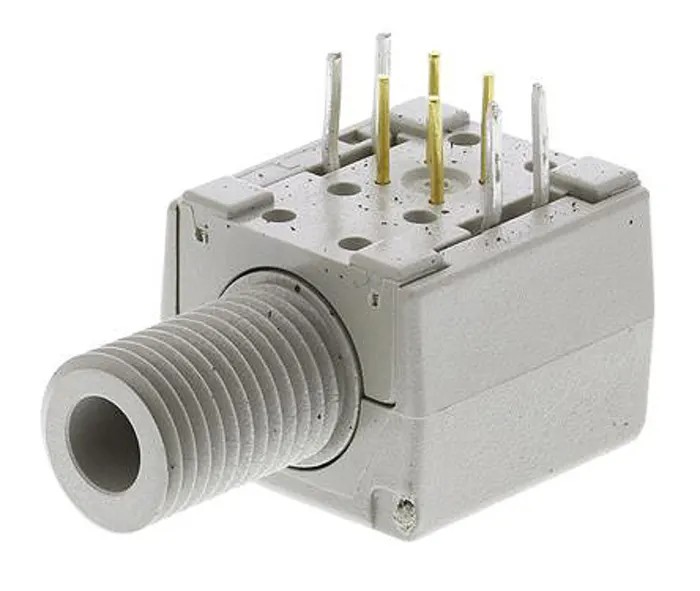

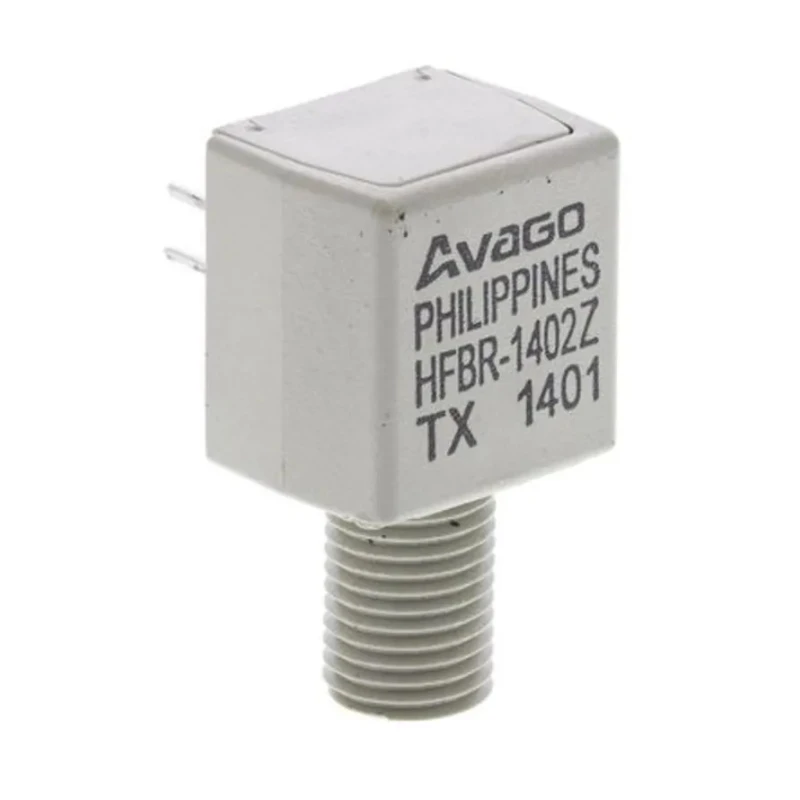

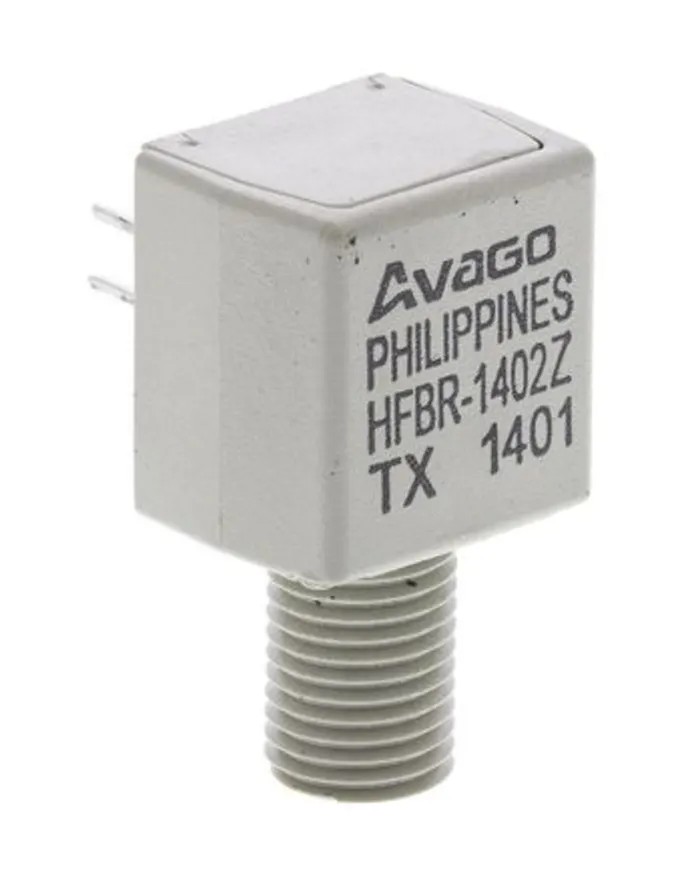

Broadcom Fibre Optic Transmitter Round SMA Connector 820 nm 5 MBd 8-Pin Through Hole Mount HFBR-1402Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 10.2mm |
| Length | 27.2mm |
| Model | HFBR-1402Z |
| Connector Type | SMA |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | HFBR |
| Standards/Approvals | RoHS, UL |
| Forward Voltage | 2.09V |
| Number of Pins | 8 |
| Typical Rise Time | 6.5ns |
| Maximum Data Rate | 5MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 820nm |
| Minimum Fibre Size | 50μm |
| Maximum Fibre Size | 200μm |
| This product is also available in other popular industry-standard connectors | SMA, SC and FC |
| Avago HFBR-1402 5MBd 820Nm Fibre Optic Receiver, Square, SMA ConnectorBrand | Avago Technologies |
Key Features
- The transmitter operates at a peak wavelength of 820 nm suitable for fiber optic communication.
- It features a fast typical rise time and fall time of 6.5 ns for efficient signal transitions.
- Designed with an 8-pin configuration and 10.2 mm height, 12.7 mm width, and 27.2 mm length dimensions.
- Supports minimum and maximum fiber sizes from 50 μm to 200 μm with SMA connector type.
- Compatible with a variety of industrial and communication applications requiring reliable fiber optic transmission.
- RoHS and UL compliant, ensuring safety and environmental standards.
- Forward voltage rated at 2.09 V enables consistent electrical performance.
- Through hole mount style for easy PCB integration.
Product Description
Broadcom HFBR-1402Z fibre optic transmitter is a high-performance component designed for industrial and communication applications. It operates at a wavelength of 820 nm, delivering data rates up to 5 MBd with excellent signal integrity.
The transmitter features an 8-pin, through hole mount design with dimensions measuring 10.2 mm in height, 12.7 mm in width, and 27.2 mm in length. Its round SMA connector provides robust and standard connectivity to fiber optic cables supporting fiber sizes ranging from 50 μm to 200 μm.
Designed for low cost and high reliability, this device complies with RoHS and UL standards, making it suitable for use in medical equipment, power generation, industrial control, and digital communication systems. The typical rise and fall times of 6.5 ns contribute to stable and efficient optical signal transmission.
The transmitter operates at a forward voltage of 2.09 V and is compatible with HFBR series optical components, ensuring seamless integration in existing fiber optic links. The transmitter supports link distances up to several kilometers depending on fiber type and installation conditions.
Its robust design enables operation in a wide range of temperatures, making it suitable for demanding environments. Applications include computer peripherals, digital cross-connect links, modems, multiplexers, and tempest systems requiring secure optical communication.
This product contains 1 piece of the Broadcom HFBR-1402Z Fibre Optic Transmitter as specified. EnvMart carries a comprehensive range of fibre optic communication components to support industrial, commercial, and laboratory applications.
Explore our catalogue for related fibre optic receivers, connectors, and accessories for complete networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Broadcom HFBR-1402Z fibre optic transmitter supports a maximum data rate of 5 MBd.
This model operates at a peak wavelength of 820 nm, making it suitable for fiber optic communication.
The dimensions of this transmitter are 10.2 mm in height, 12.7 mm in width, and 27.2 mm in length.
It features a round SMA connector type for robust connectivity to fiber optic cables.
The forward voltage rating for the HFBR-1402Z is 2.09 V, enabling consistent electrical performance.
The typical rise time and fall time for this transmitter are both 6.5 ns, contributing to efficient signal transitions.
This unit supports fiber sizes ranging from a minimum of 50 μm to a maximum of 200 μm.
The HFBR-1402Z is designed for through hole mounting, facilitating easy integration onto PCBs.
It complies with RoHS and UL standards, ensuring safety and environmental compliance.
This transmitter is suitable for various industrial and communication applications, including medical equipment and digital communication systems.
Yes, it is compatible with HFBR series optical components, ensuring seamless integration in existing fiber optic links.
The country of origin for this product is India.
