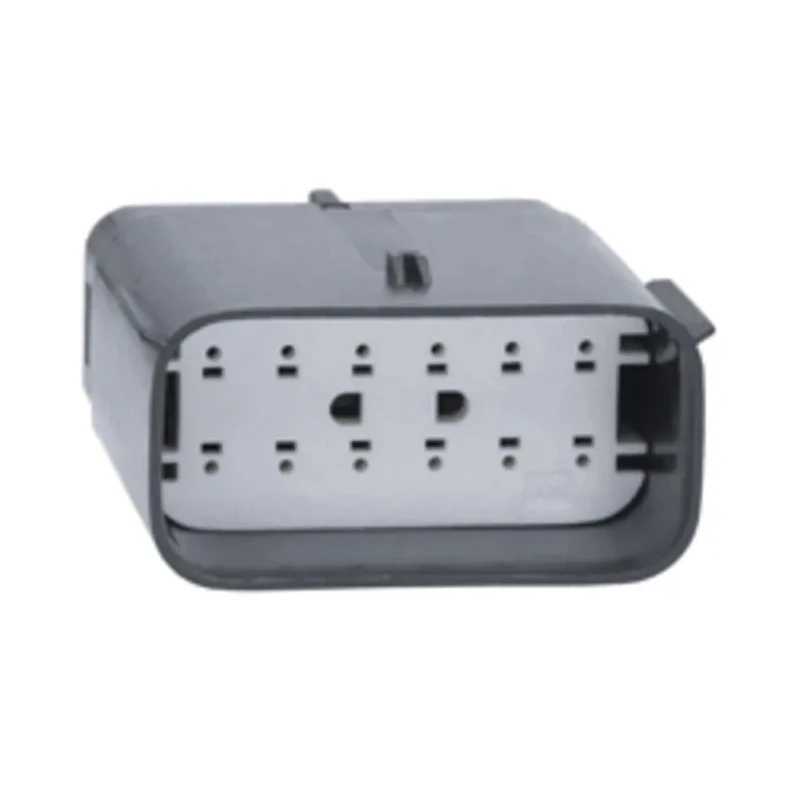

Molex MX150L Female Connector Housing 12 Way 2 Row, 5.84mm Pitch, Cable Mount, Polyester Housing, 19419-0017
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 42.31mm |
| Width | 53.96mm |
| Mount Type | Cable |
| Housing Material | Polyester |
| Series | MX150L |
| Number of Rows | 2 |
| Pitch | 5.84mm |
| For Use With | 19417 Male Crimp Terminal |
| Number of Contacts | 12 |
| Connector Gender | Female |
| Termination Method | Crimp |
Key Features
- 12-way dual row female connector housing suitable for cable-to-cable connections.
- Supports 5.84mm pitch contacts, enabling robust and stable electrical performance.
- Constructed from high-strength polyester for reliable electrical insulation.
- Cable mount design compatible with 19417 male crimp terminals.
- Straight orientation for efficient assembly and wire management.
- Accommodates wire sizes ranging from 18 to 22 AWG.
- Supports operation in a wide temperature range from -40°C to 125°C.
- Ideal for industrial, automotive, and electronics applications.
Product Description
The Molex 19419-0017 MX150L Female Connector Housing is purpose-built for securing cable-to-cable connections in a wide range of electronic, automotive, and industrial applications. This connector housing features a 12-way, dual row layout that ensures secure mating and efficient use of panel or cable space. It is specifically engineered to fit 5.84mm pitch contact terminals, supporting high-current transmission and robust system design.
Constructed from high-quality polyester, the housing delivers strong insulation, chemical resistance, and dimensional stability. Its straight orientation streamlines assembly and installation in harness or system-level wiring. The connector is designed for use with 19417 male crimp terminals to create reliable wire-to-wire connections. Compatibility with wire sizes from 18 to 22 AWG makes it versatile for different industrial cabling needs.
With a wide operating temperature range between -40°C and 125°C, this housing is ideal for demanding conditions, including automotive engine compartments, factory automation equipment, and outdoor electrical installations. Its dual row configuration and female connectivity protect contacts from accidental damage and environmental ingress. The design focuses on quick crimp termination, ensuring simplified assembly and maintenance.
Measuring 42.31mm in length and 53.96mm in width, the housing suits compact enclosures and cable harnesses. The natural color and chemically stable polyester material reduce the risk of tracking and electrical failure.
This product meets the standards and reliability expected for use in electronics manufacturing, automation, machinery, and transportation industries. Explore more connector housings, terminals, and plug solutions in the Molex MX150L series and other categories for your specific cabling requirements on EnvMart.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size for this connector housing is 5.84mm, which is designed to accommodate high-current transmission and robust system design.
This model accommodates wire sizes ranging from 18 to 22 AWG, making it versatile for various industrial cabling needs.
It operates effectively within a wide temperature range from -40°C to 125°C, suitable for demanding conditions such as automotive and industrial applications.
The Molex MX150L Female Connector Housing features a cable mount design, facilitating easy installation in harness or system-level wiring.
This housing is specifically designed for use with 19417 male crimp terminals, ensuring reliable wire-to-wire connections.
The housing measures 42.31mm in length and 53.96mm in width, making it suitable for compact enclosures and cable harnesses.
The housing is constructed from high-strength polyester, providing reliable electrical insulation and chemical resistance.
This model features 12 contacts, arranged in a dual row configuration for secure mating and efficient use of space.
It has a straight orientation, which streamlines assembly and installation in wiring applications.
The connector gender of this housing is female, designed to protect contacts from accidental damage and environmental ingress.
The Molex MX150L Female Connector Housing utilizes a crimp termination method for secure connections.
This connector housing is manufactured in India, adhering to the standards expected for electronics manufacturing.
