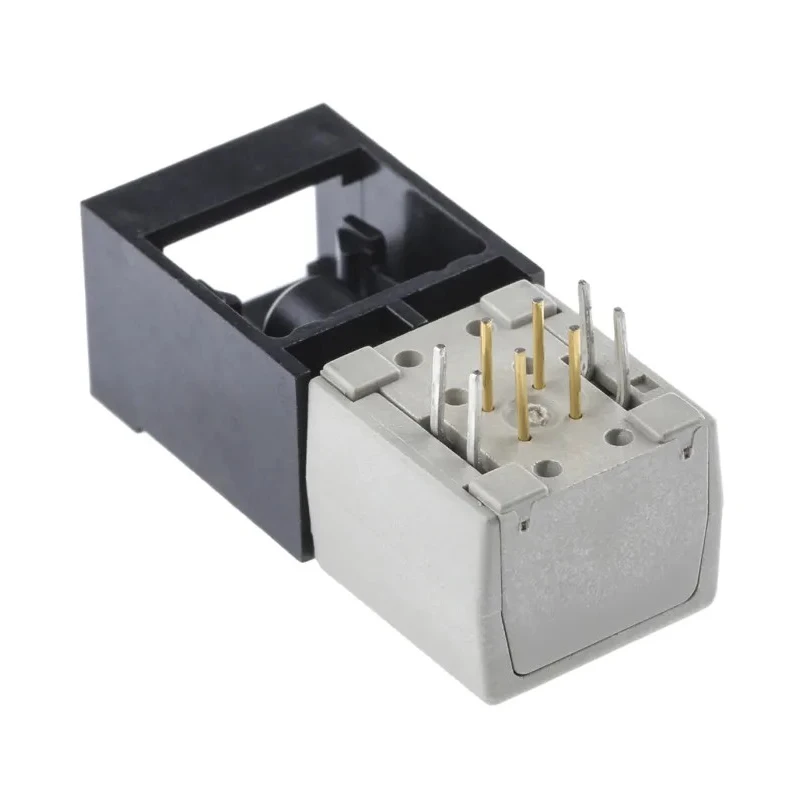

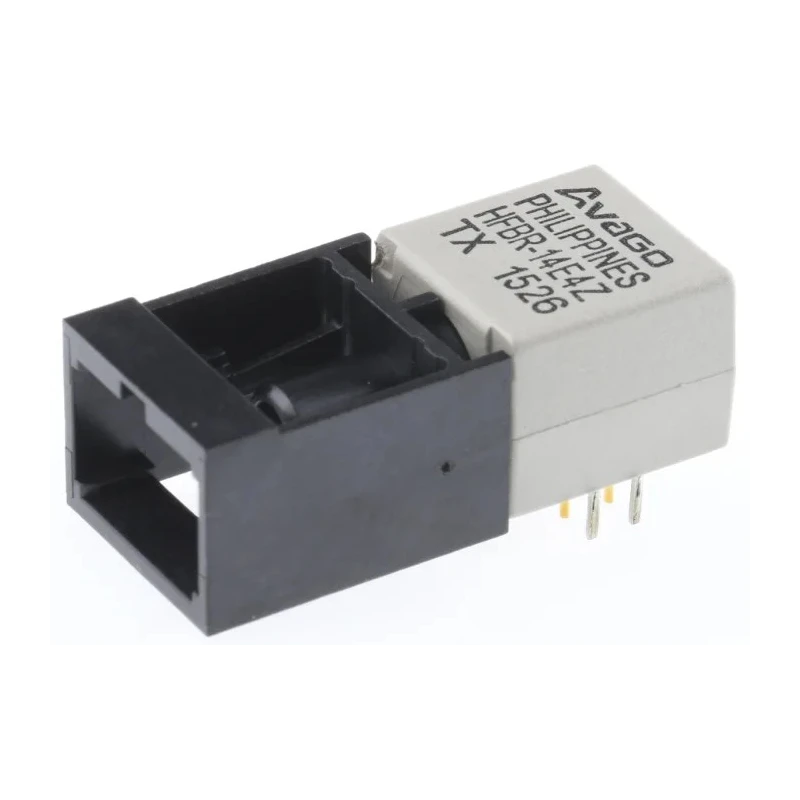

Broadcom Fibre Optic Transmitter 160 MBd, Square SC Connector 820 nm, 10.2 mm H x 12.7 mm W x 27.2 mm L HFBR-14E4Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 10.2mm |
| Length | 27.2mm |
| Model | HFBR-14E4Z |
| Connector Type | SC |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | HFBR-14xxZ |
| Standards/Approvals | UL, RoHS |
| Forward Voltage | 2.09V |
| Number of Pins | 8 |
| Typical Rise Time | 1.3ns |
| Typical Fall Time | 3.08ns |
| Maximum Data Rate | 160MBd |
| Connector Shape | Square |
| Wavelength of Peak Sensitivity | 820nm |
| Minimum Fibre Size | 50μm |
| Maximum Fibre Size | 200μm |
| This product is also available in other popular industry-standard connectors | SMA, SC and FC |
Key Features
- Operates at a peak sensitivity wavelength of 820 nm.
- Equipped with an 8-pin through-hole mount connector.
- Compact size with dimensions 10.2 mm height, 12.7 mm width, and 27.2 mm length.
- Designed for fibre core sizes ranging from 50 μm to 200 μm.
- Typical rise time of 1.3 nanoseconds and fall time of 3.08 nanoseconds.
- Complies with UL and RoHS standards for safety and environmental protection.
- Forward voltage rating of 2.09 volts ensures efficient operation.
- Suitable for industrial, power generation, medical, transportation, and gaming applications.
Product Description
Broadcom HFBR-14E4Z is a high performance Fibre Optic Transmitter supporting a maximum data rate of 160 MBd. Featuring a square-shaped SC connector, this transmitter operates at a wavelength peak sensitivity of 820 nm, ensuring reliable optical communication. Its compact form factor measures 10.2 mm in height, 12.7 mm in width, and 27.2 mm in length, suitable for integration in various setups.
The HFBR-14E4Z uses an 8-pin through-hole mount assembly and provides a forward voltage of 2.09 volts, with typical rise and fall times of 1.3 ns and 3.08 ns respectively, supporting fast switching speeds. It is designed for fibre sizes from 50 μm up to 200 μm, compatible with various industry standard cables.
This transmitter series is UL and RoHS certified, meeting stringent quality and environmental guidelines. It finds applications in industrial automation, power generation and distribution, medical equipment, transportation systems, and gaming technologies, offering precise and cost-effective fiber optic communication links.
Features include a low-cost receiver integration option, wide temperature range suitability from -40°C to +85°C, and compatibility with SMA, SC, and FC connectors, enhancing system flexibility. The product is packaged as a production tube pack for efficient machine insertion and manufacturing line usage.
Operates at a peak sensitivity wavelength of 820 nm. Maximum data rate supports 160 MBd transmission. Compact dimensions of 10.2 x 12.7 x 27.2 mm. Through-hole mount with 8 pins for secure connection. Compliant with UL and RoHS industry standards.
Forward voltage of 2.09 V for efficient power consumption. Wide industrial applications including control and medical systems. Compatible with multiple connector types for installation flexibility. Suitable for fibre core sizes from 50 μm to 200 μm.
Explore our broad selection of fibre optic components at EnvMart for reliable and precise optical communication solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 160 MBd, allowing for efficient optical communication.
It operates at a peak sensitivity wavelength of 820 nm, which is suitable for various optical applications.
This unit has compact dimensions of 10.2 mm in height, 12.7 mm in width, and 27.2 mm in length.
It features a square SC connector, which is commonly used in fibre optic applications.
The forward voltage rating is 2.09 volts, ensuring efficient operation during use.
The typical rise time is 1.3 nanoseconds and the fall time is 3.08 nanoseconds, supporting fast switching speeds.
This model uses an 8-pin through-hole mount assembly for secure installation.
It complies with UL and RoHS standards, ensuring safety and environmental protection.
It is suitable for applications in industrial automation, power generation, medical equipment, transportation systems, and gaming technologies.
The country of origin for this transmitter is India.
