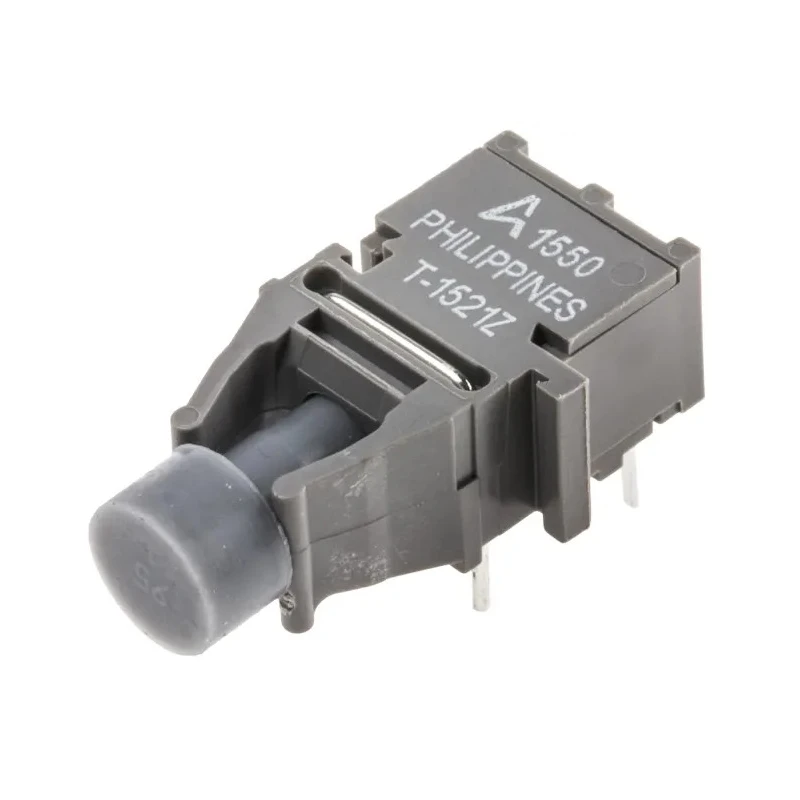

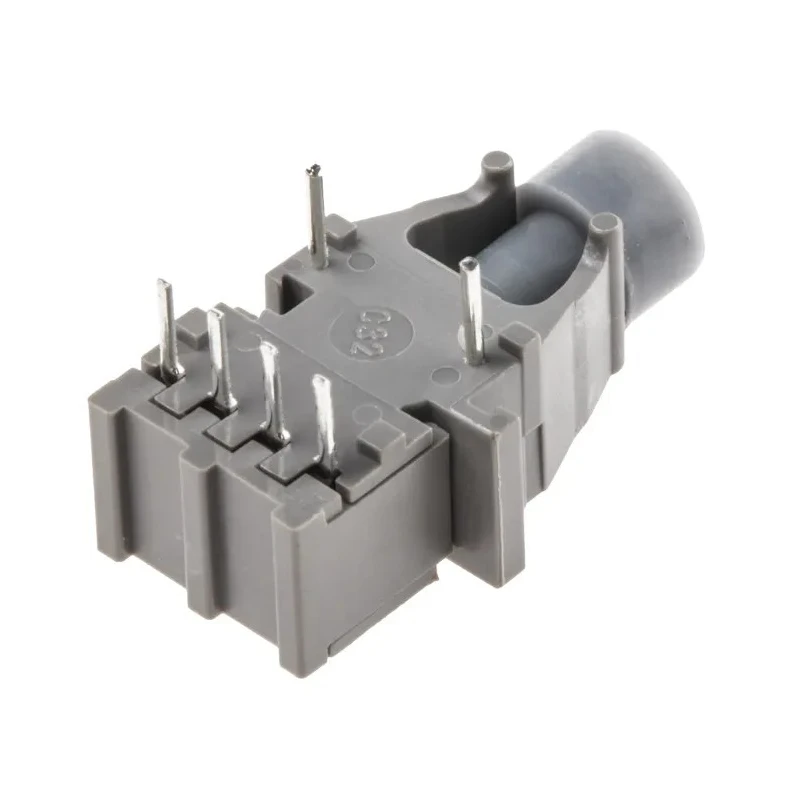

Broadcom Fibre Optic Transmitter Round Versatile Link Connector 660 nm 5 MBd 7.6 mm x 12.2 mm x 18.8 mm HFBR-1521Z
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 7.6mm |
| Length | 18.8mm |
| Model | HFBR-1521Z |
| Connector Type | Versatile Link |
| Width | 12.2mm |
| Mount Type | Through Hole |
| Series | Versatile Link |
| Standards/Approvals | RoHS, UL |
| Forward Voltage | 2.02V |
| Number of Pins | 6 |
| Typical Rise Time | 80ns |
| Typical Fall Time | 40ns |
| Maximum Data Rate | 5MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 660nm |
| Maximum Data Transmission Distance | 20m |
Key Features
- Compact design with dimensions 12.2 mm width, 7.6 mm height, and 18.8 mm length.
- Equipped with a round Versatile Link connector suitable for secure optical coupling.
- Supports maximum data transmission distance of up to 20 meters.
- Features a low forward voltage of 2.02 V for efficient operation.
- Fast response times with typical rise time of 80 ns and fall time of 40 ns.
- Through-hole mounting type with six pins for reliable circuit board integration.
- Complies with RoHS and UL standards ensuring safety and environmental compliance.
- Ideal for industrial short-range optical control links and inter-module communication.
Product Description
Broadcom HFBR-1521Z is a high-quality fibre optic transmitter designed for converting electrical signals into optical signals for short-range data communication. It operates at a maximum data rate of 5 MBd and a peak sensitivity wavelength of 660 nm, making it ideal for use in industrial and electronic communication applications requiring reliable local link transmission.
The transmitter features a compact and robust through-hole package measuring 12.2 mm in width, 7.6 mm in height, and 18.8 mm in length. It incorporates a round Versatile Link connector that ensures precise optical coupling and compatibility with Versatile Link systems. With a low forward voltage of 2.02 V, it requires minimal drive voltage, enhancing energy efficiency.
This component offers excellent performance with fast signal response times, characterized by an 80 ns rise time and 40 ns fall time. It supports a maximum transmission distance of 20 meters, suitable for short-range signalling and sensor data links.
The HFBR-1521Z has six pins arranged for through-hole mounting on printed circuit boards to facilitate secure electrical and mechanical connections. It meets RoHS environmental standards and holds UL safety approvals, ensuring it complies with modern industrial and environmental requirements.
Applications of this fibre optic transmitter include use in industrial short-range optical control links, inter-module communications within equipment racks, and local network signalling using Versatile Link round connectors. It is especially useful for sensor data transmission over fibre and can replace or upgrade existing through-hole mounting designs.
Compact footprint suitable for PCB integration. Compatible with Versatile Link connector systems. Compliant with RoHS and UL safety standards. Supports data rates up to 5 MBd with 20 m transmission reach. Low forward voltage minimizes power consumption.
Ideal for industrial, electronic, and sensor communication applications. Explore more products within the Fibre Optic Transmitter category on EnvMart to find related fibre optic communication components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 5 MBd, suitable for short-range data communication applications.
The HFBR-1521Z operates with a peak sensitivity wavelength of 660 nm, optimized for optical signal transmission.
It supports a maximum data transmission distance of up to 20 meters, making it suitable for short-range applications.
This model has a compact design with dimensions of 12.2 mm in width, 7.6 mm in height, and 18.8 mm in length.
It features a through-hole mounting type with six pins, allowing for secure integration onto printed circuit boards.
The HFBR-1521Z operates with a low forward voltage of 2.02 V, enhancing energy efficiency during operation.
It has a typical rise time of 80 ns and a fall time of 40 ns, ensuring fast signal response for data transmission.
This unit is equipped with a round Versatile Link connector, ensuring precise optical coupling and compatibility with Versatile Link systems.
It complies with RoHS and UL standards, ensuring safety and environmental compliance in its applications.
This fibre optic transmitter is ideal for industrial short-range optical control links and inter-module communications within equipment racks.
The country of origin for this model is the Philippines, indicating its manufacturing location.
This model features six pins, which are arranged for reliable circuit board integration.
