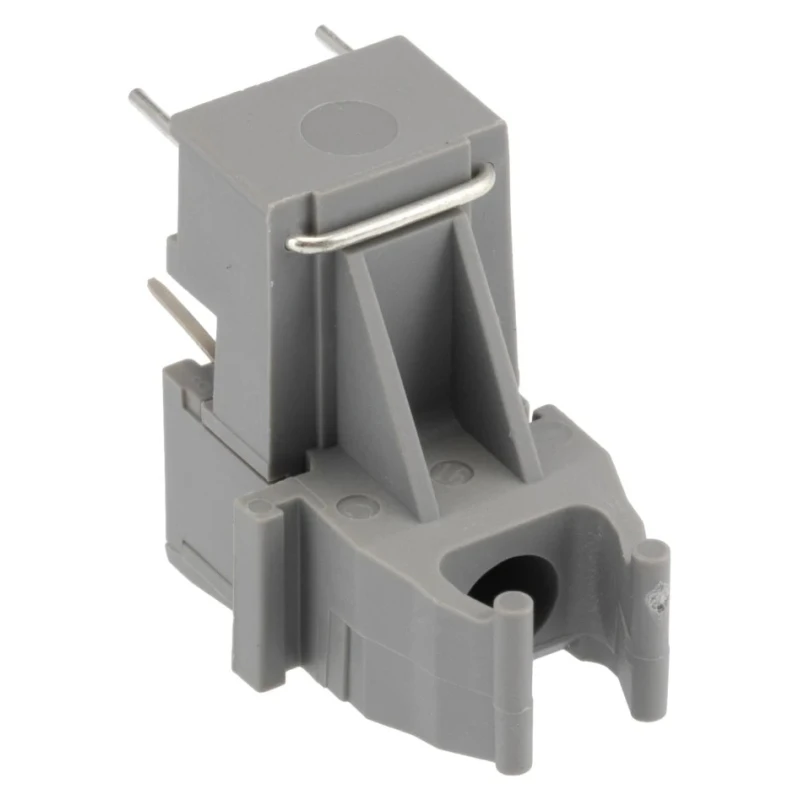

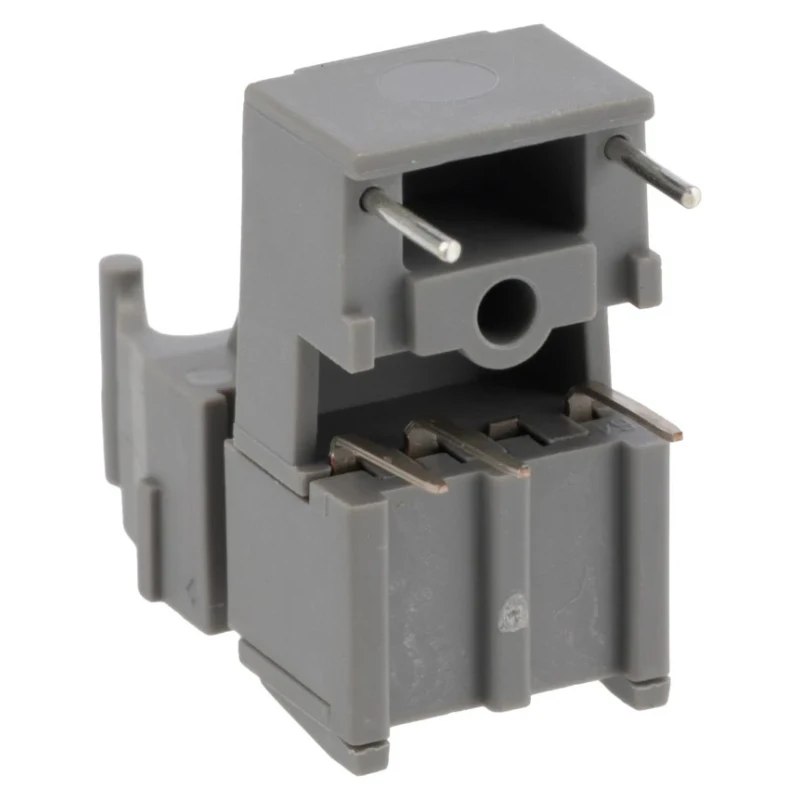

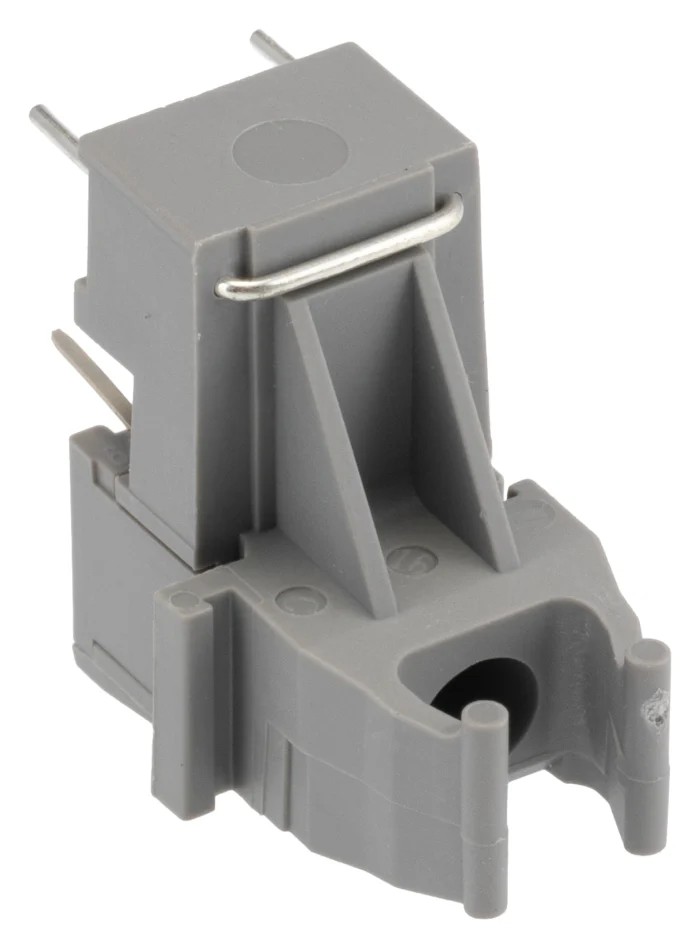

Broadcom Fibre Optic Transmitter 50 Mbps Maximum Data Rate, 685 nm Wavelength, Square Versatile Link Connector AFBR-1634Z

Broadcom AFBR-1634Z is a high-performance fibre optic transmitter engineered for industrial applications requiring moderate data speeds and reliable point-to-point optical transmission. Operating at a maximum data rate of 50 Mbps, it supports robust communication over distances up to 200 meters, making it ideal for control networks and sensor-to-controller links.

This transmitter uses a square Versatile Link connector that provides consistent mating orientation, facilitating precise panel cut-out alignment in fibre optic module panels. Its through-hole mount configuration guarantees mechanical stability and easy integration onto printed circuit boards through conventional soldering techniques.

The device emits at a wavelength peak sensitivity of 685 nm, matching receiver responsiveness for efficient optical signal conversion. Typical rise and fall times of 5 nanoseconds ensure high-fidelity pulse transmission suitable for timing-sensitive industrial communication protocols.

Its forward voltage requirement of 6 volts reduces the power supply burden, contributing to low-voltage operation essential in compact industrial environments. Measuring 18.9 mm in height, 12.2 mm in width, and 18.1 mm in length, the compact size supports use in space-constrained installations.

Broadcom AFBR-1634Z complies with RoHS environmental standards, ensuring safe and eco-friendly usage in various industrial and manufacturing settings. This transmitter is widely employed in industrial fibre optic links, control network segments, and optical isolation applications requiring moderate-speed data throughput.

Provides a peak sensitivity wavelength of 685 nm for optimal receiver performance. Features a square Versatile Link connector ensuring precise panel alignment and secure connection. Designed for through-hole mounting for reliable PCB integration.

Supports a maximum data transmission distance of 200 meters for extended local optical links. Has a typical rise and fall time of 5 nanoseconds enabling fast signal edge transitions. Operates at a low forward voltage of 6 volts, optimizing power supply requirements.

Includes 4 pins for straightforward electrical interfacing. Compact dimensions of 18.9 mm height, 12.2 mm width, and 18.1 mm length suit tight installation spaces. RoHS compliant for environmental safety.

Ideal for industrial, manufacturing, and laboratory Fibre Optic communication systems. Explore more from Broadcom products on EnvMart for advanced electronics components and Fibre Optic Transmitters.
