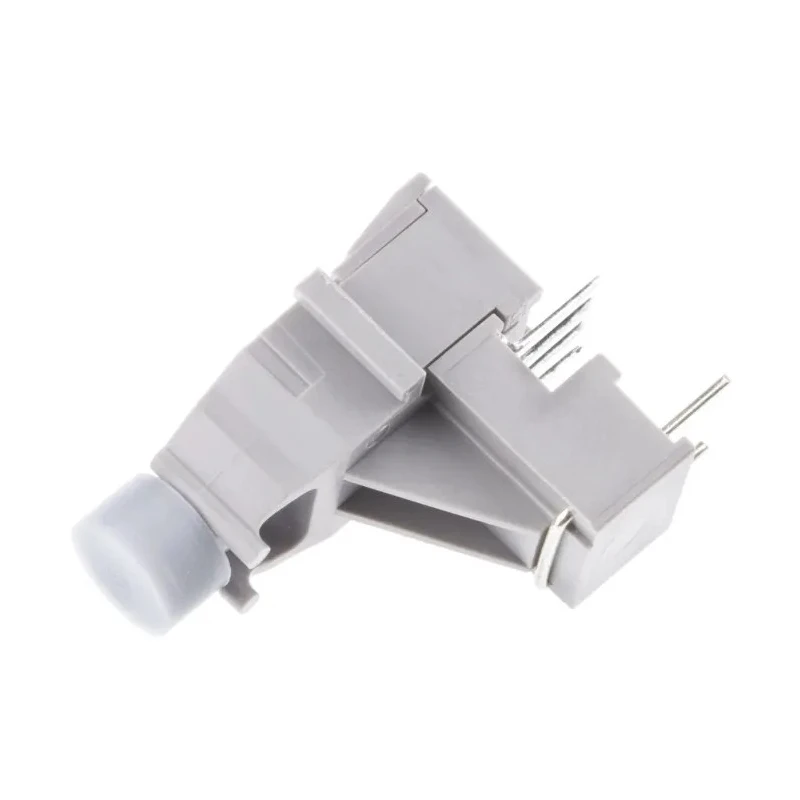

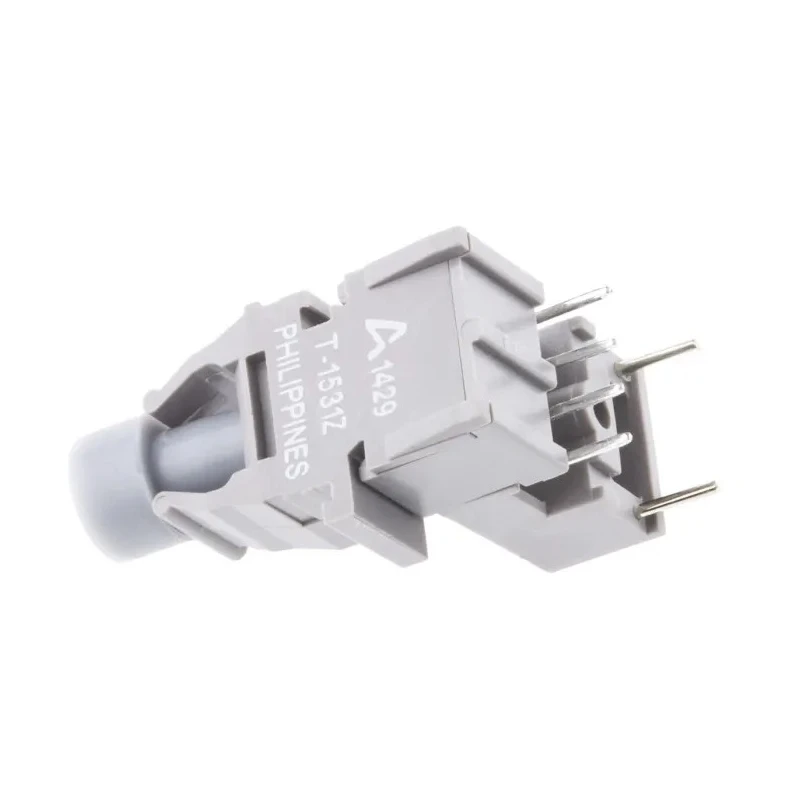

Broadcom Fibre Optic Transmitter, Round Versatile Link Connector, 660 nm Wavelength, 5 MBd Data Rate, Through HFBR-1531Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.62mm |
| Length | 18.3mm |
| Model | HFBR-1531Z |
| Connector Type | Versatile Link |
| Width | 12.2mm |
| Mount Type | Through Hole |
| Series | HFBR-0500Z |
| Standards/Approvals | UL, RoHS |
| Forward Voltage | 2.02V |
| Number of Pins | 6 |
| Typical Rise Time | 80ns |
| Typical Fall Time | 40ns |
| Maximum Data Rate | 5MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 660nm |
| - Low current link | 6mA peak supply current |
| - Enhanced digital links | dc-5 MBd |
| - Extended distance links | up to 120m at 40kBd |
| - Easy connecting | simplex, duplex and latching connectors |
Key Features
- The transmitter uses a round Versatile Link connector ensuring compatibility.
- Designed with through hole mount type and includes 6 pins for connection.
- It provides low current consumption with 6 mA peak supply current for energy efficiency.
- Meets UL and RoHS standards ensuring safety and environmental compliance.
- Typical rise and fall times of 80 ns and 40 ns respectively for reliable signal transmission.
- Compatible with standard TTL circuitry and enables noise immune communication.
- Used in motor controller triggering, data communications, and local area networks.
- Supported series HFBR-0500Z enhances digital links up to 5 MBd and extended distance links up to 120 m at 40 kBd.
Product Description
Broadcom HFBR-1531Z fibre optic transmitter is a reliable component engineered for data communication applications requiring immunity to EMI/RFI interference and enhanced voltage isolation. Operating with a 660 nm LED, it achieves a maximum data rate of 5 MBd and uses a round Versatile Link connector to facilitate simple and secure connections.
The transmitter is mounted through hole and features 6 pins to ensure stable connectivity. Its compact dimensions of 18.3 mm length, 12.2 mm width, and 7.62 mm height make it suitable for integration into diverse electronic assemblies. Forward voltage is rated at 2.02 V, with a low peak supply current of 6 mA, reflecting efficient power usage.
This component complies with UL and RoHS standards, guaranteeing high safety and environmental standards. Typical rise time of 80 ns and fall time of 40 ns ensure signal integrity during transmission. The HFBR-1531Z series provides enhanced digital and extended distance communication up to 120 meters at 40 kBd rate, ideal for industrial and commercial uses.
The fibre optic transmitter is commonly employed for motor controller triggering, audio and video equipment communication, and local area network data transfer. Its flame-retardant construction and easy connection options, including simplex, duplex, and latching connectors, make it a versatile choice in electronic component design.
The transmitter features a low current link with 6 mA peak supply current. Enhanced digital links support rates from dc to 5 MBd. Extended distance links can reach up to 120 meters at 40 kBd baud rate. Easy connectivity options include simplex, duplex, and latching connectors.
Compatible with standard TTL circuitry for broad application.
Broadcom provides a trusted solution with the HFBR-1531Z fibre optic transmitter, suitable across industrial, laboratory, and telecommunications sectors where secure and noise-immune optical data transfer is essential.
Explore additional Fibre Optic Transmitters and related components on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFBR-1531Z fibre optic transmitter supports a maximum data rate of 5 MBd.
It operates at a wavelength of 660 nm, which is ideal for its intended applications.
The typical rise time is 80 ns and the fall time is 40 ns, ensuring reliable signal integrity.
This model uses a round Versatile Link connector, facilitating simple and secure connections.
The dimensions are 18.3 mm in length, 12.2 mm in width, and 7.62 mm in height.
It has a low peak supply current of 6 mA, reflecting efficient power usage.
Yes, it is compatible with standard TTL circuitry, enabling broad application in various systems.
The transmitter is designed for through hole mounting, which ensures stable connectivity.
It complies with UL and RoHS standards, ensuring safety and environmental compliance.
Extended distance links can reach up to 120 meters at a baud rate of 40 kBd.
It is commonly used in motor controller triggering, data communications, and local area networks.
It supports simplex, duplex, and latching connectors for versatile connection options.
