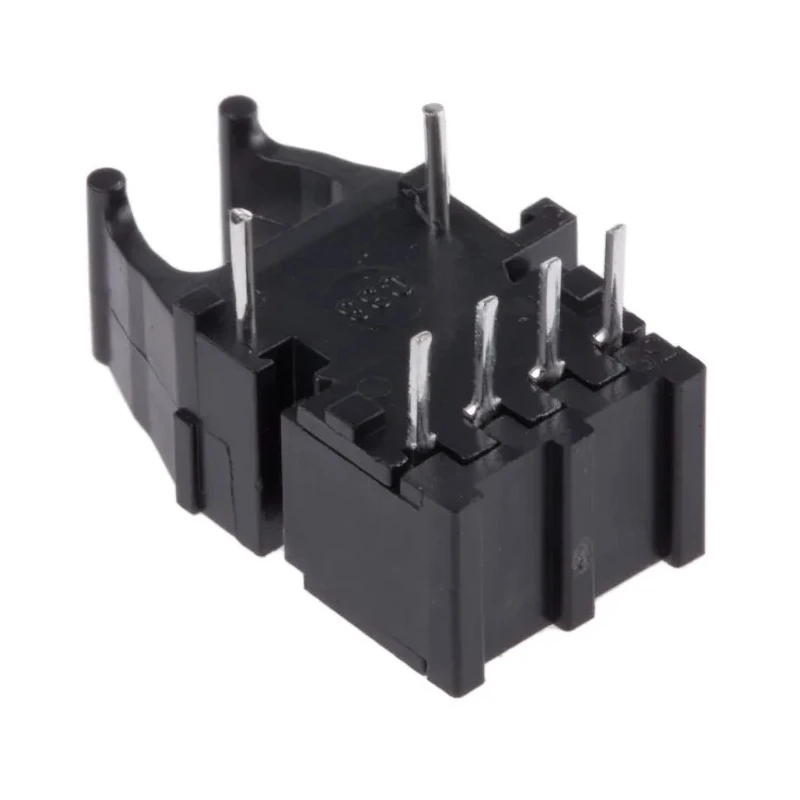

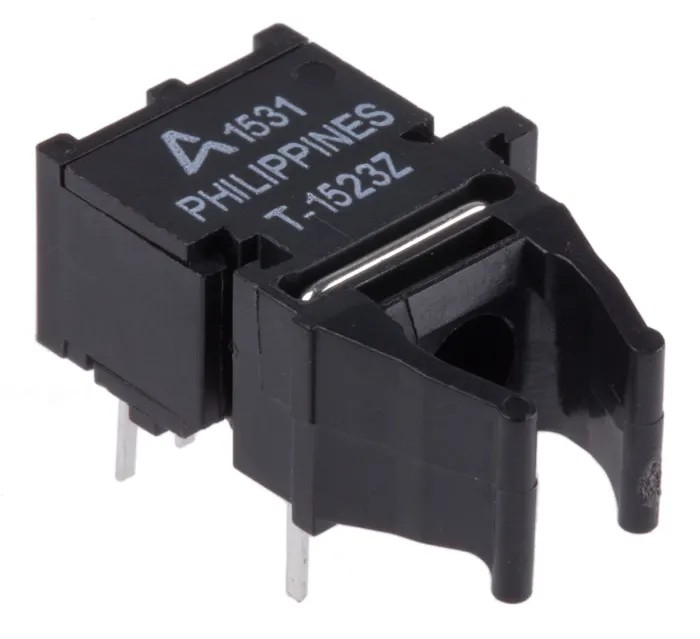

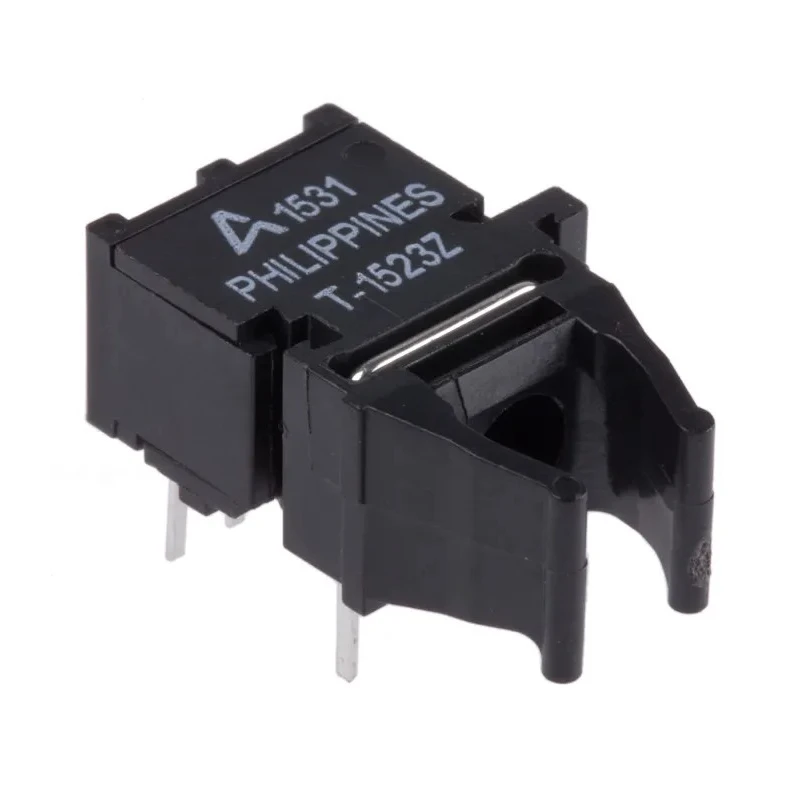

Broadcom Fibre Optic Transmitter 0.04 MBd, 660 nm, Versatile Link, Through Hole, 7.62 × 12.2 × 18.3 mm, HFBR-1523Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 7.62mm |
| Length | 18.3mm |
| Wavelength | 660 nm |
| Model | HFBR-1523Z |
| Connector Type | Versatile Link |
| Width | 12.2mm |
| Mount Type | Through Hole |
| Series | HFBR-0500Z |
| Standards/Approvals | RoHS, UL |
| Forward Voltage | 2.02V |
| Number of Pins | 6 |
| Typical Rise Time | 80ns |
| Typical Fall Time | 40ns |
| Maximum Data Rate | 0.04MBd |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 660nm |
| - Low current link | 6mA peak supply current |
| - Enhanced digital links | dc-5 MBd |
| - Extended distance links | up to 120m at 40kBd |
| - Easy connecting | simplex, duplex and latching connectors |
Key Features
- Supports data transmission speeds up to 0.04 MBd over short to moderate distances.
- Operates at a wavelength of 660 nm for compatibility with a range of fibre types.
- Compact round profile, measuring 7.62 mm high, 12.2 mm wide, and 18.3 mm long for space-efficient mounting.
- Features through hole mount and six-pin Versatile Link connector for secure board integration.
- RoHS and UL approved for demanding industrial, networking, and communication applications.
- Low 6 mA peak supply current supports energy-efficient operation.
- Provides high noise immunity for reliable data transfer in EMI-prone environments.
Product Description
The Broadcom HFBR-1523Z is a high-performance fibre optic transmitter designed for robust and efficient optical data communications in industrial, laboratory, and networking systems. Engineered with a 660 nm visible LED and Versatile Link connector, it is suitable for DC-coupled digital signal transmission, providing data rates up to 0.04 MBd for noise-immune communication over short to moderate distances. Its compact, round package facilitates space-efficient through hole mounting onto various PCB layouts.
This transmitter features a six-pin Versatile Link interface optimized for easy, secure board integration and compatibility with a broad range of fibre types and complementary receivers. The 7.62 mm height, 12.2 mm width, and 18.3 mm length offer a practical footprint for dense electronic assemblies.
The HFBR-1523Z is designed for enhanced digital links, supporting applications such as motor controller triggering, industrial automation, local area network interconnects, and noise-immune data transfer in audio/video equipment. Its 660 nm wavelength transmitter delivers clear optical signals, while high noise immunity and a low peak supply current of just 6 mA make this device both reliable and energy-efficient.
Approved for RoHS and UL standards, the device ensures compliance with stringent safety and environmental requirements. Forward voltage is specified at 2.02 V, and typical rise/fall times of 80 ns/40 ns support precise signal switching and timing in performance-critical systems.
Common use cases include secure industrial fieldbus links, electrically isolated data lines, EMI/RFI sensitive environments, and medical or instrumentation circuits requiring optical isolation. The transmitter is part of the HFBR-0500Z series, known for extended distance links up to 120 m at lower baud rates, horizontal/vertical mounting flexibility, and interlocking features for modular design.
Explore more Fibre Optic Transmitters and Broadcom optoelectronic solutions in the EnvMart electronics category for compatible receivers and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Broadcom HFBR-1523Z supports a maximum data rate of 0.04 MBd for optical data communications.
This model operates at a wavelength of 660 nm, making it compatible with a range of fibre types.
The dimensions of this unit are 7.62 mm in height, 12.2 mm in width, and 18.3 mm in length.
It features a six-pin Versatile Link connector for secure board integration.
The HFBR-1523Z has a low peak supply current of 6 mA, supporting energy-efficient operation.
This model is RoHS and UL approved, ensuring compliance with safety and environmental requirements.
The typical rise time is 80 ns and the fall time is 40 ns, enabling precise signal switching.
This transmitter is designed for through hole mounting, facilitating easy integration onto PCBs.
It is suitable for applications such as motor controller triggering, industrial automation, and noise-immune data transfer in audio/video equipment.
This model is part of the HFBR-0500Z series, which is known for extended distance links.
The forward voltage for the HFBR-1523Z is specified at 2.02 V.
