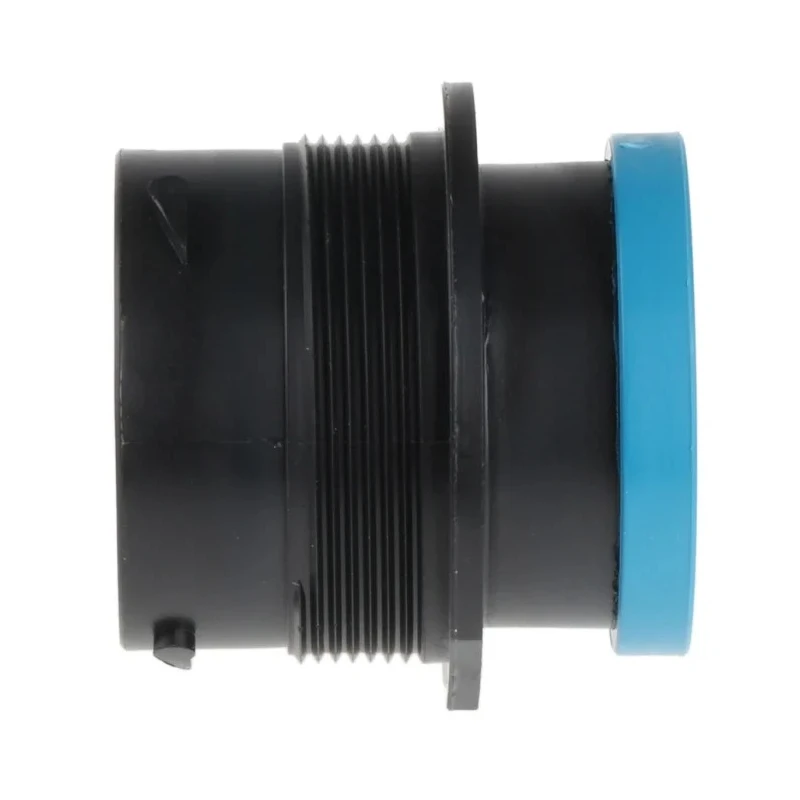

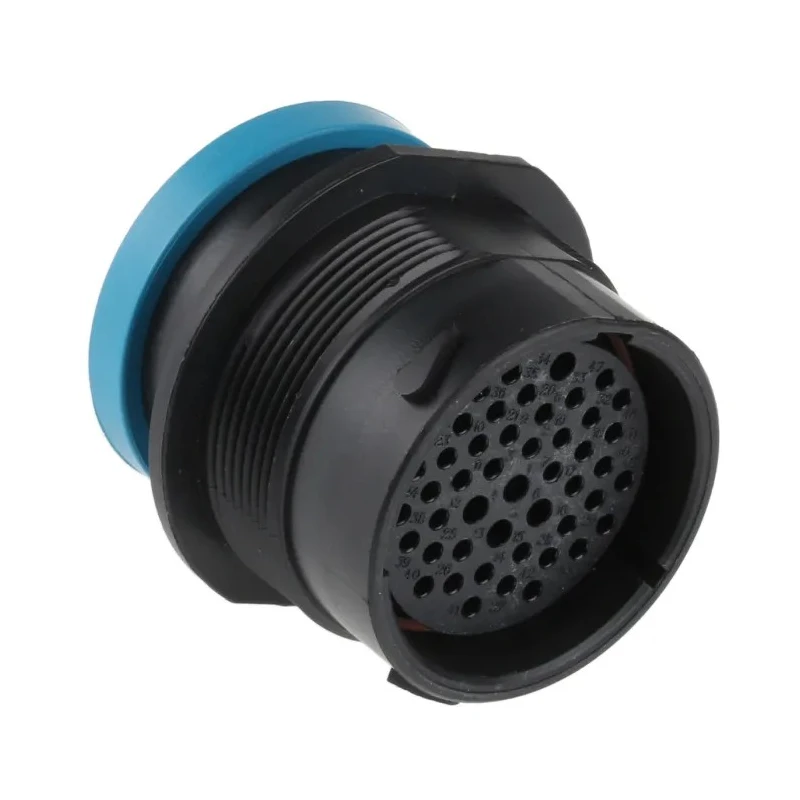

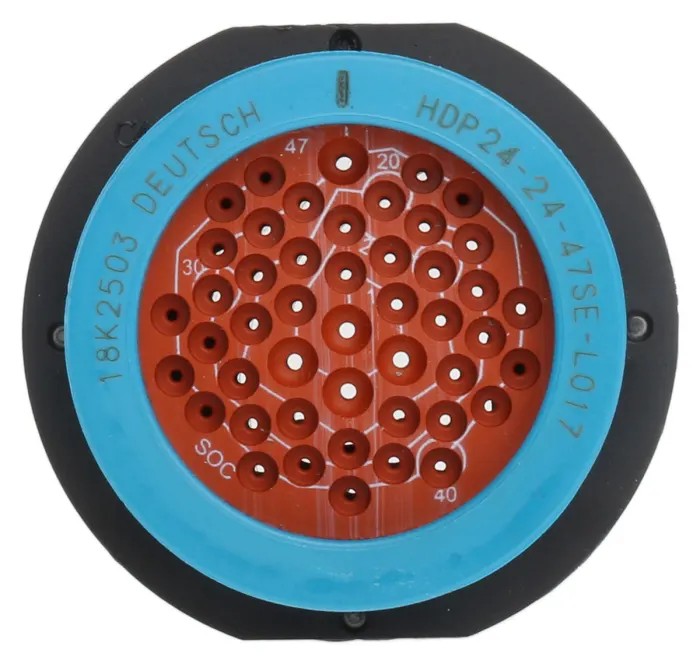

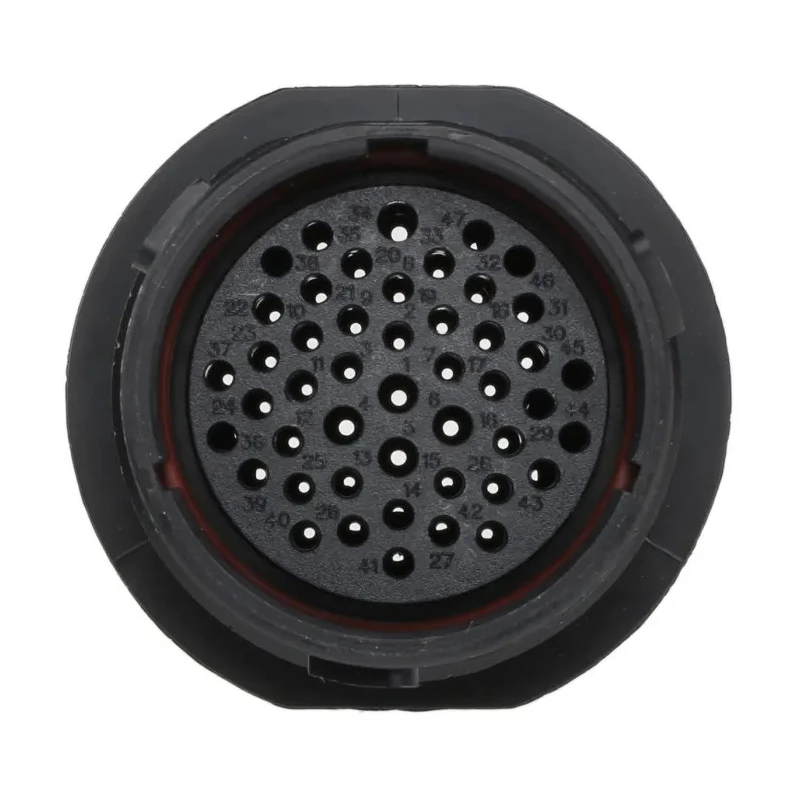

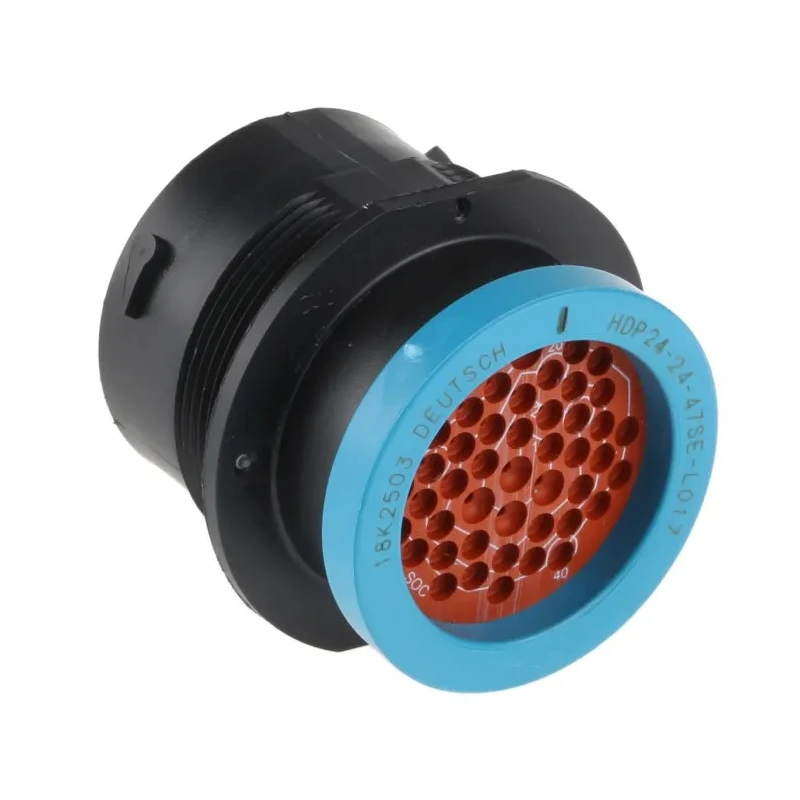

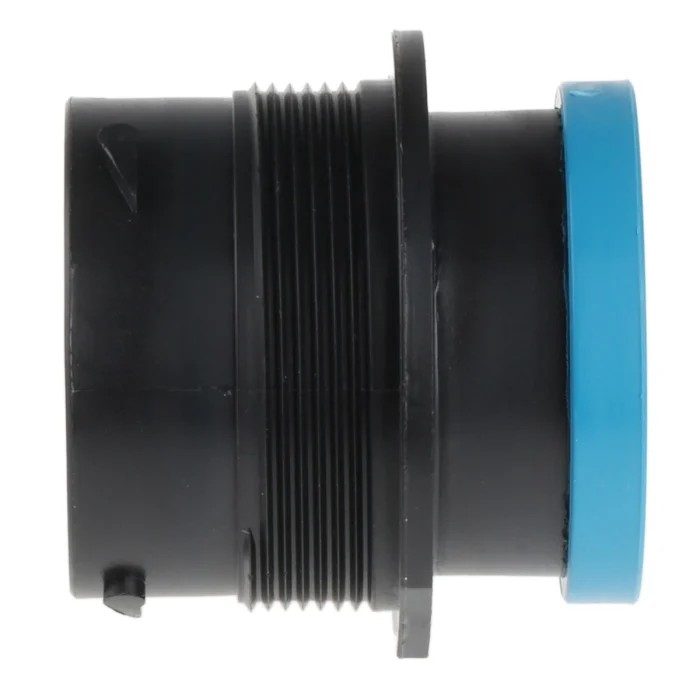

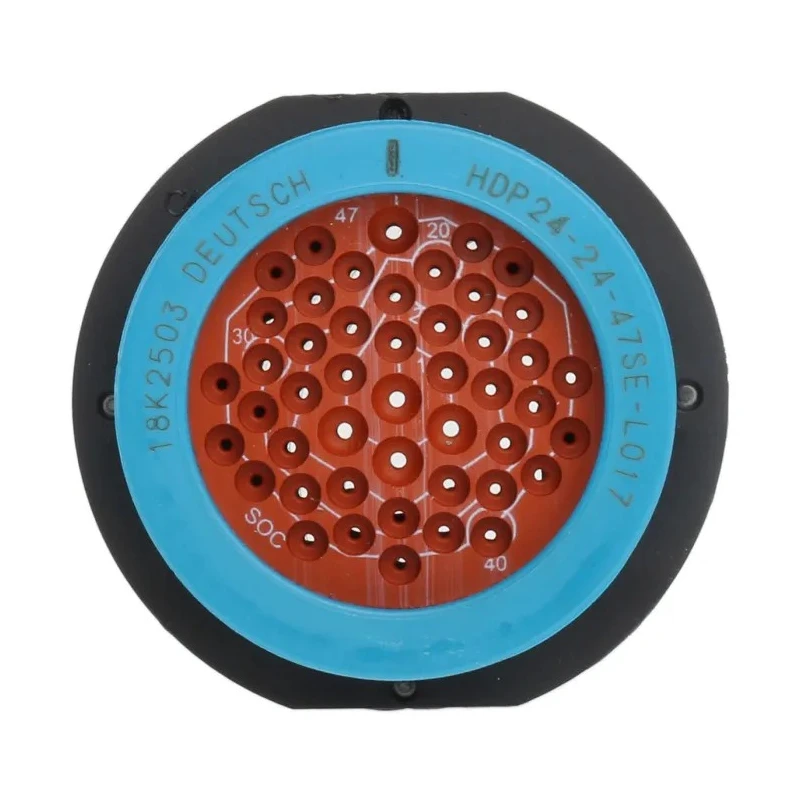

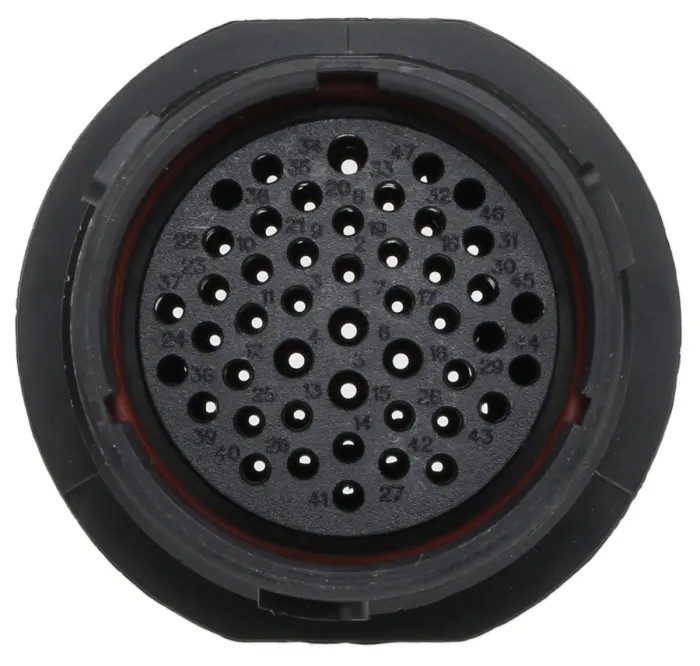

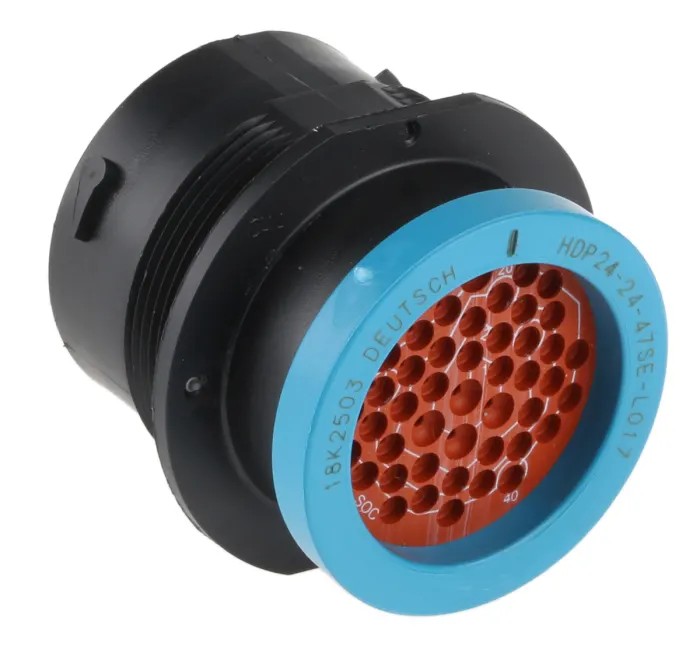

Deutsch Circular Connector, 47 Contacts, 1.59 mm Cable Socket, Female, IP67, HD20 Series, 13A, 250V HDP24-24-47SE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HDP24-24-47SE-L017 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 47 |
| Contact Plating | Nickel |
| Number of Contacts | 47 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Socket |
Key Features
- Offers 47 contacts for dense connectivity requirements.
- Rated for 13A current and 250V voltage ensuring reliable power transmission.
- Features bayonet mating type for secure industrial connections.
- IP67 protection suitable for demanding environments and outdoor use.
- Female socket orientation, cable mount with 1.59 mm connector size for flexible installation.
- Crimp termination and thermoplastic housing for durability.
- Supports operating temperatures from -55°C to 125°C.
- Vibration-proof design tested to 20g at 10 - 2000 Hz.
Product Description
The Deutsch HDP24-24-47SE-L017 is an industrial-grade multipole circular connector featuring 47 contacts, designed for reliable and high-density connectivity. Its female socket configuration and cable mount with a 1.59 mm connector size make it ideal for various signal and power applications across industrial and electronics environments.
This connector supports a robust 13A current rating and 250V voltage, making it suitable for transmitting power and signals in demanding setups. The bayonet mating mechanism provides secure and easy engagement, reducing maintenance time and risk of accidental disconnection during operation.
With an IP67 rating, the connector is protected against dust ingress and heavy immersion, making it appropriate for both indoor and outdoor installations. Its straight orientation and crimp termination allow for flexible wiring and integration into equipment, panels, or machinery.
The HDP24-24-47SE-L017 is part of the HD20 series and built with thermoplastic housing, ensuring long-term durability, mechanical resilience, and resistance against corrosion. It is vibration-proof, tested at 20g across 10 to 2000 Hz, and provides reliable performance in mobile and fixed installations alike.
Operating over a wide temperature range from -55°C to 125°C, this connector offers stability in environments with substantial thermal variation. The nickel-plated copper contacts deliver low electrical resistance and improved corrosion protection, while crimp-type termination ensures secure and stable connections.
Typical applications include industrial control cabinets, robotics, automation equipment, transport systems, outdoor machinery, and heavy-duty electrical setups. The HDP24-24-47SE-L017 supports up to 100 mating cycles minimum, confirming its longevity in high-use environments.
Industrial engineers, maintenance teams, and designers benefit from its reliable connectivity, versatile mounting, and robust sealing. Integration is simplified with the bayonet-style engagement and ready compatibility with Euro-style crimp tools and backshells.
Browse more Industrial Circular Connectors from Deutsch and comparable manufacturers in the Electronics Components category for advanced wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 13A and a voltage of 250V, making it suitable for reliable power transmission in various applications.
It has an IP67 rating, which means it is protected against dust ingress and can withstand heavy immersion in water, suitable for demanding environments.
This connector utilizes crimp termination, ensuring secure and stable connections for reliable performance in various setups.
It supports an operating temperature range from -55°C to 125°C, allowing it to function effectively in environments with significant thermal variation.

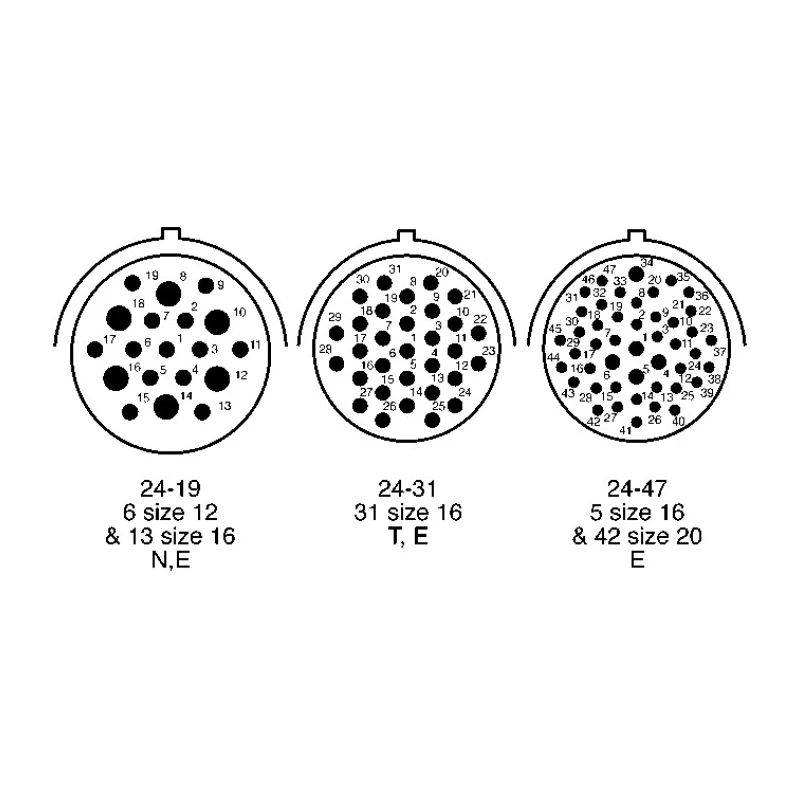

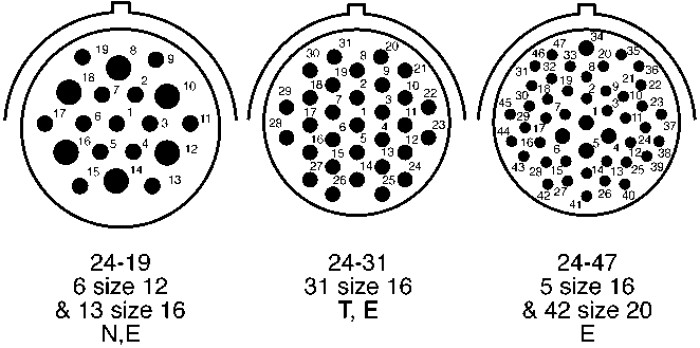

The Deutsch HDP24-24-47SE-L017 features 47 contacts, designed for high-density connectivity requirements.
It features a bayonet mating type, which provides secure engagement and reduces the risk of accidental disconnection during operation.
The housing is made of thermoplastic, and the contacts are composed of nickel-plated copper, providing durability and corrosion resistance.
This model has a connector size of 1.59 mm, suitable for flexible installation in various applications.
Typical applications include industrial control cabinets, robotics, automation equipment, transport systems, and outdoor machinery.
The shell size for this model is 24, which is part of its design specifications for compatibility with various equipment.
It is designed to support a minimum of 100 mating cycles, confirming its longevity in high-use environments.
The connector is manufactured in India, ensuring compliance with relevant industrial standards.
