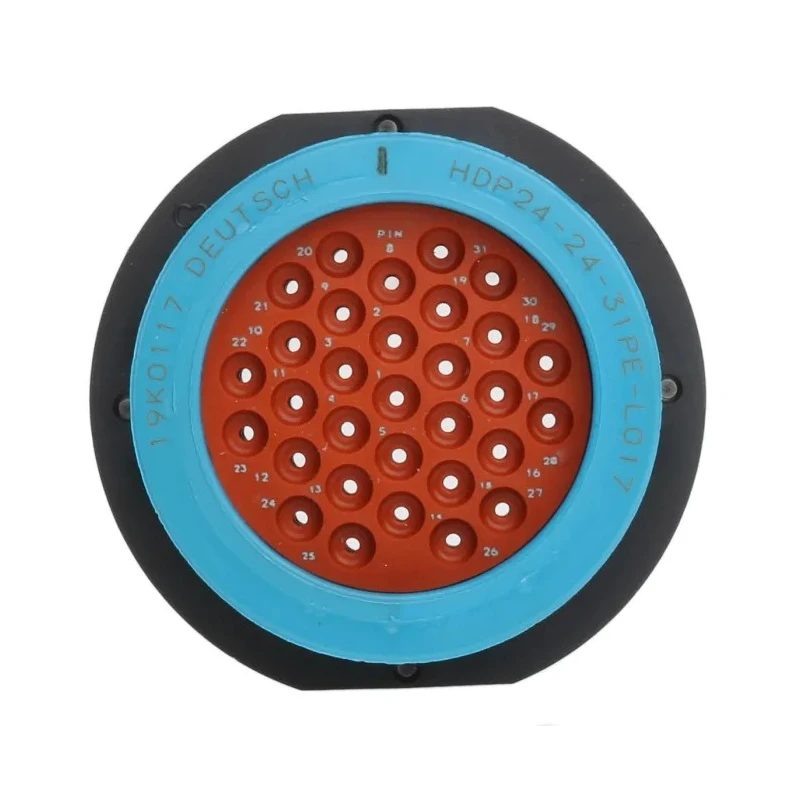

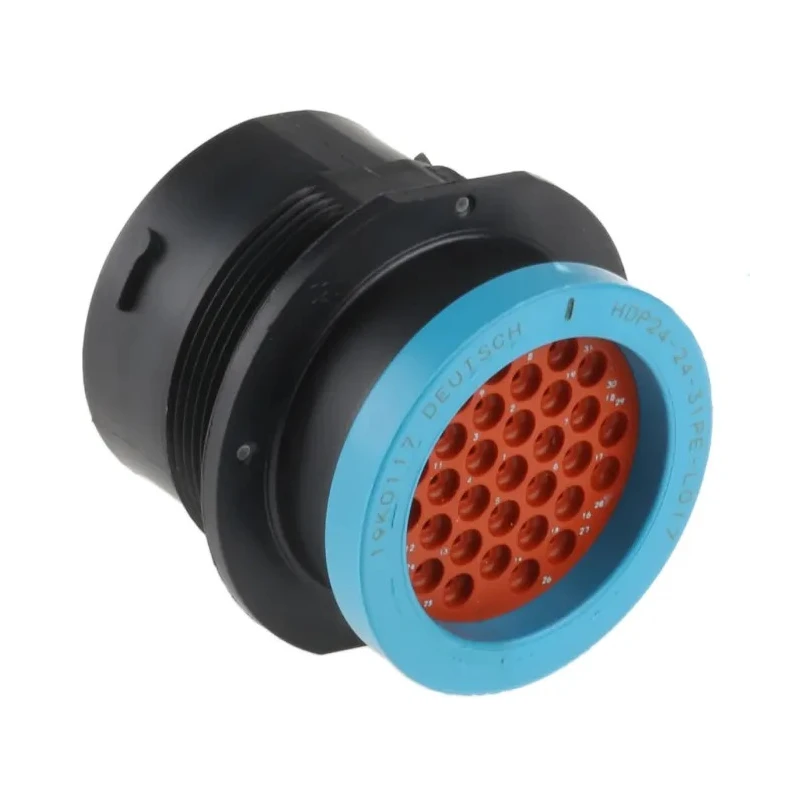

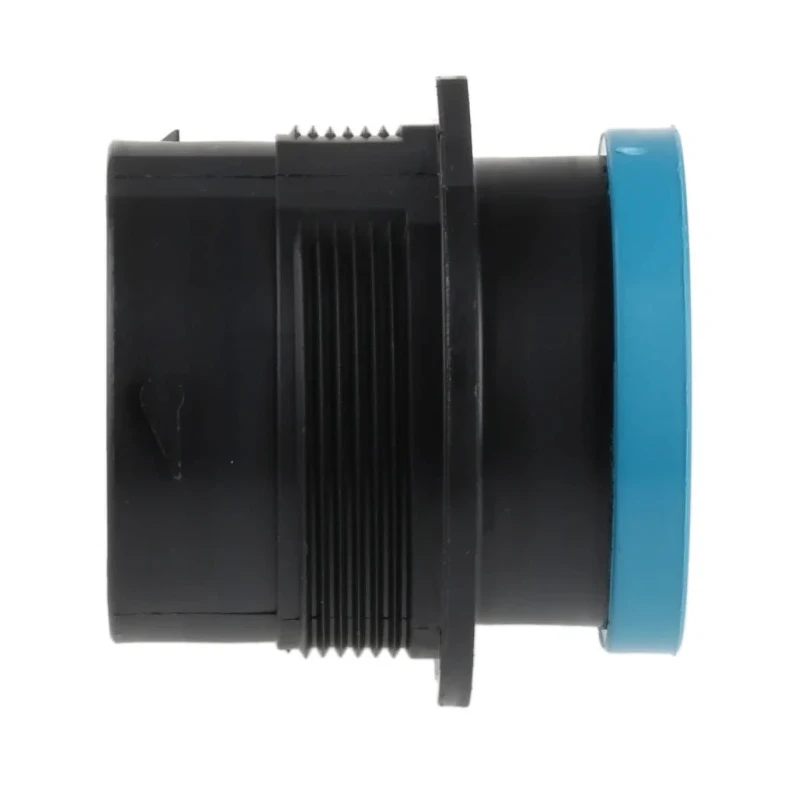

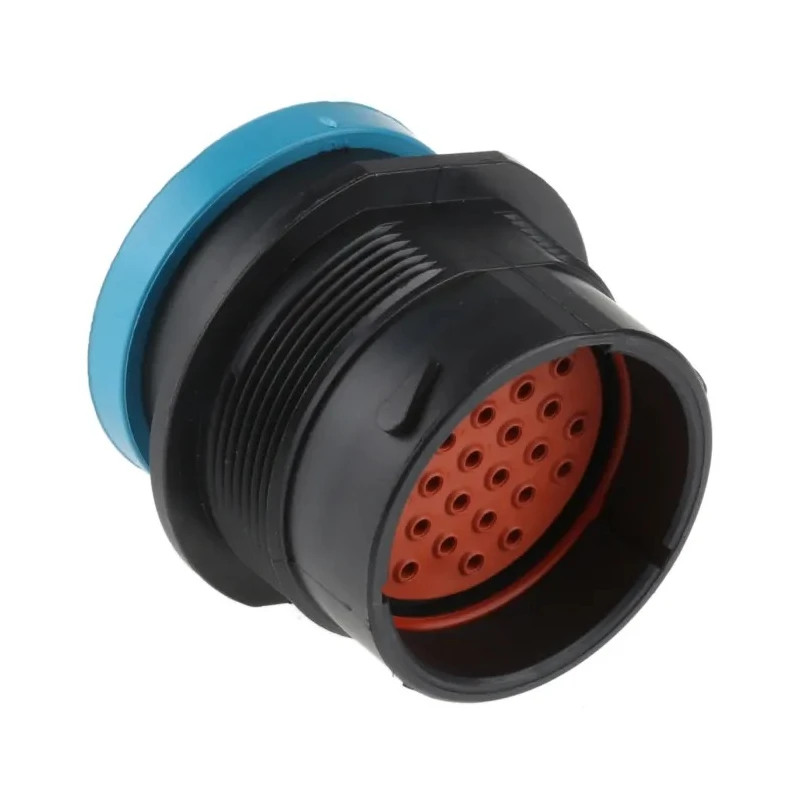

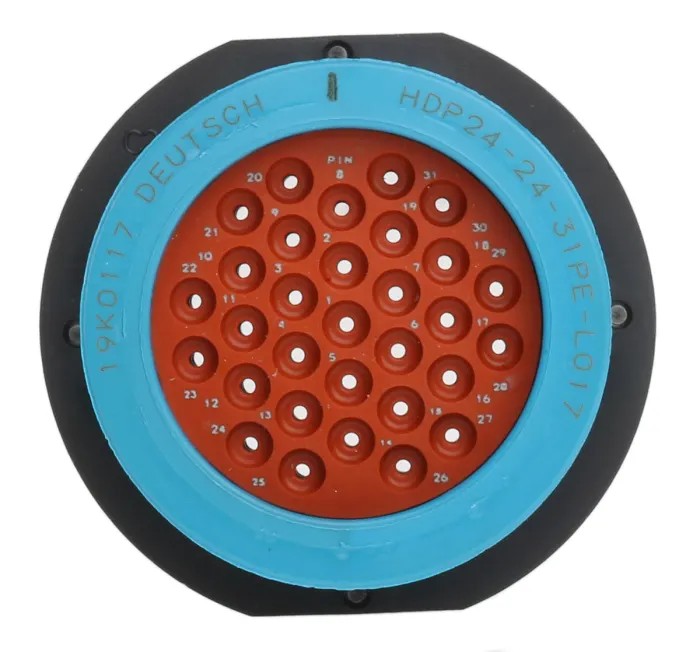

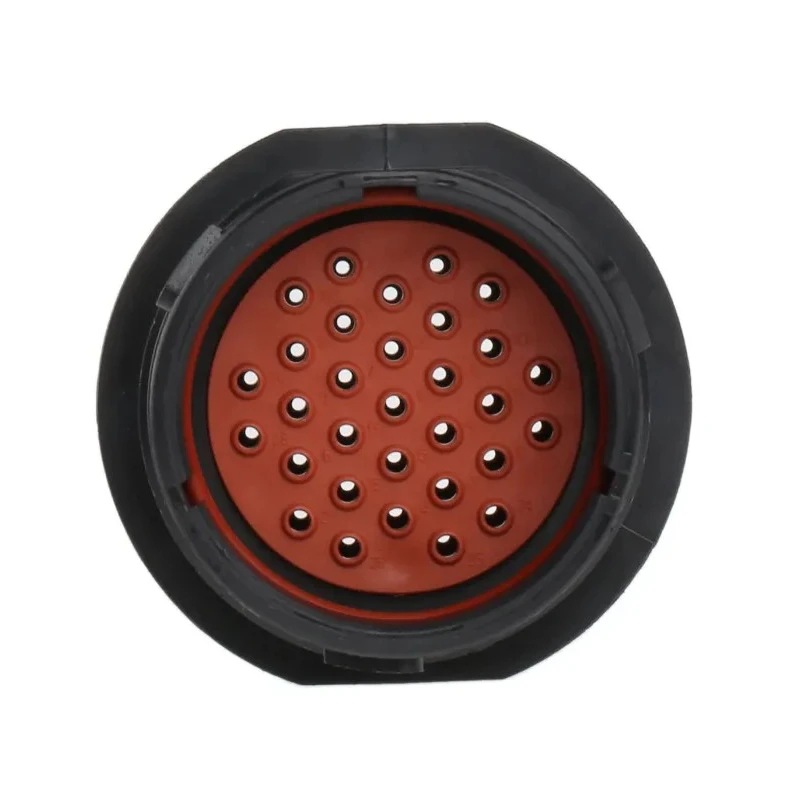

Deutsch 31-Contact Cable Circular Connector, Socket, Male, 1.59 mm, IP67, 13A, 250V, HD20 Series HDP24-24-31PE-L017

The Deutsch HDP24-24-31PE-L017 is a heavy-duty industrial circular connector designed for robust cable connections where reliability and environmental sealing are important. With its 31-contact configuration, this multipole connector provides secure electrical transmission for diverse applications ranging from industrial automation to off-highway machinery and transportation systems.

This model incorporates a cable-mount socket with male contact gender and is engineered to offer high-density wiring in a compact form. The 1.59 mm contact size allows for compatibility with a range of conductors, making it a flexible solution for complex wiring harnesses. The connector is rated at 13A per contact and supports system voltages up to 250V, which is suitable for both signal and power circuits.

The housing is constructed from durable thermoplastic, known for its resistance to impact, chemicals, and harsh environmental conditions. Contact materials use copper and are nickel-plated to enhance electrical conductivity and mitigate corrosion. The termination method is crimp, enabling consistent wire attachment and facilitating assembly in production environments.

Sealed to IP67, the HDP24-24-31PE-L017 prevents the ingress of dust and water, ensuring uninterrupted performance in demanding applications and adverse weather. It further boasts exceptional vibration resistance, qualified to withstand up to 20g at 10 - 2000 Hz, and corrosion resistance, passing salt spray tests for industrial-grade installations.

A bayonet locking mechanism offers a quick yet highly secure mating interface, minimizing accidental disconnections. The connector’s straight orientation, shell size 24, and pole format accommodate standard industrial wiring practices.

Typical use cases include heavy machinery, factory automation, construction equipment, off-road vehicles, and systems that demand robust connectors for high vibration, dust, or moisture-prone environments. The HDP20/HD20 series’ compatibility with different contact sizes and mounting accessories further extends application versatility.

This product is specifically designed for professional installations requiring high reliability over repeated mating cycles (minimum 100 cycles). The operating temperature range of - 55°C to 125°C enables deployment in both indoor and outdoor locations subject to thermal variability.
