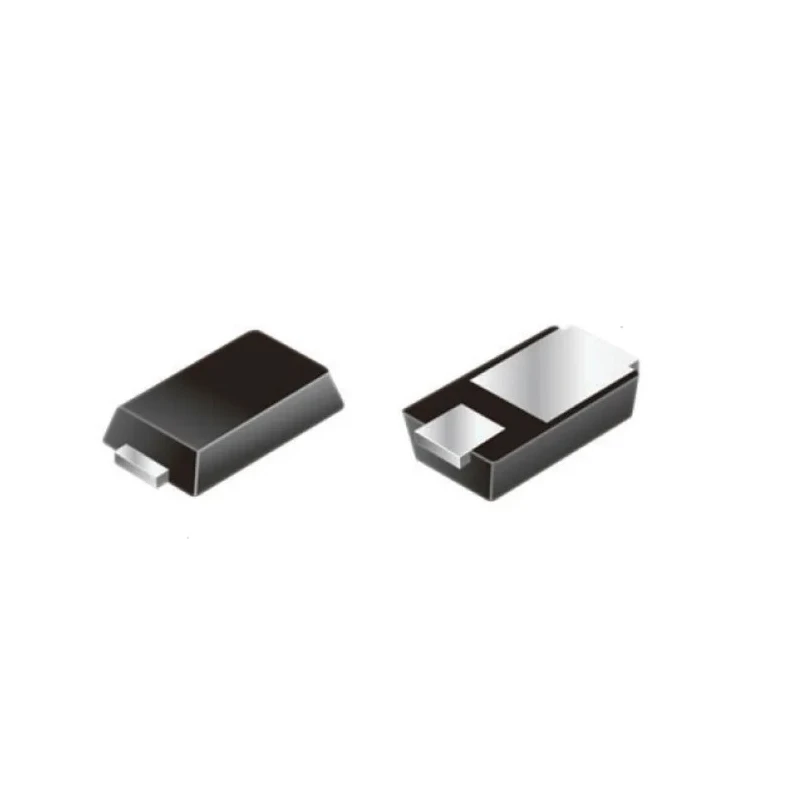

Vishay 100 V 1 A General Purpose Rectifier & Schottky Diode Surface Mount MicroSMP Package MSE1PBHM3/89A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | MSE1PBHM3/89A |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 150°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 0.92V |
Key Features
- Designed for polarity and rail-to-rail protection in consumer and automotive applications.
- Features a very low profile with a typical height of 0.65 mm.
- Low forward voltage drop of 0.92 V ensures efficient operation.
- Wide operating temperature range from -65°C to 150°C.
- Peak non-repetitive forward surge current capability of 20 A.
- Oxide planar chip junction for reliable performance.
- ESD capability and meets RoHS environmental compliance.
- Supports automated PCB placement due to surface mount design.
Product Description
Vishay MSE1PBHM3/89A is a Surface Mount Device (SMD) Schottky diode designed for general purpose rectification duties with a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 100 V. Its compact MicroSMP package makes it an ideal choice for use in space-constrained electronic circuits requiring efficient polarity and rail-to-rail protection.
The diode is built using an oxide planar chip junction technology, offering a very low forward voltage drop of 0.92 V which results in high energy efficiency and reduced heat dissipation. It is capable of withstanding high peak surge currents up to 20 A non-repetitively, making it robust under transient conditions.
This diode operates reliably across a wide temperature range from -65°C up to 150°C, suitable for demanding industrial, automotive, and consumer electronic applications. Additionally, it exhibits electrostatic discharge (ESD) tolerance and is compliant with RoHS standards, ensuring environmental safety and compatibility with modern manufacturing practices.
The low profile of approximately 0.65 mm thickness facilitates automated placement on printed circuit boards, improving production efficiency. It is suitable for use in power management circuits, polarity protection, and as a rectifier in switching power supplies or battery-powered equipment.
General purpose Schottky rectifier diode with 100 V reverse voltage rating. 1 A maximum continuous forward current in MicroSMP package. Low forward voltage drop of 0.92 V improves circuit efficiency. Wide operating temperature range from -65°C to 150°C for various environments.
Supports automated PCB assembly with compact surface mount design. ESD capability and RoHS compliant for industrial and automotive use.
This product is categorized under Schottky Diodes & Rectifiers in the Semiconductor section of Electronics & Electricals, providing reliable and efficient rectification for diverse industrial, laboratory, automotive, and electronic manufacturing applications.
Explore more Vishay semiconductor components and Schottky diode solutions in our extensive EnvMart catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay MSE1PBHM3/89A is 1 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The diode features a low forward voltage drop of 0.92 V, which enhances energy efficiency.
It operates reliably across a wide temperature range from -65°C to 150°C.
The diode can withstand a peak non-repetitive forward surge current of up to 20 A.
It is packaged in a compact MicroSMP package, which is suitable for surface mounting.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for general purpose rectification duties, polarity protection, and power management circuits.
It is built using oxide planar chip junction technology, which contributes to its performance.
The height of this model is approximately 0.65 mm, allowing for efficient automated PCB placement.
The Vishay MSE1PBHM3/89A has a single diode configuration.
The country of origin for this diode is India.
