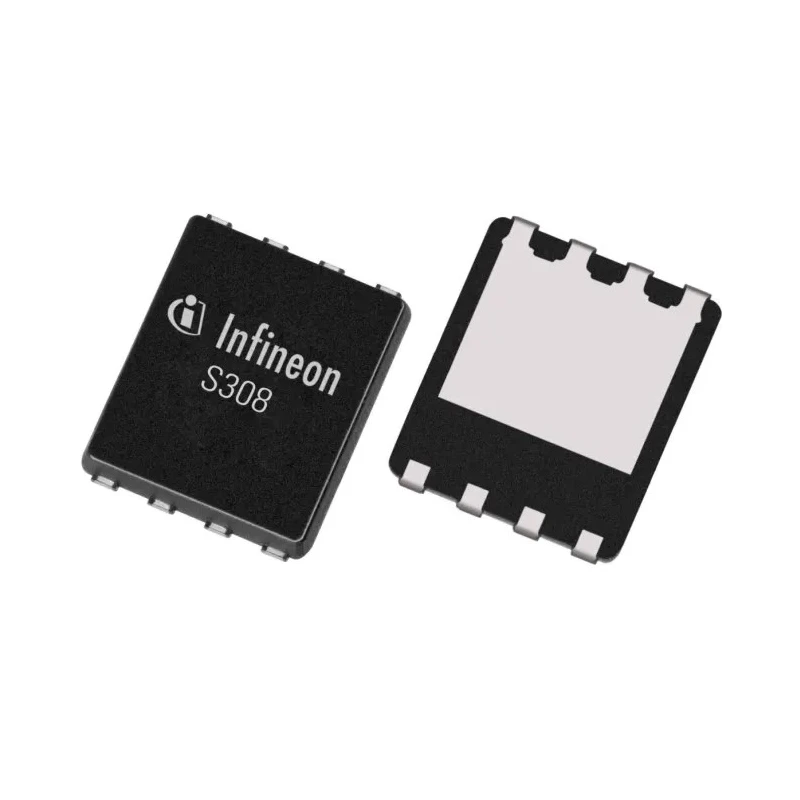

Infineon BSZ Type N-Channel MOSFET 212 A, 40 V, 8-Pin SuperSO8 Surface Mount BSZ040N06LS5ATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BSZ040N06LS5ATMA1 |
| Mount Type | Surface |
| Series | BSZ |
| Maximum Operating Temperature | 175°C |
| Package Type | SuperSO8 5 x 6 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 212A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 0.7mΩ |
| Channel Mode | N |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Has a very low on-resistance of 0.7 milliohm to reduce conduction losses during operation.
- Supports a continuous drain current of 212 amperes suitable for heavy current loads.
- Can dissipate up to 81 watts of power to manage thermal stresses in duty cycles.
- Features a forward voltage of 1 volt for improved efficiency in synchronous circuits.
- Typical gate charge is 80 nanocoulombs, enabling predictable switching behaviour.
- Maximum gate-to-source voltage is 20 volts to protect the gate from excessive stress.
- Operates reliably across an extended temperature range from -55°C to 175°C.
- Comes in a compact and surface-mount SuperSO8 5 x 6 package with 8 pins for efficient PCB mounting.
Product Description
Infineon BSZ040N06LS5ATMA1 is a BSZ Series N-channel MOSFET designed for high-current power conversion and switching applications. This MOSFET supports a continuous drain current of 212 A with a maximum drain-source voltage of 40 V, making it ideal for industrial and commercial power electronics where efficiency, thermal stability, and compact design are critical.
The device features a low on-resistance of 0.7 milliohm, minimizing conduction losses and allowing for efficient energy transfer. It exhibits a maximum power dissipation rating of 81 watts, which helps it handle the thermal stress generated in high-duty cycle operations without degradation.
This MOSFET uses an 8-pin SuperSO8 5 x 6 surface-mount package, enabling easy mounting on printed circuit boards for space-constrained environments. Its typical gate charge of 80 nanocoulombs and maximum gate-source voltage of 20 volts ensure predictable and safe switching behavior, helping prevent damage from voltage spikes.
Operating temperature ranges from -55°C to 175°C, making it suitable for harsh industrial environments including automotive power stages, server power distribution units, and synchronous DC-DC converters. Additionally, Infineon's compliance with RoHS standards confirms its environmental safety.
Low Rds(on) of 0.7mΩ for minimized conduction losses. High continuous drain current rating of 212 A for heavy load handling. Maximum power dissipation of 81 W manages thermal challenges effectively. Forward voltage of 1 V enhances synchronous circuit efficiency.
Typical gate charge of 80 nC supports reliable switching. 20 V gate-source voltage rating protects against gate stress. Wide operating temperature range from -55°C to 175°C for robustness. Compact 8-pin SuperSO8 5 x 6 surface mount packaging for space savings.
RoHS compliant ensuring environmental safety.
This MOSFET is widely used in industrial power conversion modules, motor-drive stages, and server power distribution units where high efficiency and reliability are paramount. Its surface-mount construction facilitates assembly in automated processes, contributing to reduced manufacturing costs and enhanced system compactness.
Explore the full range of MOSFET products on EnvMart for reliable industrial semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 212 amperes, making it suitable for heavy current loads.
This MOSFET has a maximum drain-source voltage of 40 volts.
It features a low on-resistance of 0.7 milliohm, which helps minimize conduction losses during operation.
The maximum power dissipation for this MOSFET is 81 watts, allowing it to manage thermal stresses effectively.
The typical gate charge for this model is 80 nanocoulombs, supporting predictable switching behavior.
The maximum gate-to-source voltage is 20 volts, which protects the gate from excessive stress.
It operates reliably across an extended temperature range from -55°C to 175°C, suitable for harsh environments.
This model comes in a compact 8-pin SuperSO8 5 x 6 surface-mount package for efficient PCB mounting.
Yes, this MOSFET is RoHS compliant, ensuring its environmental safety.
This MOSFET is widely used in industrial power conversion modules, motor-drive stages, and server power distribution units.
The forward voltage of 1 volt improves efficiency in synchronous circuits, contributing to better overall performance.
The BSZ040N06LS5ATMA1 has a pin count of 8, which is typical for its surface-mount design.
